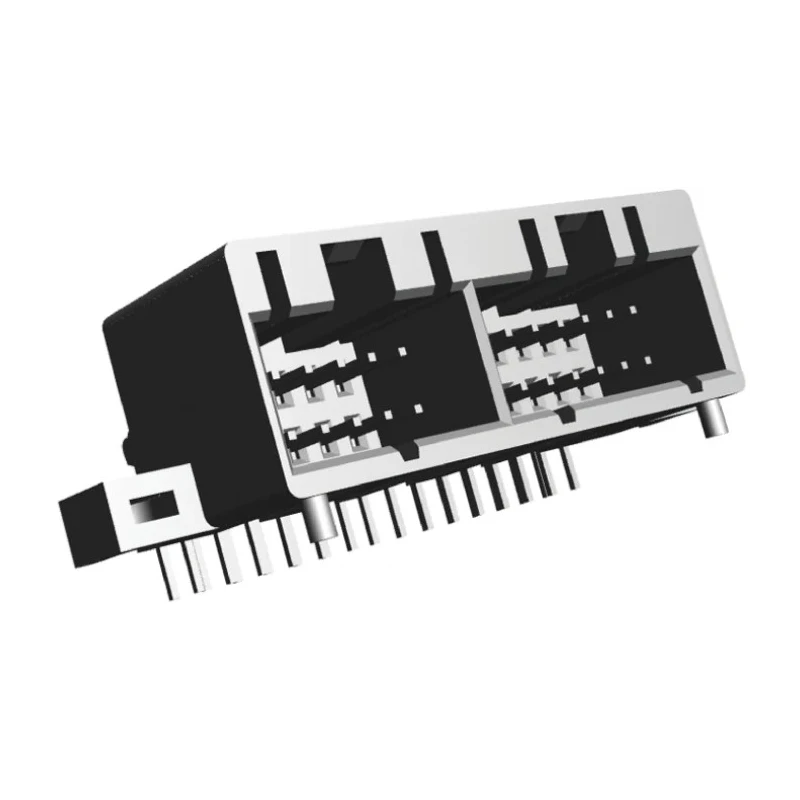

TE Connectivity Dual Line Interlock Series Right Angle Through Hole PCB Header 28 Contacts 3 mm Pitch 172241-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 5A |
| Model | 172241-1 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Dual Line Interlock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Standards/Approvals | UL94 V-0 |
| Contact Plating | Tin |
| Number of Contacts | 28 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Right Angle |
| Tail Pin Length | 4mm |
| Mating Pin Length | 8.51mm |
| Row Pitch | 4.6mm |
Key Features
- Supports a current rating of 5A ensuring efficient electrical performance.
- Features a nylon housing providing durable insulation and mechanical strength.
- Mount type is through hole with right-angle orientation for PCB mounting flexibility.
- Contact material is brass with tin plating for excellent conductivity and corrosion resistance.
- Shrouded design enhances safety and prevents accidental contact.
- Operating temperature range from -65°C to 105°C suitable for varied environments.
- Termination type is solder ensuring reliable electrical connections.
- 28 contact positions arranged in 2 rows with 4.6 mm row pitch for compact layout.
Product Description
TE Connectivity 172241-1 Dual Line Interlock Series Right Angle Through Hole PCB Header is engineered for reliable electronic interconnections with a compact 3 mm pitch and 28 contact points arranged in two rows. Designed with a shrouded right-angle orientation, this PCB header ensures secure and safe mounting on printed circuit boards.
The housing is made from durable nylon material offering enhanced mechanical strength and insulation. Brass contacts plated with tin provide excellent electrical conductivity while protecting against corrosion. The header features through-hole mounting with solder termination, facilitating robust assembly in various industrial electronics, HVAC, telecommunications, and manufacturing equipment.
Operating efficiently at currents up to 5A and voltages up to 350V, this component is designed to withstand temperature extremes from -65°C to 105°C, making it suitable for demanding environments. The row pitch of 4.6 mm allows a compact footprint while maintaining reliable contact spacing to reduce cross-talk and increase signal integrity.
Current rating up to 5A ensuring stable power handling. Nylon housing for mechanical resilience and electrical insulation. Through hole mounting and solder termination for secure PCB connection. Shrouded, right-angle design for enhanced safety and space optimization.
28 contacts arranged in two rows for versatile circuit connections. Contact material brass with tin plating assures conductivity and durability. Wide operating temperature range of -65°C to 105°C. Voltage rating of 350V for multiple industrial applications.
UL94 V-0 standard compliant for flame retardancy. Compact 3 mm pitch and 4.6 mm row pitch spacing.
This PCB header from TE Connectivity is ideal for industrial, electronics manufacturing, telecommunications, HVAC controls, and commercial equipment applications. Its robust construction and reliable electrical properties ensure long-term system performance.
Explore more high-quality connectors and electronic components to support your design and manufacturing needs at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 5A, ensuring efficient electrical performance.
The voltage rating for this PCB header is 350V, making it suitable for various industrial applications.
The housing is made from nylon, while the contacts are brass with tin plating for excellent conductivity and corrosion resistance.
This unit features a compact 3 mm pitch with 28 contact positions arranged in 2 rows, with a row pitch of 4.6 mm.
It operates effectively within a temperature range of -65°C to 105°C, suitable for varied environments.
The termination type for this model is solder, ensuring reliable electrical connections during assembly.
This header has a right-angle orientation, allowing for flexible PCB mounting.
Yes, it features a shrouded design that enhances safety and prevents accidental contact.
It complies with the UL94 V-0 standard for flame retardancy, ensuring safety in applications.
The tail pin length is 4 mm, which is suitable for through-hole mounting.
This model is ideal for use in industrial electronics, HVAC, telecommunications, and manufacturing equipment.
This PCB header has a total of 28 contacts, arranged in two rows for versatile circuit connections.
