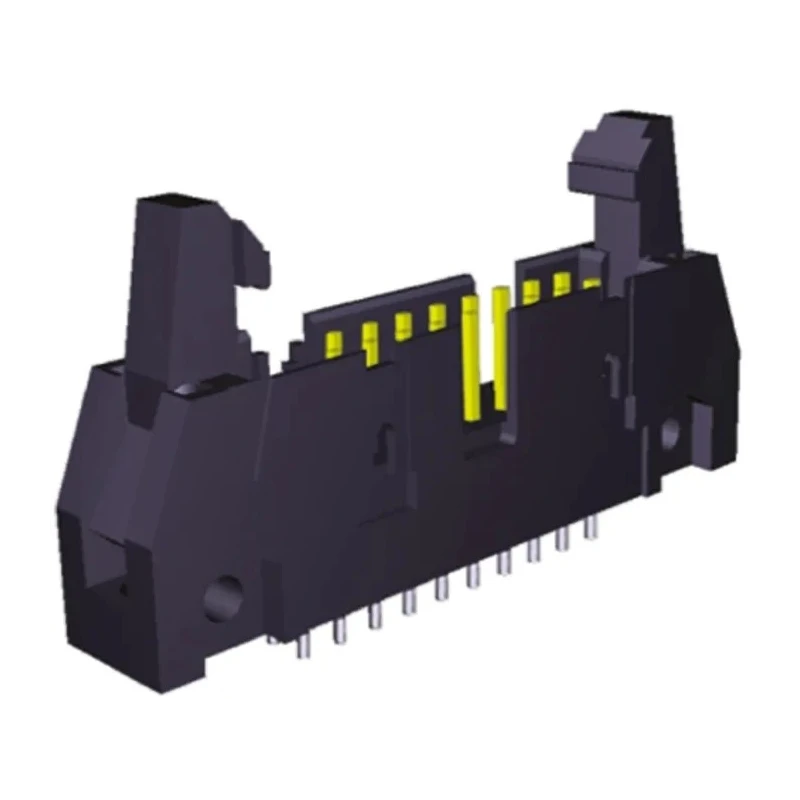

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded 5499910-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features AMP-LATCH series with universal ejection style for accurate and secure mating.
- Contains 20 male contacts arranged in 2 rows with 2.54 mm pitch spacing.
- Constructed with thermoplastic housing and brass contacts plated with gold for reliability.
- Designed for a current rating of 1A and operating voltage of 250V.
- Supports operation in temperature range from -65°C to 105°C.
- Through hole mount with solder termination ensures secure PCB attachment.
- Shrouded design with ejector latches for polarity and easy cable disconnection.
- Suitable for industrial, electronic, networking, medical, and testing equipment.
Product Description
TE Connectivity 5499910-4 AMP-LATCH Series PCB Header is a 20 contact, 2-row straight through hole connector with a 2.54 mm pitch, engineered for wire-to-board applications with reliable and secure connections.
This series features a universal ejection style with military, center, and dual polarization to guarantee precise and secure mating. The shrouded design prevents incorrect connections while the ejector latches simplify removal from mating IDC ribbon cable receptacles.
The connector includes 20 male brass contacts with gold plating to enhance conductivity and resist corrosion. Its housing is made from durable thermoplastic material, allowing operation across a wide temperature range from -65°C to 105°C, making it suitable for harsh industrial environments.
Rated for 1A current and 250V voltage, this PCB header uses solder termination in a through hole mount configuration, providing a robust and enduring electrical and mechanical connection to the PCB.
Applications for this AMP-LATCH PCB header are diverse, including usage in personal computers, business and medical equipment, storage devices, networking systems, industrial control equipment, household appliances, and electrical testing apparatus.
Features AMP-LATCH series with universal ejection style for accurate and secure mating. Contains 20 male contacts arranged in 2 rows with 2.54 mm pitch spacing. Constructed with thermoplastic housing and brass contacts plated with gold for reliability.
Designed for a current rating of 1A and operating voltage of 250V. Supports operation in temperature range from -65°C to 105°C. Through hole mount with solder termination ensures secure PCB attachment. Shrouded design with ejector latches for polarity and easy cable disconnection.
Suitable for industrial, electronic, networking, medical, and testing equipment.
The product is part of EnvMart's comprehensive category of PCB Headers for electronic components, providing assured quality and compatibility standards. Users can explore more connectors and related PCB hardware in this category for their industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for a current rating of 1A.
It is rated for an operating voltage of 250V.
The contacts are arranged with a pitch spacing of 2.54 mm.
This unit contains 20 male contacts arranged in 2 rows.
It features a thermoplastic housing and brass contacts plated with gold.
It supports operation in a temperature range from -65°C to 105°C.
It uses a through hole mount with solder termination for secure PCB attachment.
The shrouded design helps prevent incorrect connections while providing easy cable disconnection with ejector latches.
It is suitable for use in industrial, electronic, networking, medical, and testing equipment.
The orientation of this model is straight.
It is part of a wire-to-board connector system.
The country of origin for this PCB header is India.
