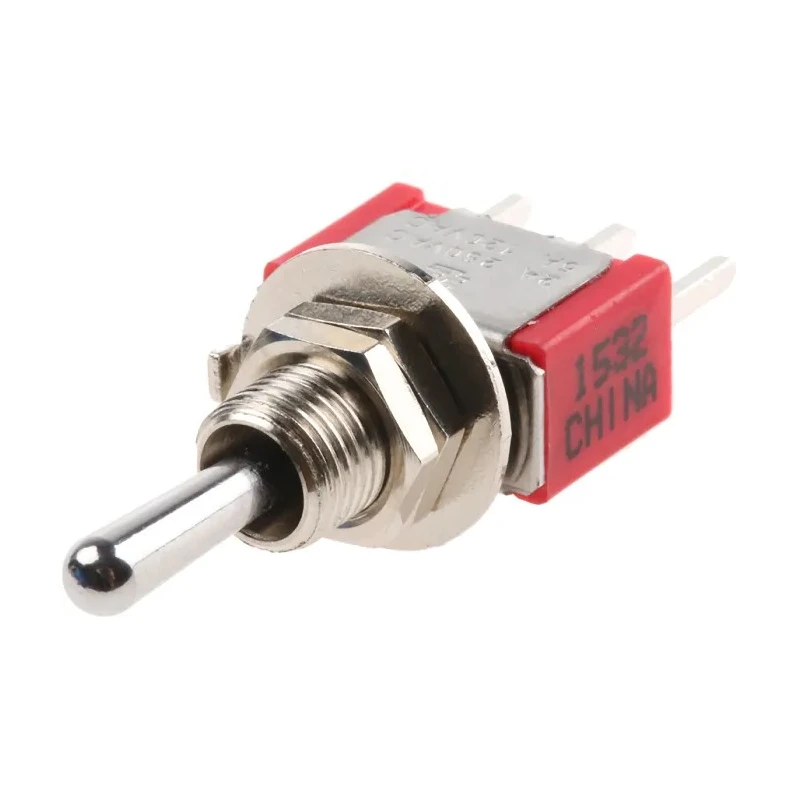

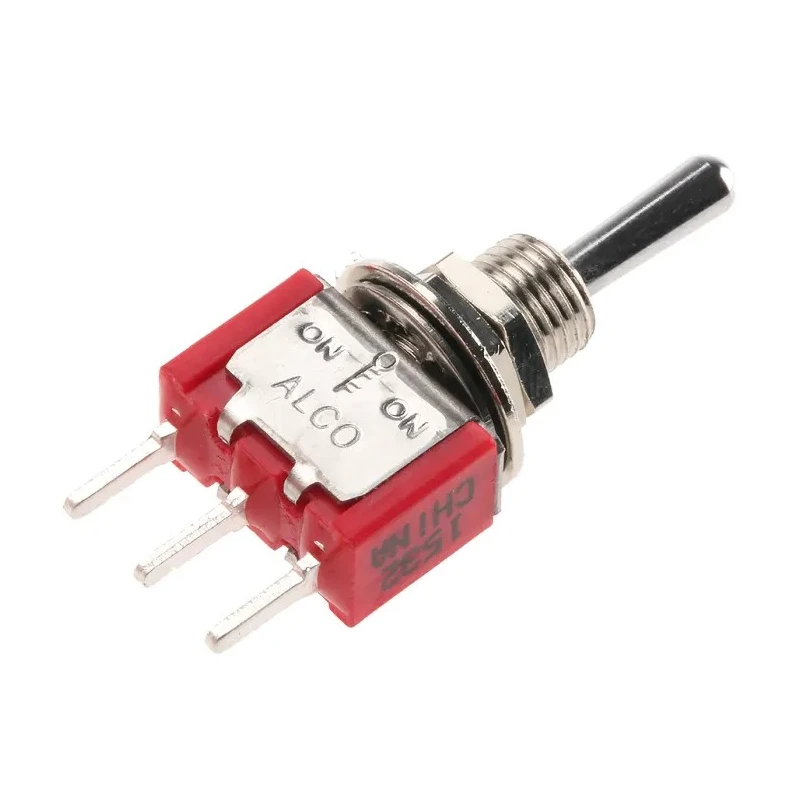

TE Connectivity Gemini A Series Toggle Switch PCB Mount On-Off-On SPDT 5A Solder Terminal 28V DC 115V AC 1-1825137-6

TE Connectivity 1-1825137-6 toggle switch from the Gemini A Series is a high-quality PCB mount SPDT switch with an On-Off-On operation designed for industrial and electronic applications. It supports both 28V DC and 115V AC voltages, accommodating a current rating of 5A for reliable performance.

This toggle switch features epoxy sealed terminals, offering strong protection against contaminants and ensuring durability in demanding environments. The stainless steel frame paired with brass tin plated solder supports enhances mechanical strength and solderability for PCB mounting.

The nickel actuator material provides excellent resilience and a firm tactile feel during operation. The panel cutout size is 6.35 mm wide, with actuator length of 10.41 mm for ergonomic use. The IP67 rating certifies the switch’s resistance against dust ingress and water, making it suitable for harsh industrial conditions.

Designed to operate within a wide temperature range from -30°C to 85°C, this switch ensures consistent functioning in varied environments. Its compact dimensions of 0.35 inch height, 0.5 inch length, and 0.27 inch width afford it versatility for dense PCB layouts. The switch is non-illuminated and meets RoHS compliance for environmental and safety standards.

Key features include break before make contact timing for safe switching with minimal contact damage. The Gemini A Series toggle switch is extensively used in electrical automation, material handling, HVAC controls, instrumentation, and manufacturing equipment requiring reliable manual switching operations.

Epoxy sealed terminals enhance environmental protection and switch longevity. Stainless steel frame with brass tin plated solder support for robust mounting. Nickel actuator assures durability and smooth toggling action.

6.35 mm panel cutout size for standard PCB applications. IP67 rated dust and waterproof design for harsh industrial usage. Operates from -30°C to 85°C for wide temperature tolerance. Compact size suitable for high-density PCB assemblies.

Non-illuminated design for general-use switching. RoHS compliant to meet environmental regulations. Break before make contact timing for enhanced switching safety.

This TE Connectivity Toggle Switch provides a dependable solution for industrial, laboratory, electrical automation, and commercial electronic device control applications. It combines rugged construction with precise operational specifications to assure high product reliability on printed circuit boards.
