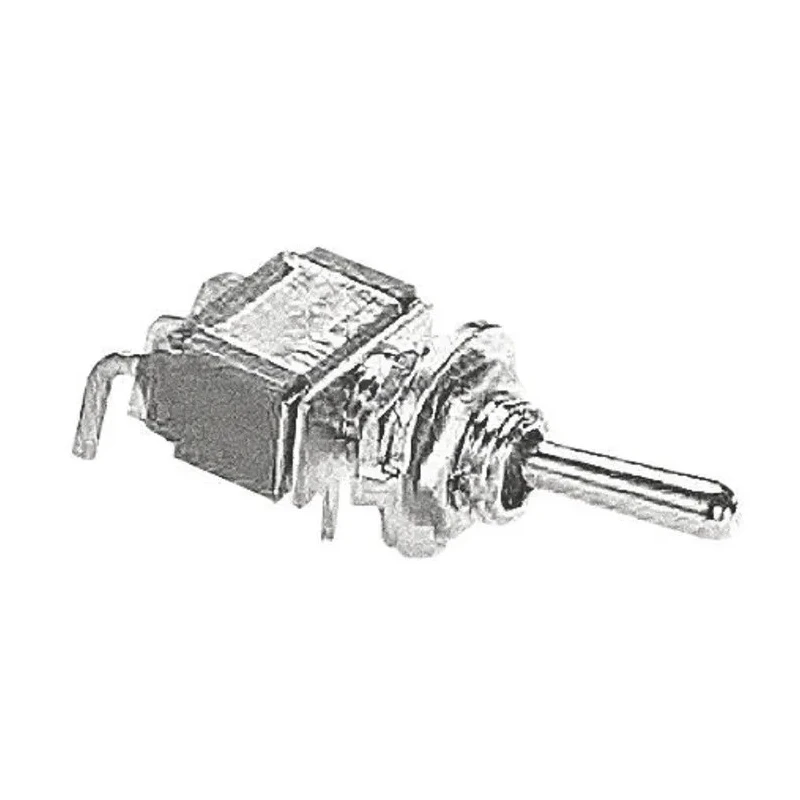

TE Connectivity Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 28 V dc 120 V ac 2-1825138-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- DPDT contact configuration ensures double pole double throw switching functionality.
- Switch operation type is On-On providing stable alternate switching positions.
- Mount type is PCB suitable for printed circuit board installation.
- Pressed stainless steel frame with epoxy sealed terminals provides durability and corrosion resistance.
- Rated for 5 amp switch contact current suitable for moderate load applications.
- Has an IP67 rating indicating high resistance to dust ingress and water immersion protection.
- Actuator is phenolic material measuring 10.41 mm in length for reliable manual toggling.
- Panel cutout size of 6.35 mm fits standard mounting requirements.
Product Description
TE Connectivity 2-1825138-3 Toggle Switch is a high-quality electrical switch designed for PCB mounting applications. Featuring a DPDT (Double Pole Double Throw) contact configuration with On-On switch operation, this toggle switch provides reliable alternate switching between two circuits.
Rated for 28 V DC and 120 V AC voltages with a switch contact current of 5 amperes, it suits a variety of industrial and electronic use cases requiring durable and compact switching solutions.
The switch incorporates a stainless steel frame with brass tin plated solder support terminals that are epoxy sealed, ensuring excellent protection against environmental factors. Its IP67 rating confirms resistance to dust and water ingress, making it suitable for rugged and demanding environments.
The actuator is fabricated from phenolic material with a length of 10.41 mm, designed for precise tactile feedback and ergonomic operation. The panel cutout size is 6.35 mm, which aligns with common PCB design standards.
Operating reliably in temperature conditions ranging from -30°C to a maximum of 85°C, this toggle switch meets a broad spectrum of application demands, including industrial automation, electronic control panels, instrumentation, and HVAC systems.
DPDT double pole double throw contact configuration. On-On switch operation providing alternate stable states. PCB mount with through hole terminals for secure solder connections. IP67 rated for dust tightness and water immersion protection.
Phenolic material actuator optimized for durability and ease of use. Mechanical life expectancy of 6000 cycles ensuring long-term reliability.
This switch is RoHS compliant and is an ideal component for electrical, electronic, and industrial equipment requiring dependable manual switching. Its robust construction and precise specifications ensure effective integration in control mechanisms and circuit design.
Explore more quality Toggle Switches and related electronic components in EnvMart's Electronics & Electricals category for seamless sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for alternate switching between two circuits.
It has an IP67 rating, indicating high resistance to dust ingress and protection against water immersion.
This switch is rated for 28 V DC and 120 V AC, making it suitable for a variety of applications.
The maximum operating temperature for this toggle switch is 85°C.
The panel cutout size required is 6.35 mm, which fits standard mounting requirements.
The actuator is made of phenolic material and measures 10.41 mm in length.
The mechanical life expectancy of this switch is rated at 6000 cycles.
The switch contact current rating is 5 amperes, suitable for moderate load applications.
This model is designed for PCB mounting with through hole terminals for secure solder connections.
It is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
The minimum operating temperature for this toggle switch is -30°C.
This toggle switch is suitable for various applications including industrial automation, electronic control panels, instrumentation, and HVAC systems.
