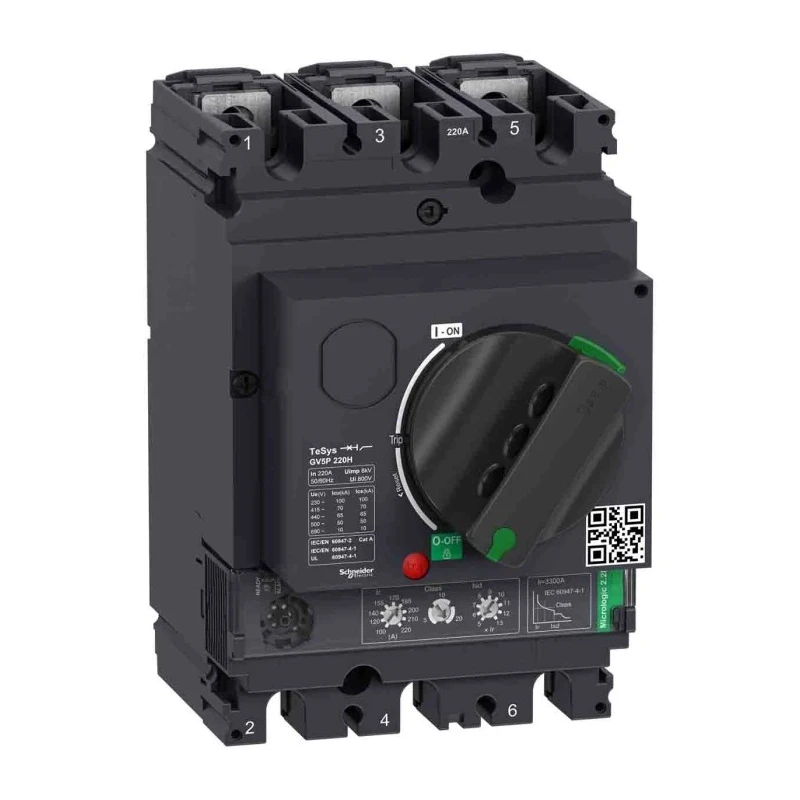

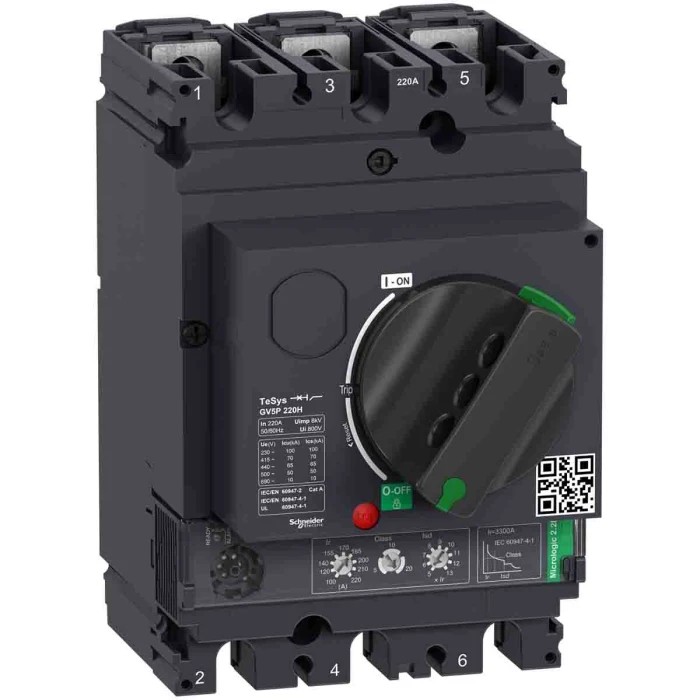

Schneider Electric TeSys GV5P Miniature Circuit Breaker 3-Pole 220A 70 kA Breaking Capacity

Schneider Electric GV5P220H Miniature Circuit Breaker is a robust 3-pole motor protection circuit breaker designed for demanding industrial and commercial applications requiring reliable overload, short circuit, and phase fault protection. Featuring a 220A current rating and a high breaking capacity of 70 kA, this motor circuit breaker integrates thermal magnetic tripping to guard motors effectively.

The breaker mounts easily on a DIN rail, facilitating quick installation and maintenance. It supports advanced adjustable protections, including overload settings adjustable from 50% to 100% rated current with selectable trip classes (Class 5, 10, or 20), and short-time protection thresholds adjustable from 5 to 13 times the rated current. The device also incorporates instantaneous short-circuit protection with a maximum trip rating of 15 times the rated current.

Equipped with front LED indicators, a green LED signals a pre-alarm condition before fault occurrence, while a red LED indicates motor operation status, aiding monitoring and diagnostics. The unit complies with multiple international standards such as EN IEC 60947-1, EN IEC 60947-2, EN IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 60947-4-1, ensuring interoperability and safety in global markets.

Designed with an IP20 rated enclosure, the breaker offers protection against finger access and solid objects larger than 12mm, suitable for indoor electrical panel installation. With compact dimensions of 161 mm width, 105 mm height, and 161 mm depth, it is space-efficient for control panels in various sectors including industrial plants, utilities, commercial buildings, oil and gas, water treatment, and infrastructure projects.

The GV5P220H is part of Schneider Electric's TeSys Giga range of motor circuit breakers, offering coordinated protection with contactors and advanced electronic and electromechanical technologies. Its direct rotary handle enables reliable isolation as per IEC standards, supporting safe maintenance practices.

Thermal magnetic tripping mechanism ensures motor overload and short circuit protection. DIN rail mounting for secure and easy installation. Adjustable overload and short-time protection thresholds for precise motor protection tuning.

High breaking capacity code H rating for safe fault interruption up to 70 kA. Compliant with multiple international safety and performance standards. LED indicators for status and pre-alarm notifications. Compact form factor with IP20 enclosure suitable for industrial use.

Ideal for use in sectors such as manufacturing, infrastructure, utilities, and commercial buildings. Explore the broad range of Schneider Electric circuit breakers on EnvMart for dependable industrial and commercial electrical protection solutions.
