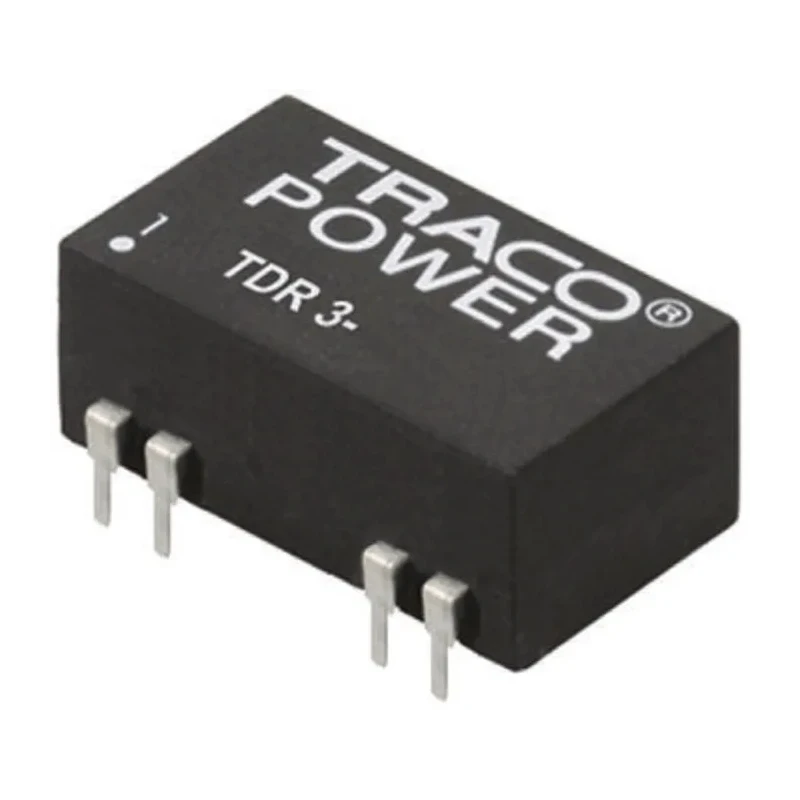

TRACOPOWER Regulated Isolated DC-DC Converter PCB Mount 12V dc 250mA Output 3W 9-18V Input TDR 3-1212
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TDR 3 DC/DC Converter, 12V dc/ 250 mA |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 18.9mm |
| Model | TDR 3-1212 |
| Depth | 8.7mm |
| Mount Type | PCB |
| Series | TDR 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | THD |
| Minimum Operating Temperature | -40°C |
| MTBF | 6200000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 14 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
| TDR 3-05xx | see stock number 745-1180 |
| TDR 3-12xx | see stock number 745-1200 |
| TDR 3-24xx and TDR 3-48xx | see stock number 745-1171 |
Key Features
- Compact DIP package design suitable for PCB mounting.
- Fully regulated and isolated output with 1.5kV DC isolation voltage.
- High operating temperature range from -40°C to +85°C without derating.
- Short-circuit protection and remote On/Off control capability.
- Low profile with dimensions of 18.9mm length and 8.7mm depth.
- Efficient conversion with 82% efficiency rating.
- Meets RoHS standards for environmental compliance.
- Single output delivering 12V DC at a maximum current of 250mA.
Product Description
TRACOPOWER TDR 3-1212 is a compact, regulated and isolated DC-DC converter designed for PCB mounting, providing a 12V DC output at 250mA current with a 3W power rating. It supports a wide input voltage from 9V to 18V DC, making it versatile for various electronic applications.
This DC-DC converter features a robust DIP package with a length of 18.9mm and depth of 8.7mm, suitable for space-constrained PCB designs. It offers an isolation voltage of 1.5kV DC, ensuring safety and resistance against electrical noise in industrial environments.
Designed to operate reliably across a wide temperature range from -40°C to +85°C without derating, the TDR 3-1212 is ideal for harsh conditions encountered in industrial, laboratory, and manufacturing equipment power supplies. The device also includes short-circuit protection and remote On/Off control to enhance system reliability and flexibility.
With an efficiency rating of 82%, this converter minimizes power loss and heat generation, promoting energy-efficient operation. It complies with RoHS standards, meeting environmental and safety regulations.
The converter is commonly used in industrial automation, instrumentation, data acquisition, and communication equipment requiring stable isolated power. Package contents typically include the DC-DC converter module ready for PCB installation.
Compact DIP package design suitable for PCB mounting. Wide 2:1 input voltage range from 9V to 18V DC. Fully regulated and isolated output with 1.5kV DC isolation voltage. High operating temperature range from -40°C to +85°C without derating.
Short-circuit protection and remote On/Off control capability. Low profile with dimensions of 18.9mm length and 8.7mm depth. Efficient conversion with 82% efficiency rating. Meets RoHS standards for environmental compliance.
Single output delivering 12V DC at a maximum current of 250mA. Wide industrial and electronic applications requiring isolated DC power conversion. Browse the Electronics & Electricals category at EnvMart for similar DC-DC Converters and power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a single output of 12V DC at a maximum current of 250mA.
It supports a wide input voltage range from 9V to 18V DC, with a 2:1 input ratio.
The efficiency rating of this unit is 82%, which helps minimize power loss and heat generation.
This converter has a length of 18.9mm and a depth of 8.7mm, making it suitable for space-constrained PCB designs.
It features an isolation voltage of 1.5kV DC, ensuring safety against electrical noise in industrial environments.
Yes, it includes short-circuit protection and remote On/Off control capability to enhance system reliability.
It is designed for PCB mounting, featuring a compact DIP package suitable for various electronic applications.
The TDR 3-1212 meets RoHS standards for environmental compliance, ensuring it adheres to safety regulations.
This model has a single output, delivering stable isolated power for various applications.
The maximum output power of this converter is 3W, making it suitable for low-power applications.
It is commonly used in industrial automation, instrumentation, data acquisition, and communication equipment requiring stable isolated power.
