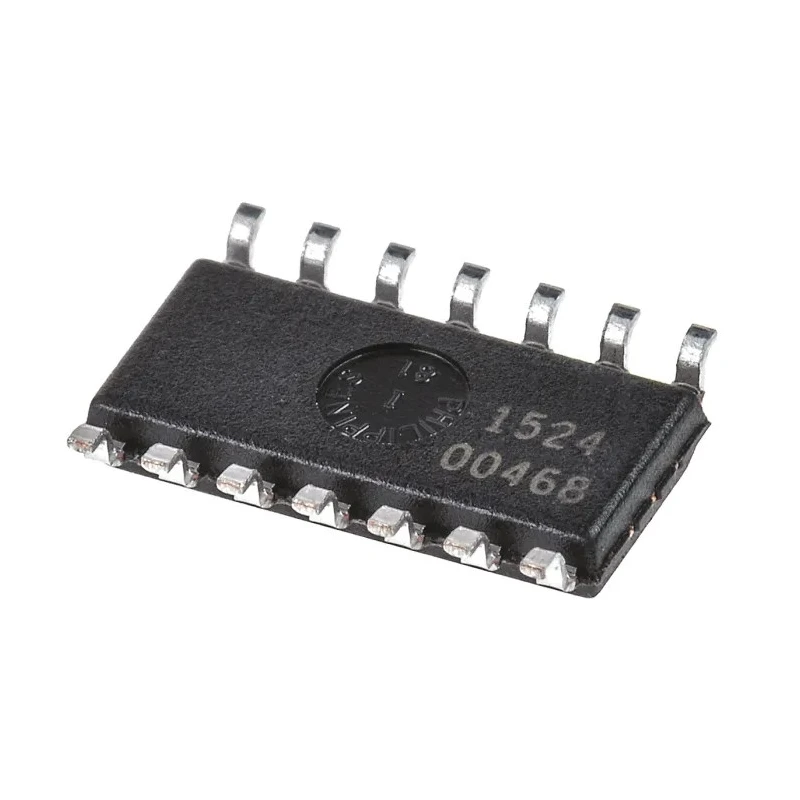

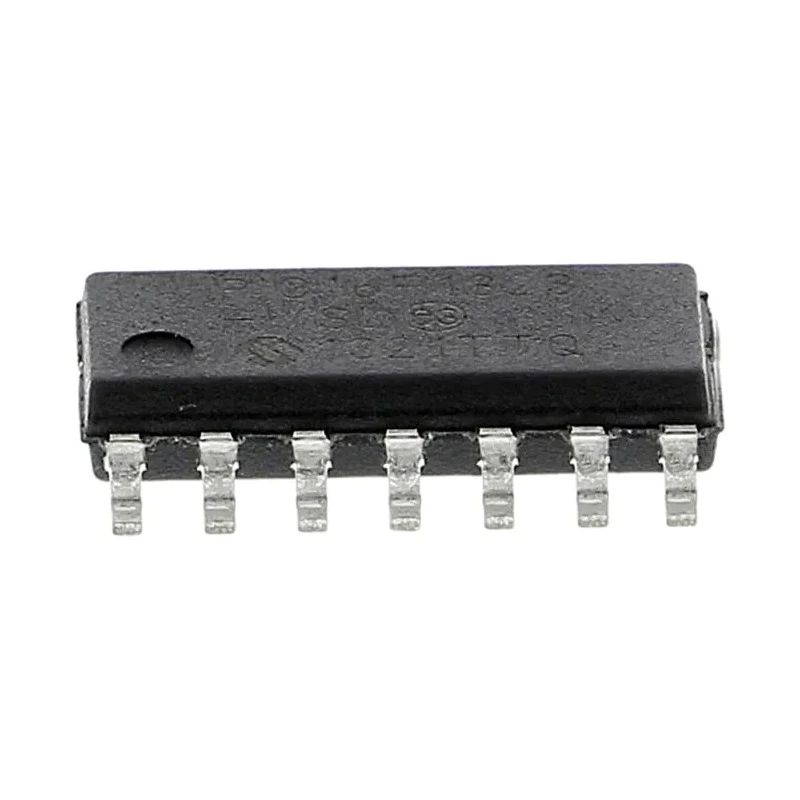

Microchip 8 bit PIC Microcontroller 32 MHz 3.5kB FLASH 14-Pin SOIC PIC16F1823

Microchip PIC16F1823 is an 8-bit microcontroller featuring a 32 MHz maximum clock speed and 3.5kB of FLASH program memory. This device is housed in a compact 14-pin SOIC package measuring 8.65mm in length, 3.9mm in width, and 1.5mm in height, making it suitable for space-constrained electronic designs.

Designed using Microchip's Enhanced Mid-Range core architecture, the PIC16F1823 delivers up to 8 MIPS performance with a 16-level deep hardware stack and 49 instructions. The microcontroller has 128 bits of RAM and 256 bytes of EEPROM memory for efficient data handling and storage.

It supports a wide operating voltage range from 1.8V to 5.5V and can operate reliably in temperatures ranging from -40°C to 85°C, making it suitable for industrial and automotive applications. The device offers 12 programmable input/output pins and features 8 channel 10-bit Analog to Digital Converters (ADCs), two analog comparators, and 5 bit Digital to Analog Converters (DACs).

The microcontroller comes with multiple timers including two 8-bit timers and one 16-bit timer, enhanced capture/compare/PWM modules, capacitor sensing modules, and voltage reference modules that enhance its functionality in embedded systems. It also supports power on reset, power-up timer, oscillator start-up timer, brown-out reset, watchdog timer, and enhanced low-voltage programming.

The PIC16F1823 supports in-circuit serial programming (ICSP) and debugging (ICD) for effective development and testing. It complies with RoHS environmental directives, ensuring sustainability and reduced hazardous substance content.

Operates up to 32 MHz clock frequency with 49 instructions. Flash memory of 3.5kB with 128 bits RAM and 256 bytes EEPROM. 12 programmable I/O pins in a 14-pin SOIC surface mount package. Wide operating voltage from 1.8V to 5.5V and temperature range of -40°C to 85°C.

Features 8 channel 10-bit ADCs and 2 analog comparators for versatile sensing. Includes multiple timers and ECCP modules for precise timing and control. Supports ICSP, ICD and enhanced low-voltage programming for development flexibility.

Complies with RoHS standards for environmental safety.

This microcontroller is ideal for embedded system applications across industrial automation, automotive control, consumer electronics, and laboratory equipment. Its compact footprint and rich peripheral set deliver flexibility for diverse engineering needs.
