Microchip 8 bit PIC Microcontroller 48 MHz 3kB FLASH 28-Pin SSOP PIC16F57

Microchip PIC16F57 is an advanced 8-bit PIC microcontroller designed for industrial, consumer electronics, and embedded system applications requiring reliable and efficient performance. Featuring a maximum clock frequency of 48 MHz, it operates on a RISC instruction set architecture, providing fast instruction execution and low power consumption.

The microcontroller includes 3kB of FLASH program memory for code storage and 72-bit RAM memory facilitating complex data handling. Integration of peripherals such as 1 x 5-bit DAC and 2 analogue comparators allows precise analog interfacing and signal processing capabilities.

This device supports Serial Peripheral Interface (SPI) for effective communication with other ICs and peripherals. It offers 25 programmable input/output pins, enhancing flexibility in hardware design and connectivity.

The power supply requirements range from 1.8V to a maximum of 5.5V with an 800mW maximum power dissipation, ensuring energy-efficient operation suitable for battery-powered and low-power applications.

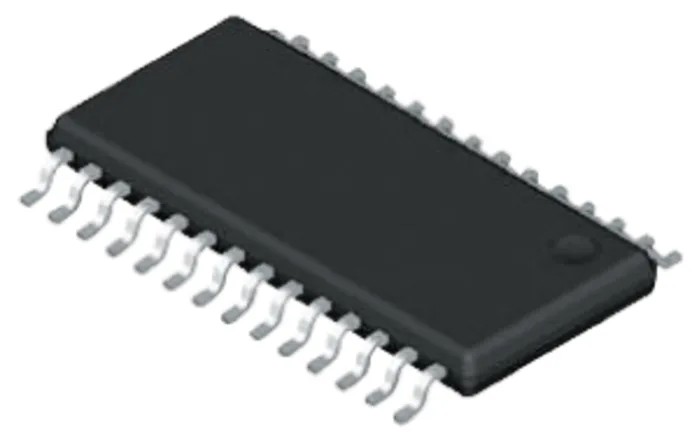

Operating temperature range from -40°C to 85°C qualifies it for demanding environmental conditions, including automotive and industrial use cases. Its compact 28-pin SSOP package has physical dimensions of 10.5mm (length) x 5.6mm (width) x 1.85mm (height), ideal for high-density PCB layouts and surface mounting technologies.

This microcontroller delivers reliable performance for control systems, sensor interfacing, and embedded automation tasks in laboratories, manufacturing equipment, and consumer electronic devices.

This microcontroller features an 8-bit PIC device core with RISC architecture. It supports SPI interface and provides 25 programmable I/O pins. The device operates within a voltage range of 1.8V to 5.5V and dissipates a maximum power of 800mW.

Includes 72-bit RAM, 1 x 5-bit DAC, and 2 analogue comparators for versatile analog and digital applications. Temperature range extends from -40°C to 85°C enabling robust industrial operation. Comes with a single 8-bit timer and FLASH program memory type.

The compact physical dimensions are 10.5mm length, 5.6mm width, and 1.85mm height, suitable for surface mounting.
