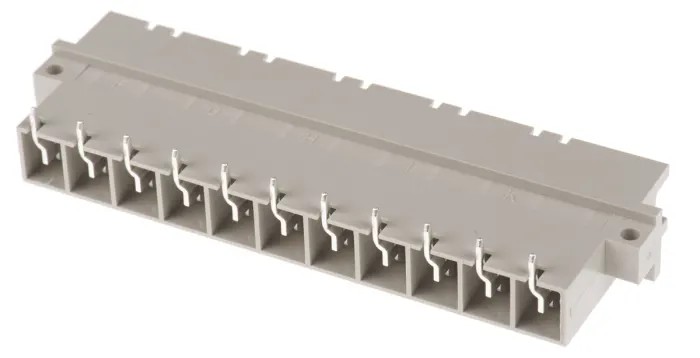

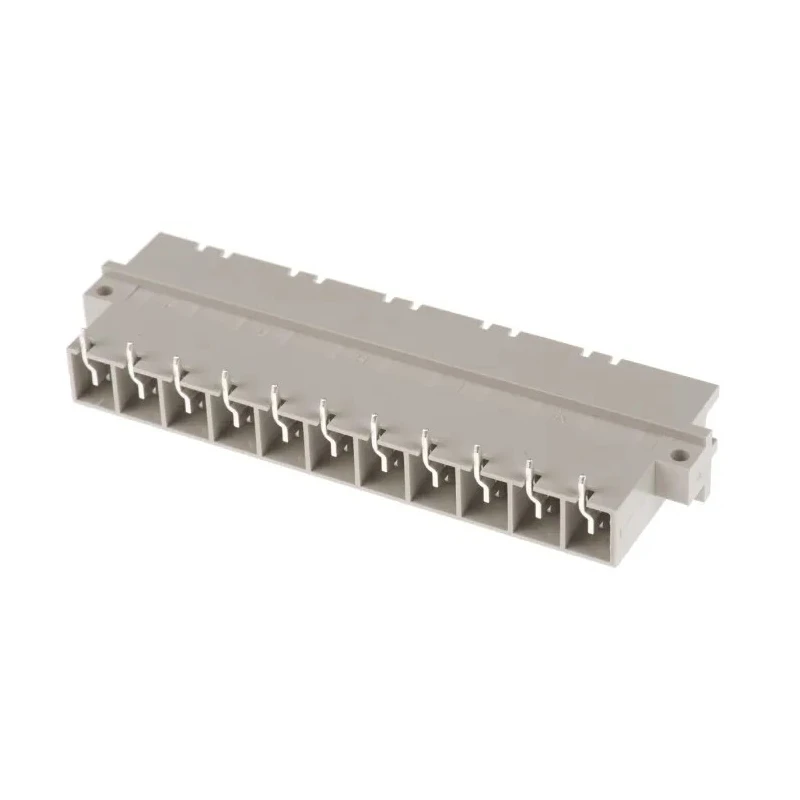

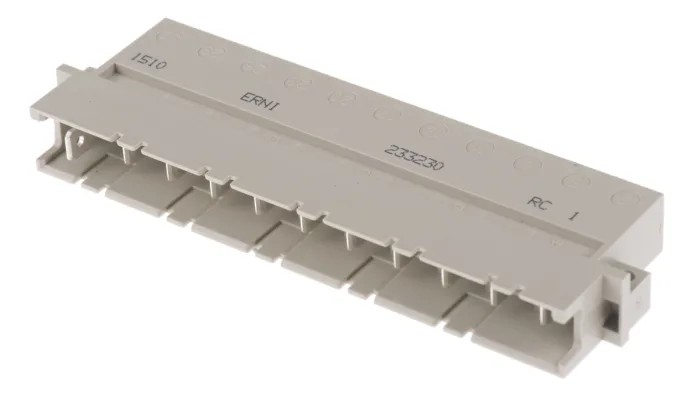

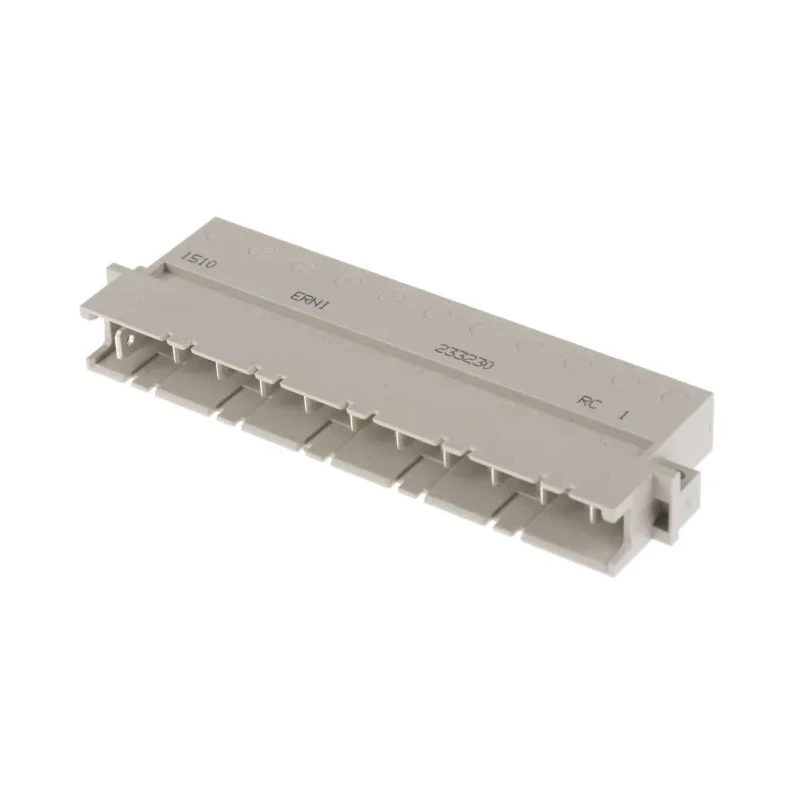

2E DIN 41612 11 Way 7.62 mm Pitch, Type Through Hole, Type H11, Solder Class C1, 1 Row Male, Right Angle 233230 / 233230-E

ERNI 233230 / 233230-E DIN 41612 Connector is a high-quality electronic component designed for industrial and electronic power and signal interfaces. This connector has 11 contacts arranged in a single row with a pitch of 7.62 mm, facilitating reliable connections on PCB boards.

The right angle orientation and through-hole mount make it ideal for secure assembly in compact and high-density setups. It is made from copper alloy contacts with gold plating which provides excellent conductivity and resistance to corrosion, while the housing uses robust polybutylene terephthalate for durability.

This connector is classified as Type H11 and solder termination class C1, optimized for power supply applications with a rating of 15 amperes at 70 degrees Celsius. Operating temperatures range from -55°C to 125°C, allowing use in demanding industrial environments.

The connector is commonly used in backplanes, rack connectors, and power distribution modules where reliable electrical contact and mechanical retention are critical. Its low maximum contact resistance of 20 milliohms ensures minimal voltage drop and efficient power transmission.

This connector features a single row with 11 gold-plated contacts. It supports a current rating of 15 A at 70 °C for reliable power supply. Contacts are made of copper alloy with gold plating to ensure excellent conductivity and corrosion resistance.

The housing is made from durable polybutylene terephthalate material for enhanced mechanical stability. Termination is via solder, suitable for secure PCB mounting. Through hole mounting type with Type H11 configuration for robust connections.

Suitable for industrial, electronic, and power distribution applications. Operating temperature range from -55°C up to 125°C for versatile environmental suitability. Contact resistance is a maximum of 20 milliohms, ensuring efficient electrical performance.

This ERNI DIN 41612 connector is essential for industries including electronics manufacturing, industrial machinery, telecommunications, and energy distribution systems. It provides reliable, high-quality power and signal connectivity for demanding applications.
