Omron Surface Signal Relay, 9V DC Coil, 2A Switching Current, DPDT Contact Configuration G6S-2G DC9
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2G DC9 |
| Width | 7.3mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | 30 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 9V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- Fully sealed relay construction ensures durability and longevity.
- High dielectric strength of 2000Vac between coil and contacts.
- Gold-plated contacts provide excellent corrosion resistance.
- Wide operating temperature range from -40°C to 85°C.
- Compact dimensions supporting surface mount with 7.3mm width.
- Coil resistance of 720 ohms with 200mW coil power consumption.
- Supports switching voltages up to 250V AC and 220V DC.
- Meets RoHS standards for environmental compliance.
Product Description
Omron G6S-2G DC9 is a surface signal relay featuring a 9V DC coil and a double pole double throw (DPDT) contact configuration. This relay is designed for high reliability in various industrial and commercial electrical applications requiring compact and durable switching components.
The relay is fully sealed to protect against environmental contamination and ensures durable performance over extended periods. It offers high dielectric strength withstanding up to 2000Vac between the coil and contacts, as well as 1500Vac between contacts of different polarity, enhancing insulation and safety.
Gold-plated contact materials provide superior corrosion resistance and reliable electrical conductivity. The coil has a resistance of 720 ohms, drawing minimal coil power of 200mW for low energy consumption. It supports switching currents up to 2A and switching voltages up to 250V AC and 220V DC, making it suitable for a broad range of signal relay tasks.

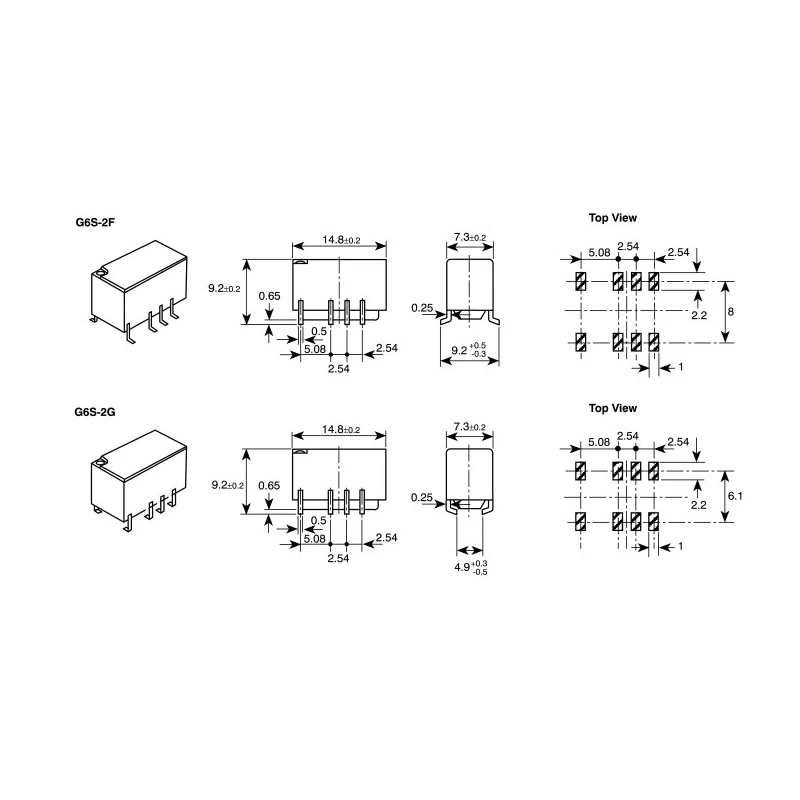

The operating temperature range from -40°C to 85°C enables deployment in diverse environments including industrial automation, manufacturing controls, and HVAC systems. Its compact surface mount form factor with dimensions 14.8 mm length, 9.2 mm height, and 7.3 mm width eases PCB layout in dense electronic assemblies.
The relay is RoHS compliant, ensuring it meets environmental and safety regulations. It originates from China and is built according to industry-accepted standards with UL and CSA approvals enhancing compliance credentials.
Fully sealed relay construction for protection against dust and moisture. High dielectric strength ensures safety and reliable isolation. Gold plated contacts provide excellent corrosion resistance. Wide temperature range suitable for industrial environments.
Compact size supports surface mount installation. Low coil power consumption enhances energy efficiency. Suitable for signal switching in automation and control applications.
This Omron G6S-2G DC9 Signal Relay is ideal for industrial, laboratory, manufacturing, and automation use cases where precise control and reliability are essential. Available through EnvMart for professional electronic integration and assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 9V DC.
It supports a maximum switching current of 2A.
The relay has dimensions of 14.8 mm in length, 9.2 mm in height, and 7.3 mm in width.
It features a double pole double throw (DPDT) contact configuration.
The operating temperature range is from -40°C to 85°C.
It supports surface mount installation.
The coil resistance is 720 ohms.
The maximum switching voltage is 250V AC and 220V DC.
The contacts are made of gold-plated material, providing excellent corrosion resistance.
Yes, it meets RoHS standards for environmental compliance.
The coil power consumption is 200mW.
It has a high dielectric strength of 2000Vac between the coil and contacts.
