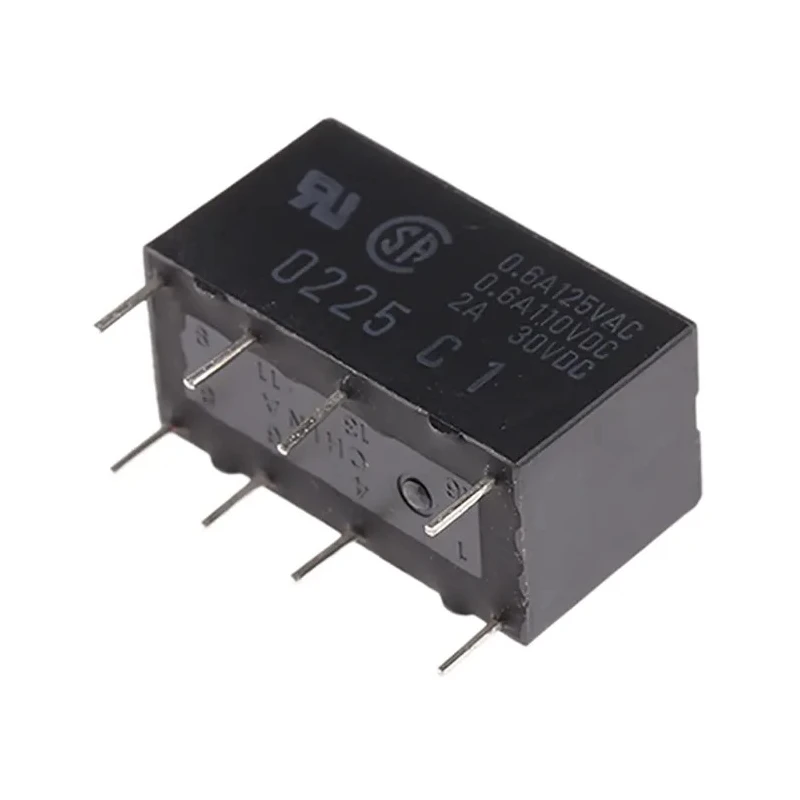

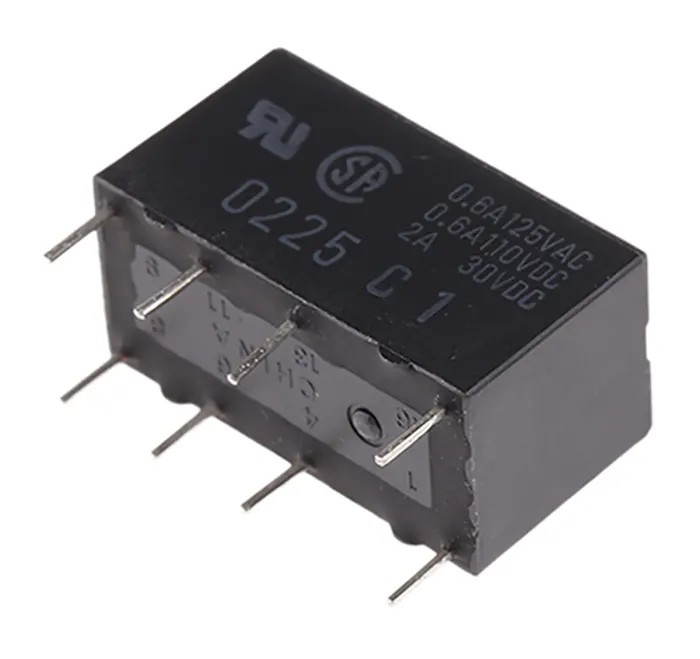

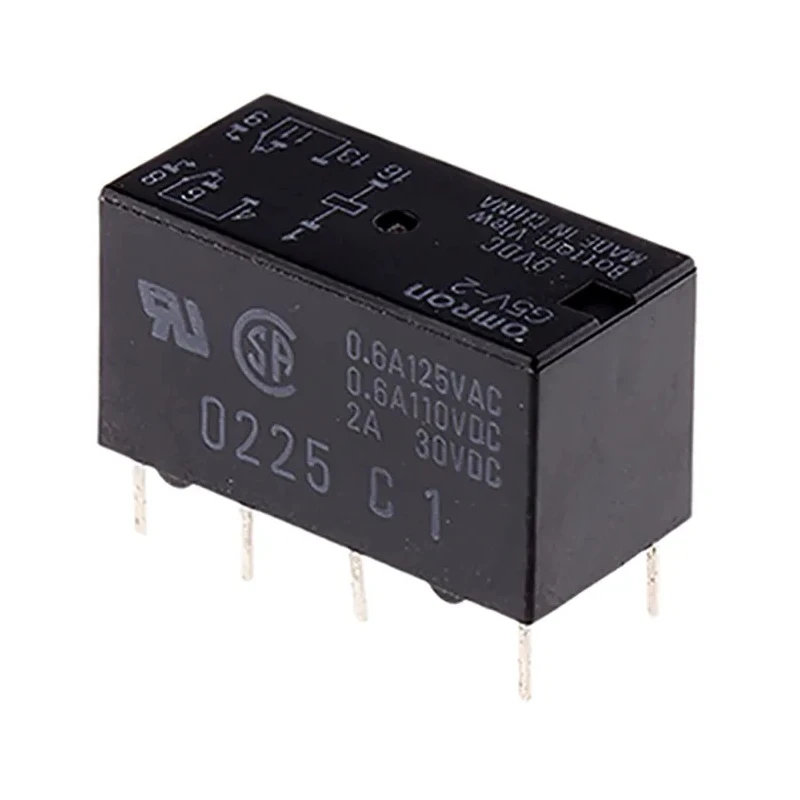

Omron PCB Signal Relay 9V dc Coil 2A DPDT G5V-2 9DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.2mm |
| Model | G5V-2 9DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | MT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 162Ω |
| Coil Voltage | 9V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 500mW |
| Omron PCB Signal Relay, 9V dc Coil, 1A, DPDTBrand | Omron |
Key Features
- Equipped with a gold-plated contact material to ensure reliability and corrosion resistance.
- Designed for PCB mounting with solder terminal type for secure installation.
- Operates within a temperature range from -25°C to 70°C for diverse environmental conditions.
- Coil resistance of 162 ohms and coil power consumption of 500mW for efficient energy use.
- Switching AC and DC voltage ratings of up to 125V providing versatile operation limits.
- Fully sealed construction allows immersion cleaning without damage.
- Meets RoHS compliance and conforms to BT Type 47 and BT Specification 4597 standards.
- Ideal for industrial signal switching within automation, control, and electronic equipment sectors.
Product Description
Omron G5V-2 9DC PCB Signal Relay is designed for industrial and electronic applications requiring reliable signal switching with a 9V dc coil and dual-pole double-throw (DPDT) contacts. This relay supports a switching current of 2A and offers robust performance within industrial, automation, and control environments where precision and durability are paramount.
The relay features gold-plated contacts and is designed for PCB mounting with solder terminals. It operates effectively within ambient temperatures ranging from -25°C to 70°C, providing operational stability under varying environmental conditions. With a coil resistance of 162Ω and coil power rating of 500mW, it offers efficient power consumption and performance.

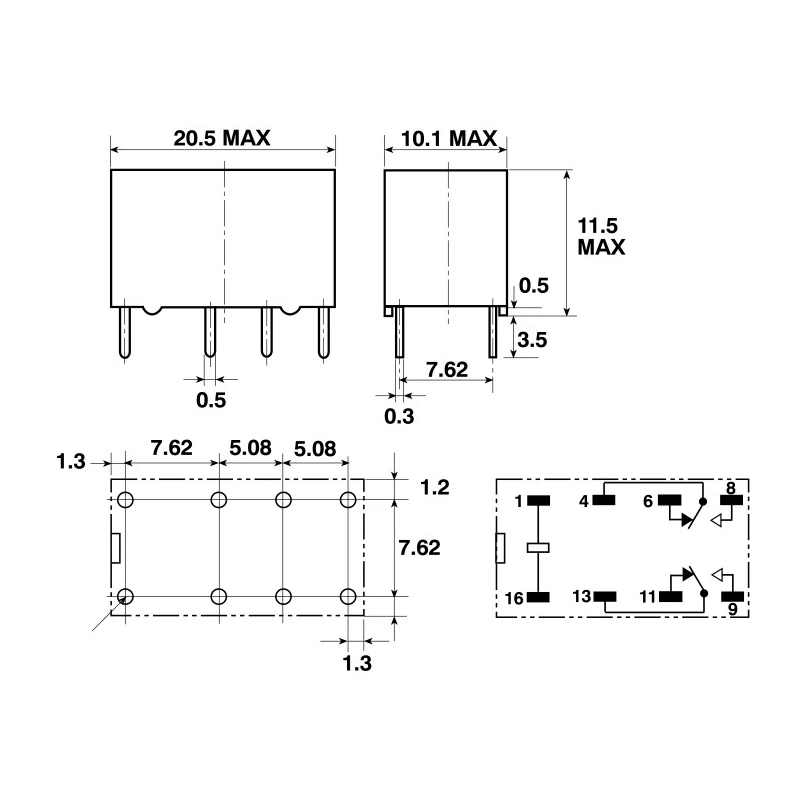

Its compact form factor, with dimensions of 20.2mm length, 11.5mm height, and 10mm width, facilitates integration into densely packed circuit boards. The relay supports switching AC and DC voltages up to 125V, suitable for a broad array of signal control applications.
The G5V-2 series relay is fully sealed to allow immersion cleaning and conforms to stringent standards including RoHS, BT Type 47, and BT specification 4597, ensuring compliance with safety and environmental requirements. UL and CSA approvals further certify its quality and suitability for professional use.
Gold-plated contact materials ensure excellent electrical conductivity and resistance to corrosion. PCB solder terminal mounting type enables straightforward integration into printed circuit boards. Wide operational temperature range supports deployment in harsh and varying conditions.
Sealed design allows for immersion cleaning without damage, facilitating maintenance. Conforms to multiple international standards and approvals guaranteeing industrial reliability and safety. The relay is optimal for signal switching in automation, electronics manufacturing, instrumentation, and control systems.
This Omron PCB signal relay is manufactured in China and represents a reliable component choice for engineers involved in designing and maintaining industrial control and automation equipment. It is featured in the EnvMart catalog under Signal Relay category, serving applications in electronics, electrical systems, and industrial automation.
Explore more high-quality industrial relays and automation components through EnvMart to support your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this relay is 9V DC.
It has a maximum switching current of 2A.
The dimensions are 20.2mm in length, 11.5mm in height, and 10mm in width.
This relay is designed for PCB mounting with solder terminals.
It operates effectively within a temperature range of -25°C to 70°C.
The relay supports switching AC and DC voltages up to 125V.
It features a dual-pole double-throw (DPDT) contact configuration.
The coil resistance is 162 ohms.
The coil power consumption is 500mW.
Yes, it meets RoHS compliance and conforms to BT Type 47 and BT Specification 4597 standards.
Yes, it has a fully sealed construction that allows for immersion cleaning without damage.
It is manufactured in China.
