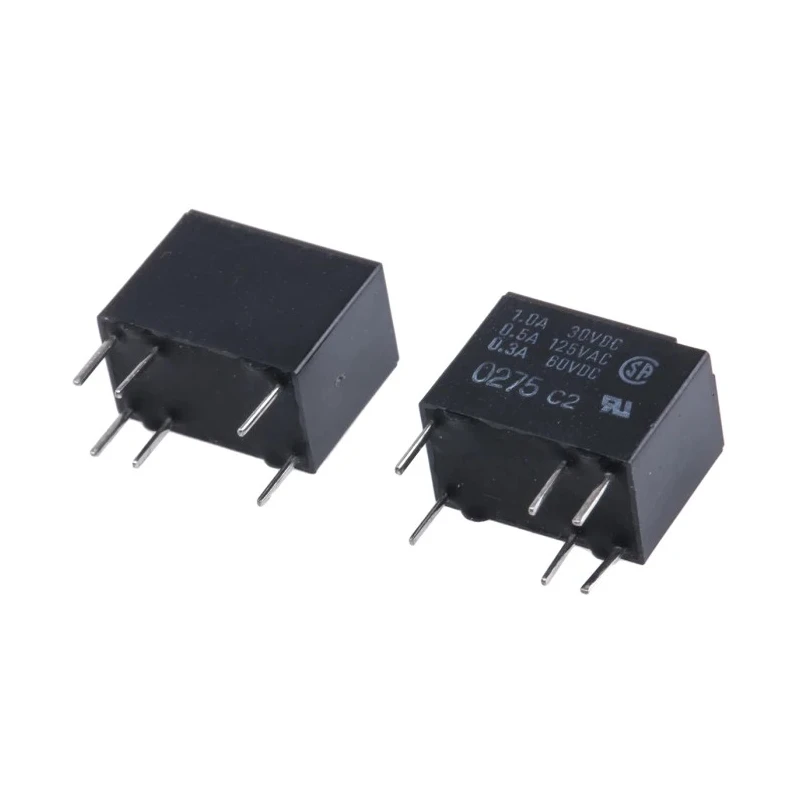

Omron PCB Signal Relay, 6V DC Coil, 2A Switching Current, SPDT Contact Configuration G5V-1 6DC

Omron G5V-1 6DC PCB Signal Relay is a high-quality signal relay designed for electronic and industrial applications requiring compact and precise control. Featuring a 6V DC coil and a nominal coil power of 150mW, this relay offers sensitive and efficient switching performance. The Single Pole Double Throw (SPDT) contact configuration allows flexible control in various circuit designs.

This relay supports switching currents up to 2A and can handle AC voltages up to 125V and DC voltages up to 60V, making it suitable for a range of low-power signal switching applications. Its ultraminiature size (12.5 mm length, 7.5 mm width, and 10 mm height) facilitates easy integration on printed circuit boards, contributing to compact and space-saving electronic designs.

Coil resistance measures 630 ohms, delivering reliable coil drive characteristics. The gold plated contacts enhance electrical conductivity and contact longevity, ensuring dependable switching throughout the relay's service life. With a robust operating temperature range from -40°C to 70°C, the relay maintains performance stability in diverse operating environments.

Designed for PCB mounting, the relay includes solder terminals for secure and efficient installation. The fully sealed construction protects the internal components from environmental dust and contaminants, extending the device’s durability and reliability.

This relay is part of the IME series and complies with RoHS standards, emphasizing safety and environmental considerations. The product is manufactured in China with high manufacturing standards and quality control.

Typical industrial and electronic applications include automation systems, signal conditioning, telecommunications, and control circuits in various sectors such as manufacturing, HVAC, and instrumentation. Its compact form factor and precise switching capabilities make it an ideal component for modern electronics requiring reliable signal relay functions.

For engineers and technicians seeking a compact and reliable PCB-mounted signal relay, the Omron G5V-1 6DC offers excellent performance, durability, and flexibility. Explore more Signal Relays and electronic components in the Electronics & Electricals category on EnvMart for comprehensive solutions to your automation and control requirements.

The relay coil operates at 6V DC with a nominal power consumption of 150mW. Contact configuration is Single Pole Double Throw (SPDT) suitable for versatile switching needs. Supports a maximum switching AC voltage of 125V and DC voltage of 60V.

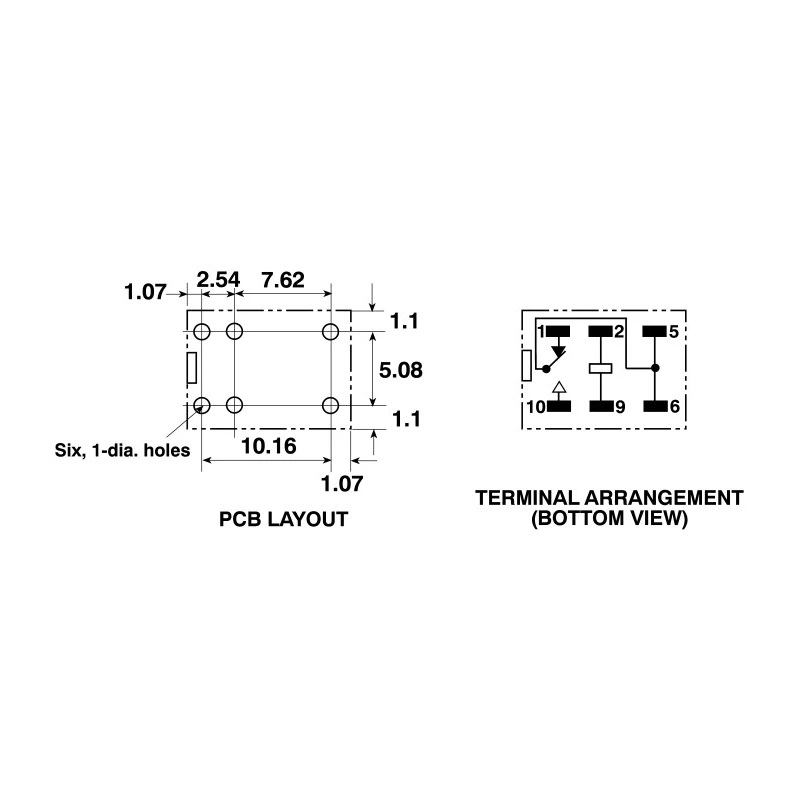

Ultraminiature footprint measuring 12.5 x 7.5 x 10 mm (LxWxH) ensures compact PCB integration. Coil resistance is 630Ω, providing high sensitivity and reliable operation. Contacts are gold plated for enhanced conductivity and durability.

Designed for robust operation with temperature range from -40°C to 70°C. Mounting type is PCB solder terminal, allowing easy and secure installation. Fully sealed construction ensures protection against dust and contaminants.
