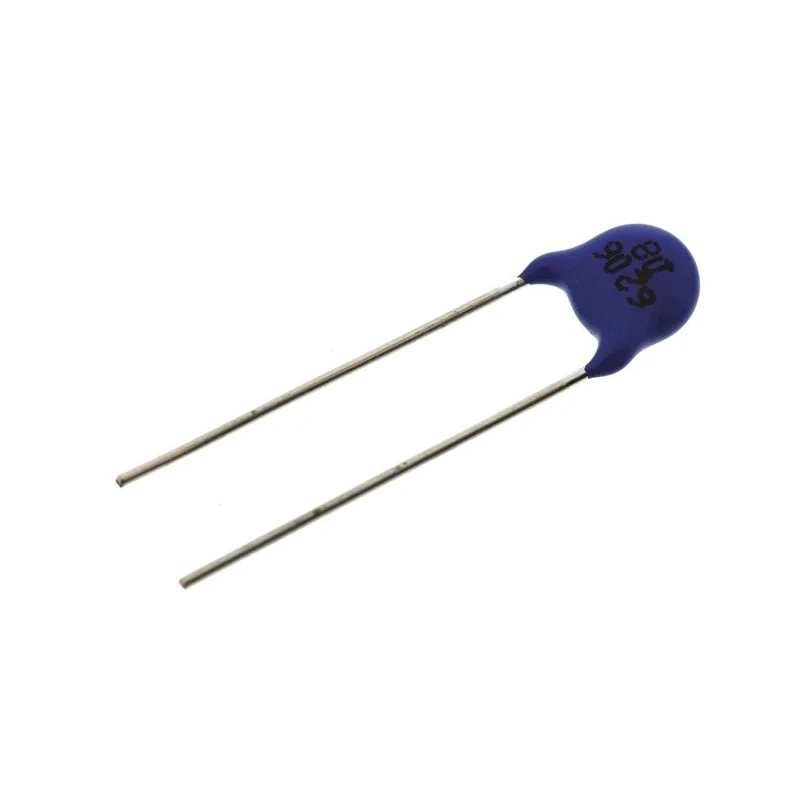

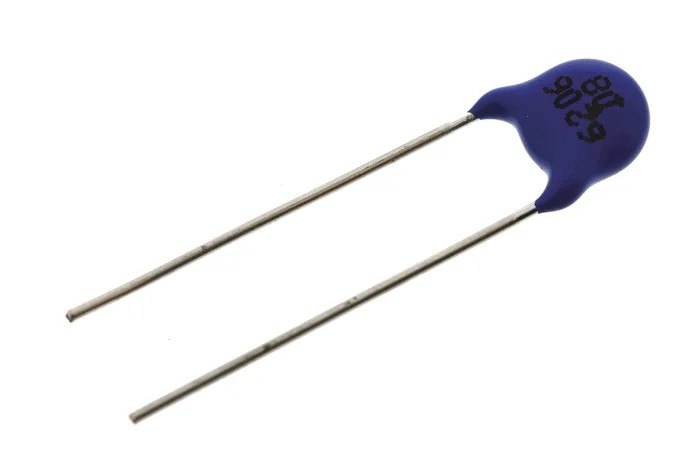

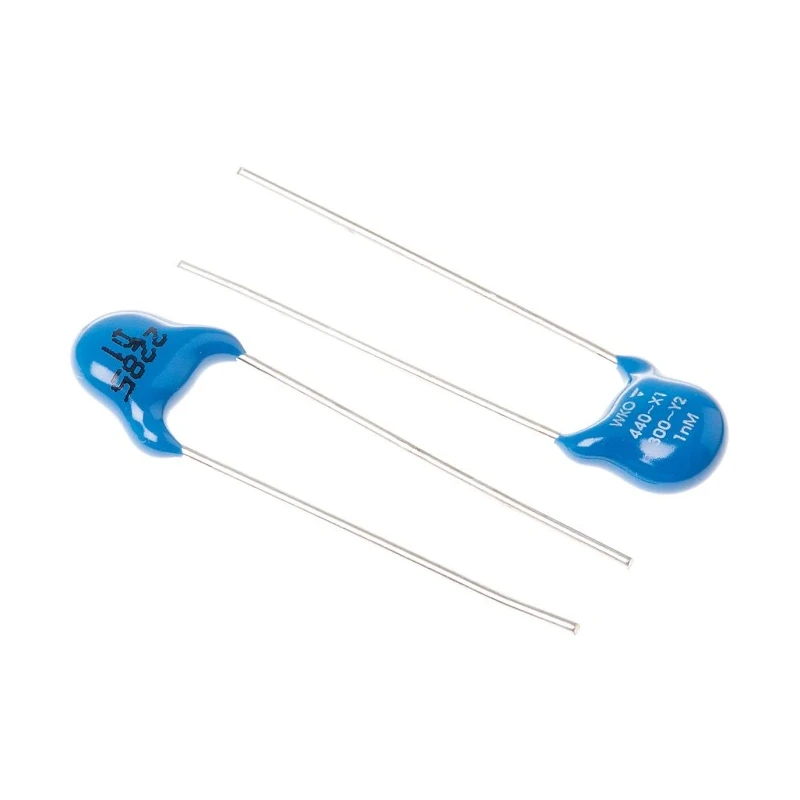

Vishay Single Layer Ceramic Capacitor 1 nF 400V AC ±20% Y5U Dielectric Through Hole Radial Terminal 125 °C WKO102MCPCJ0KR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V ac |
| Diameter | 10mm |
| Brand | Vishay |
| Length | 10mm |
| Model | WKO102MCPCJ0KR |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | WYO |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 2.5% |
| Standards/Approvals | RoHS, EC |
| Pin Count | 2 |
| Dielectric | Y5U |
| Suppression Class | Class II |
Key Features
- Capacitance value is 1 nF with ±20% tolerance.
- Employs Y5U dielectric providing stable operation up to 125 °C maximum temperature.
- Radial terminal type with through hole mount for PCB insertion.
- Features Class II suppression and dissipation factor of 2.5%.
- Minimum operating temperature is -40 °C ensuring wide thermal range.
- Compliant with RoHS and EC standards for safety and environmental regulations.
- Pin count of 2 facilitates easy circuit integration.
- Ideal for line-by-pass, X1 and Y2 applications requiring dependable AC line rated capacitors.
Product Description
Vishay WKO102MCPCJ0KR is a single layer ceramic capacitor featuring a capacitance of 1 nF and rated for 400V AC. This capacitor utilizes a Y5U dielectric, enabling operation at maximum temperatures up to 125 °C. Its sturdy construction includes a ceramic radial mounted disc silver plated on both sides and coated with flame retardant epoxy resin for enhanced safety and mechanical protection.
The capacitor is designed for through hole mounting with radial terminals, making it suitable for PCB insertion and secure mechanical stability in electronic assemblies. The dissipation factor of 2.5% and Class II suppression classification ensure efficient filtering and noise suppression in AC line circuits.
Its compact dimensions of 10 mm length, 5 mm width, and 10 mm diameter make it appropriate for various electronic component layouts requiring small form factor capacitors. The operating temperature range from -40°C to 125°C allows this component to be reliably used in diverse environments.
Compliant with RoHS and EC standards, the Vishay WKO102MCPCJ0KR capacitor meets modern environmental and safety regulations for electronic components. The two-pin configuration facilitates simple integration into circuits, especially useful for line-by-pass and safety applications such as X1 and Y2 classifications for AC lines.
Capacitance of 1 nF with ±20% tolerance ensures precise capacitance matching. High voltage rating of 400V AC suitable for power electronics and filtering. Y5U dielectric material offers good performance at elevated temperatures.
Through hole radial mounting enables durable mechanical and electrical connections. Suitable for industrial, commercial, and laboratory electronics applications. Reliable choice for AC line filtering, surge suppression, and noise reduction.
This product represents a dependable option for electronics manufacturers and repair professionals seeking high-quality ceramic disc capacitors. Explore additional Vishay capacitors and components at EnvMart to complete your electronic design solutions.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this capacitor is 1 nF with a tolerance of ±20%.
This model has a maximum operating temperature of 125 °C.
It is rated for a voltage of 400V AC.
This capacitor employs a Y5U dielectric.
It features a through hole mount with radial terminals, suitable for PCB insertion.
The dimensions are 10 mm in length, 5 mm in width, and 10 mm in diameter.
The dissipation factor is 2.5%.
The minimum operating temperature is -40 °C.
It is compliant with RoHS and EC standards.
This model has a pin count of 2, facilitating easy circuit integration.
It is suitable for line-by-pass and safety applications, including X1 and Y2 classifications for AC lines.
The suppression class is Class II, which ensures efficient filtering and noise suppression.
