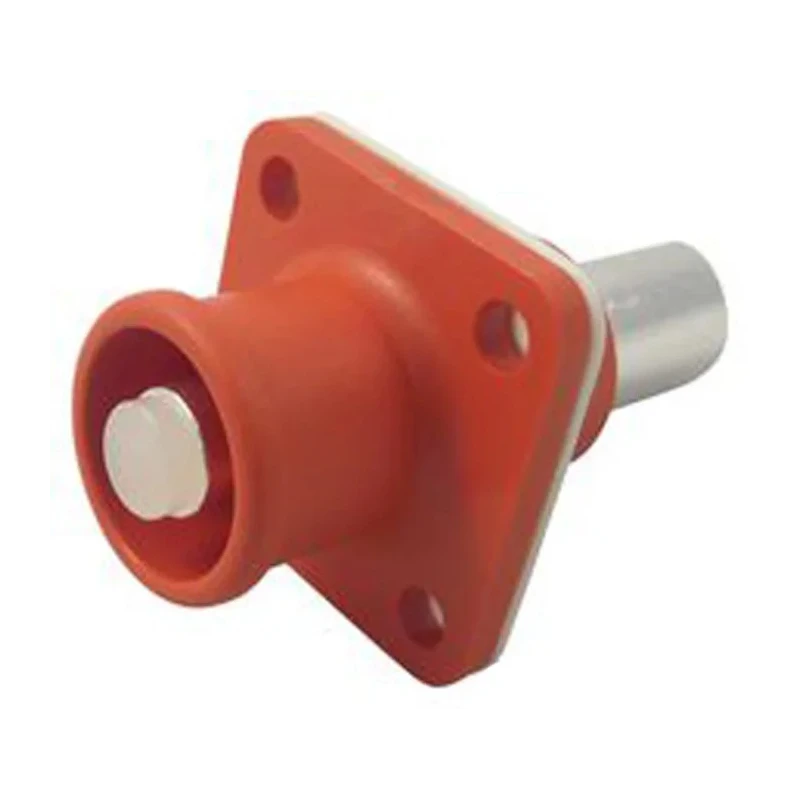

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female, 300A, 1000V, Panel Mount, Crimp, SLPIRC70CPSO1 / C10-730191-0701
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 300A |
| Model | SLPIRC70CPSO1 / C10-730191-0701 |
| Depth | 69.2mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 69.2mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 70mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Rated for 300A current and 1000V operating voltage.
- Designed with SurLok Plus series for reliable connections in EV applications.
- Features a single position, 1-row, 1-contact female RADSOK receptacle.
- Crimp termination and straight orientation for easy installation.
- Environmentally sealed with IP67 rating for robust field use.
- Panel mount configuration using high-quality copper alloy contacts and thermoplastic housing.
- Flammability rating UL 94-V0 for enhanced safety.
- Works with 70mm² wire and has a 10.3mm pin diameter.
Product Description
Amphenol Industrial SLPIRC70CPSO1 / C10-730191-0701 SURLOK PLUS RADSOK EV Connector Female, 300A offers robust performance for electric vehicle (EV) and heavy equipment connections. Rated at 300A current and 1000V operating voltage, this panel mount connector is an ideal solution for process control, battery management systems, rail mass transit, medical devices, and industrial energy storage applications.
This connector features a single position, single row, 1-contact female RADSOK receptacle with crimp termination. The SurLok Plus series ensures high tensile strength and a highly conductive surface area, delivering reliable connection performance. Its environmentally sealed thermoplastic housing achieves an IP67 rating, protecting against dust and water ingress and facilitating use in demanding field conditions.
The connector is touch-proof, keyed to prevent mismating, and employs a spring locking mechanism for secure contacts. Its flammability rating of UL 94-V0 provides additional safety suitable for use in industries requiring compliance with strict standards. The unit accommodates 70mm² wire and features a 10.3mm pin diameter.
Rated for 300A at 1000V, ideal for high-performance EV power applications. One-position, panel mount female RADSOK connector with robust thermoplastic housing and copper alloy contacts. Crimp termination, straight orientation, and keyed design for fast, reliable, and mistake-proof installation.
IP67 environmental sealing, touch-proof and spring locking for field reliability. Operating temperatures from -40°C to 125°C; UL 94-V0 flame rating for safety. Applications include EV/HEV, rail transit, battery management, industrial energy storage, medical devices, and process automation.
The Amphenol SurLok Plus series is highly regarded in electric vehicle, renewable energy, and industrial sectors for panel mount and quick-mating compression lug solutions. The modular and field-installable design meets the demands of modern manufacturing, construction, rail, and energy applications.
Explore more EV Connectors and solutions at EnvMart for your power and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 300A.
It operates at a voltage of 1000V.
This connector features crimp termination.
The connector has an IP67 rating, making it environmentally sealed against dust and water ingress.
The connector has a width and depth of 69.2mm.
The pin diameter is 10.3mm.
It operates within a temperature range of -40°C to 125°C.
The housing is made of thermoplastic, and the contacts are made of copper alloy.
This model features a single contact.
It is suitable for applications in electric vehicles, battery management systems, rail mass transit, and industrial energy storage.
Yes, it is keyed to prevent mismating and has a spring locking mechanism for secure contacts.
The connector has a flammability rating of UL 94-V0, enhancing its safety for various applications.
