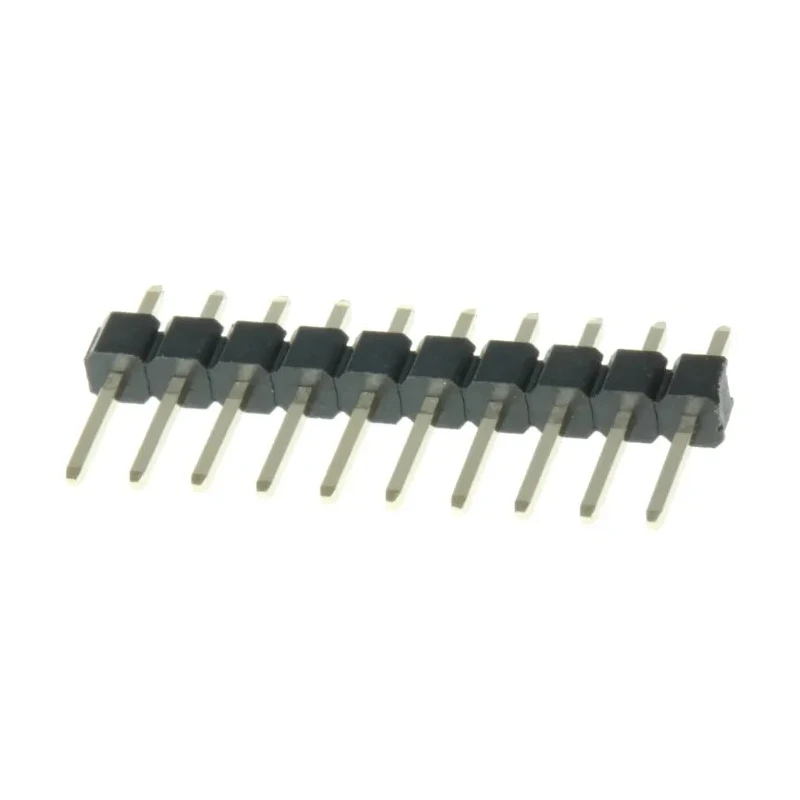

HARWIN M20 Series Straight Through Hole Pin Header 10 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9991045
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-9991045 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Features unshrouded, single-row 10-pin configuration for versatile PCB applications.
- Constructed with nylon housing to withstand reflow soldering temperature up to 105°C.
- Utilizes brass male contacts plated with gold for reliable conductivity.
- Tail pin length measures 3 mm and mating pin length is 6.1 mm.
- Supports a maximum current rating of 3 amps with a pitch of 2.54 mm.
- Suitable for use in embedded PCs, motherboards, communications, and industrial equipment.
- Operating temperature range is -40°C to 105°C ensuring durability under harsh conditions.
- Designed to be cut to custom size via castellations in the housing where required.
Product Description
HARWIN M20-9991045 series is a high-quality straight through hole pin header designed with 10 contacts and a 2.54 mm pitch, featuring a single row unshrouded configuration. This connector is made with a robust nylon housing that can withstand reflow soldering processes up to 105°C, making it well suited for industrial, laboratory, and electronic manufacturing environments.
The male brass contacts are plated with gold to ensure excellent conductivity and corrosion resistance. The tail pin length is 3 mm, mating pin length is 6.1 mm, and it carries a current rating of 3A, ensuring reliable performance in demanding electronic applications.
The M20 series pins can be used in a wide array of uses, including embedded PCs, motherboards, consumer electronics, communications equipment, drives and controls, and industrial monitoring. The housing features castellations allowing it to be trimmed to the desired size carefully, accommodating custom PCB designs.
This connector supports board-to-board and wire-to-board connection systems with straight orientation and solder termination, making it adaptable to multiple mounting configurations. Operating temperature ranges from -40°C to 105°C enable this component to perform in variable conditions.
Unshrouded single row 2.54 mm pitch design provides flexibility for PCB layouts. Housing material is high-temperature nylon to resist reflow soldering heat. Gold plated brass contacts deliver low resistance and durability.
Supports current up to 3 amps for reliable electronic signal transmission. Operating between -40°C to 105°C for diverse environmental applications. Customizable length by cutting the housing at castellations. Suitable for electronics manufacturing, industrial, and communication system assemblies.
Explore more PCB connectors and headers in the Electronics Components category on EnvMart to find matching sockets, sockets housings, and jumpers compatible with the M20 series. Enhance your designs with trusted quality connectors tailored to industrial and commercial applications.
Explore more products in our PCB Pin Header category.
