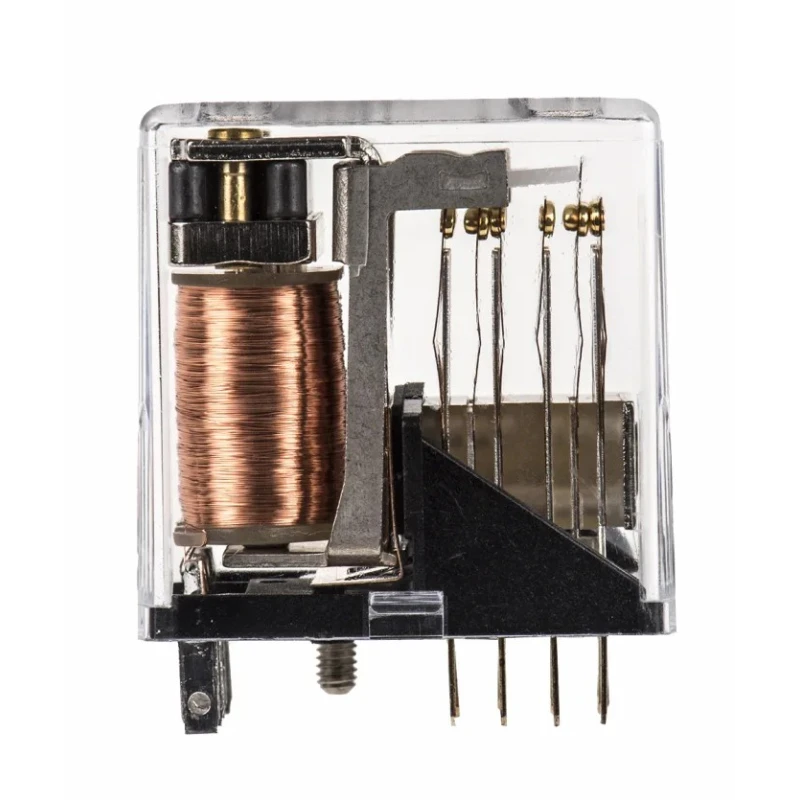

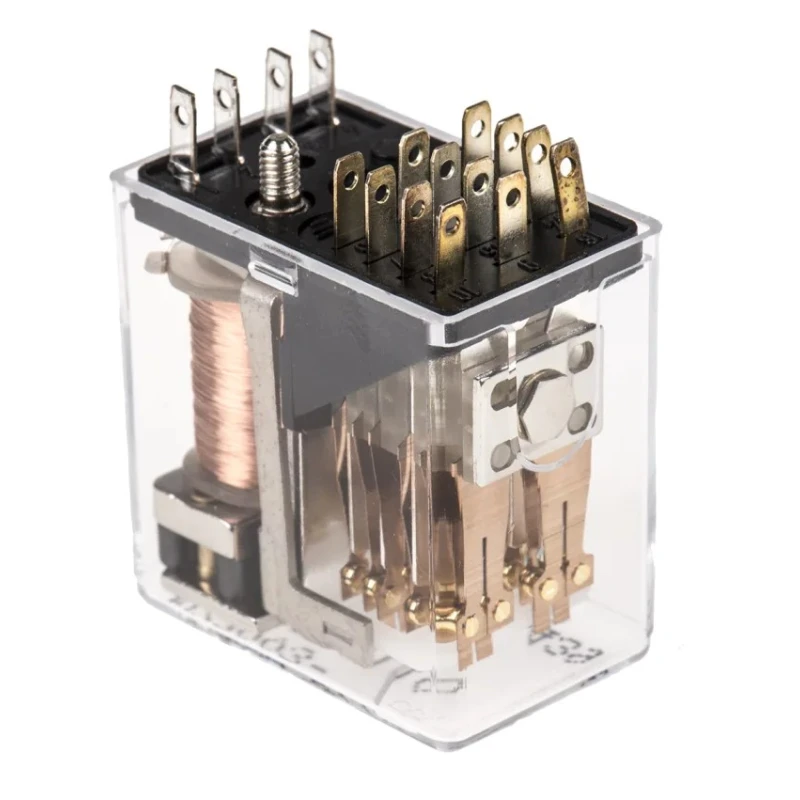

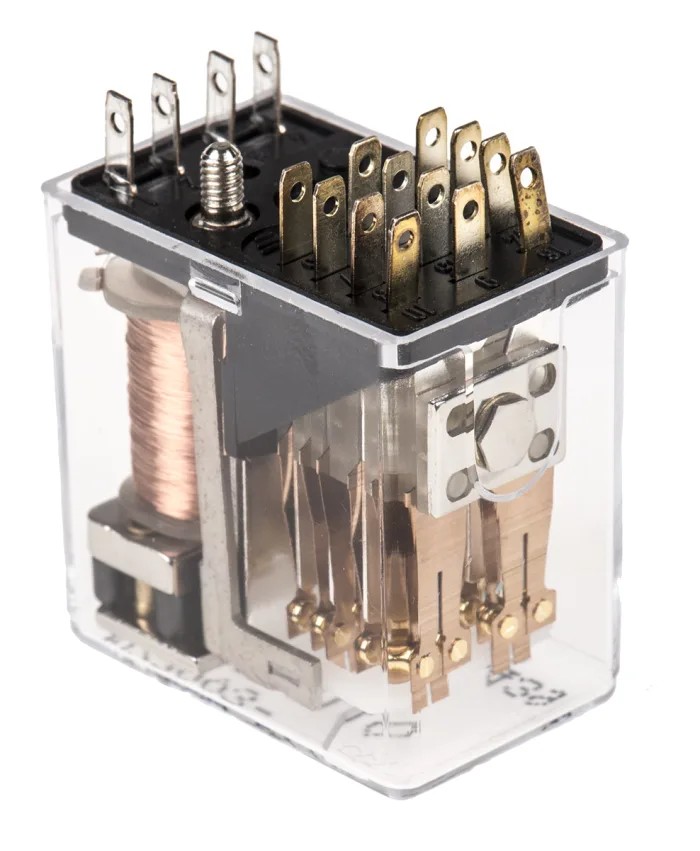

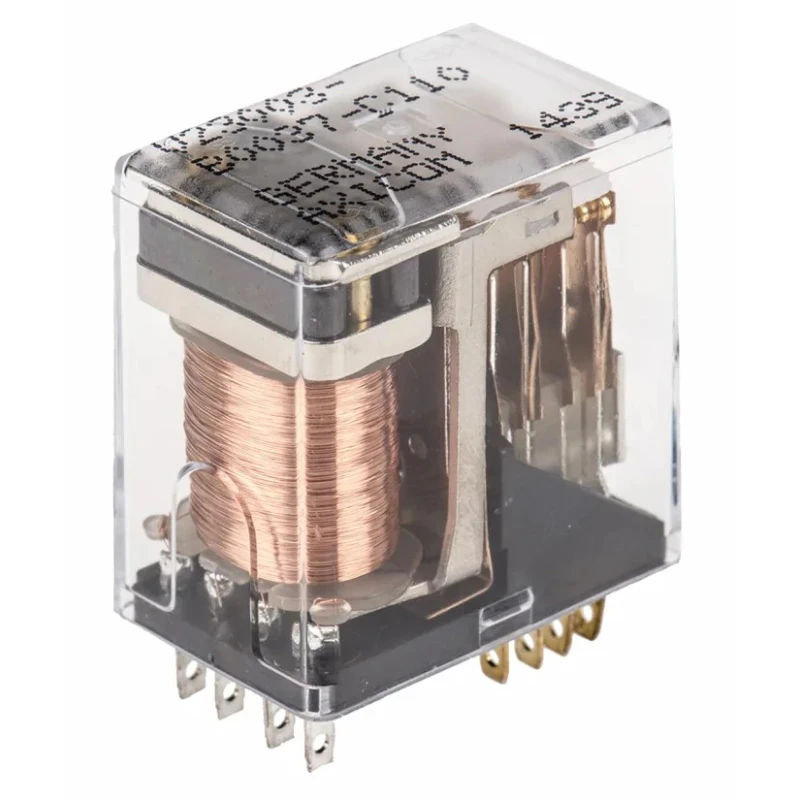

TE Connectivity PCB Signal Relay 24V dc Coil 3A 4PDT V23003B 37C110
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Height | 30mm |
| Length | 30mm |
| Model | V23003B 37C110 |
| Width | 19mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 150V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 1.44W |
Key Features
- Operates within a temperature range of -40°C to 70°C for robust performance.
- Gold plated contact material enhances reliability and conductivity.
- Designed for PCB mounting with plug-in terminal type for easy installation.
- Suitable for switching AC voltage up to 125V and DC voltage up to 150V.
- Coil resistance of 400Ω and coil power of 1.44W ensure efficient coil operation.
- Compact dimensions with 30mm length, 30mm height, and 19mm width save PCB space.
- RoHS compliant, ensuring environmental standards are met.
Product Description
TE Connectivity V23003B 37C110 is a PCB mounted signal relay equipped with a 24V dc coil and a 3A switching current capacity. This 4PDT relay provides reliable operation over a broad temperature range from -40°C to 70°C, making it ideal for industrial and commercial electronic applications. Its gold plated contacts guarantee superior conductivity and resistance to corrosion.
Designed for easy plug-in installation on printed circuit boards, the relay supports switching AC voltages up to 125V and DC voltages up to 150V, suitable for diverse control and signaling tasks. The coil resistance of 400Ω and power rating of 1.44W optimize power efficiency during coil activation.
The relay’s compact form factor with dimensions of 30mm length, 30mm height, and 19mm width allows for integration in space-constrained applications commonly found in automation, electrical control panels, and signal conditioning systems.
Compliant with RoHS standards, this relay adheres to environmental safety regulations. Originating from Germany, this product ensures high manufacturing quality and durability. Operates within a wide temperature range for reliable performance.
Gold plated contacts provide long service life and high conductivity. Plug-in terminal design facilitates quick installation and replacement. Supports AC and DC voltage switching for versatile application. Compact size ideal for PCB mounting in electrical assemblies.
Energy efficient coil with optimized resistance and power consumption. Environmentally compliant, reducing hazardous substance use.
This TE Connectivity PCB Signal Relay is suited for electronics manufacturing, industrial automation, HVAC control, and other electrical signal switching applications. For more industrial electrical components and advanced relay solutions, browse the comprehensive EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 3A, making it suitable for various control and signaling tasks.
The relay has compact dimensions of 30mm in length, 30mm in height, and 19mm in width, allowing for efficient use of PCB space.
It operates with a coil voltage of 24V DC, which is essential for its activation.
It is designed for PCB mounting and features a plug-in terminal type for easy installation.
The coil resistance is 400Ω, which contributes to its efficient operation during coil activation.
This unit operates within a temperature range of -40°C to 70°C, making it suitable for various environments.
The contacts are made from gold plated material, enhancing reliability and conductivity.
Yes, it is RoHS compliant, ensuring it meets environmental safety regulations.
The coil power rating is 1.44W, optimizing power efficiency during operation.
It features a 4PDT (4 Pole Double Throw) contact configuration, suitable for multiple switching applications.
The relay originates from Germany, ensuring high manufacturing quality.
