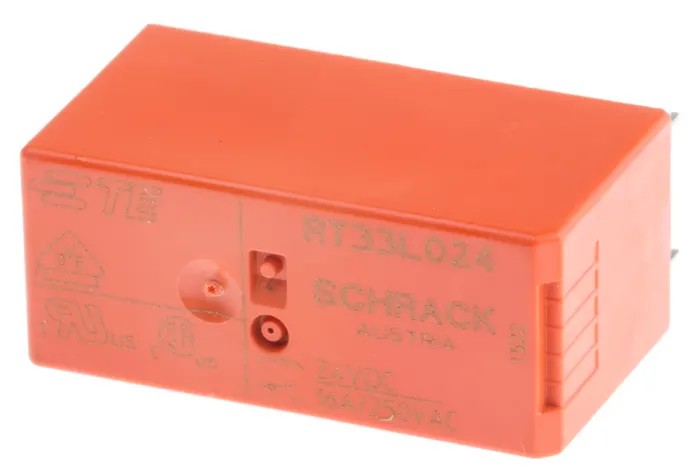

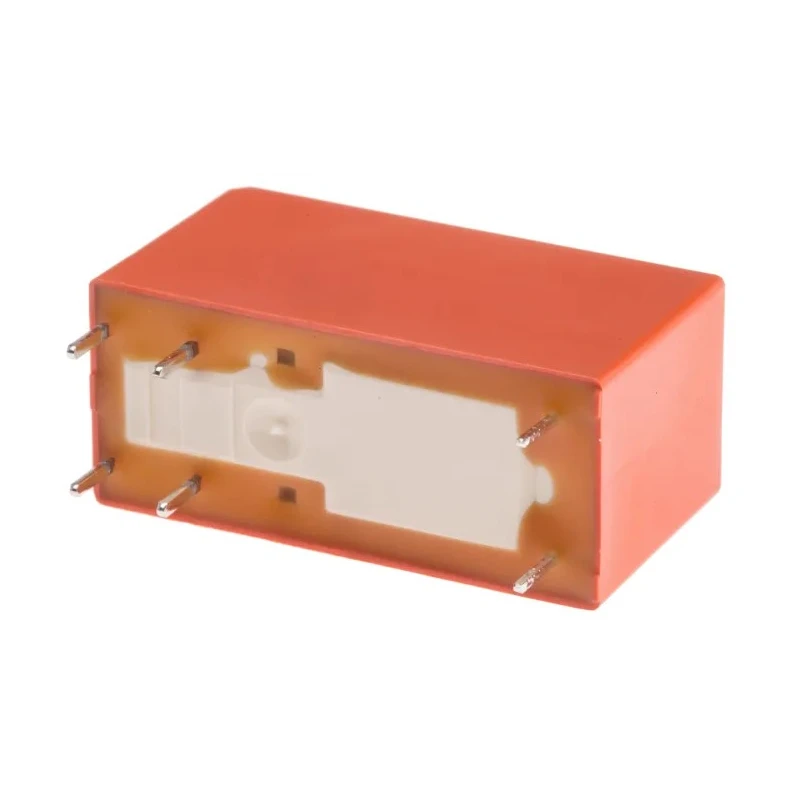

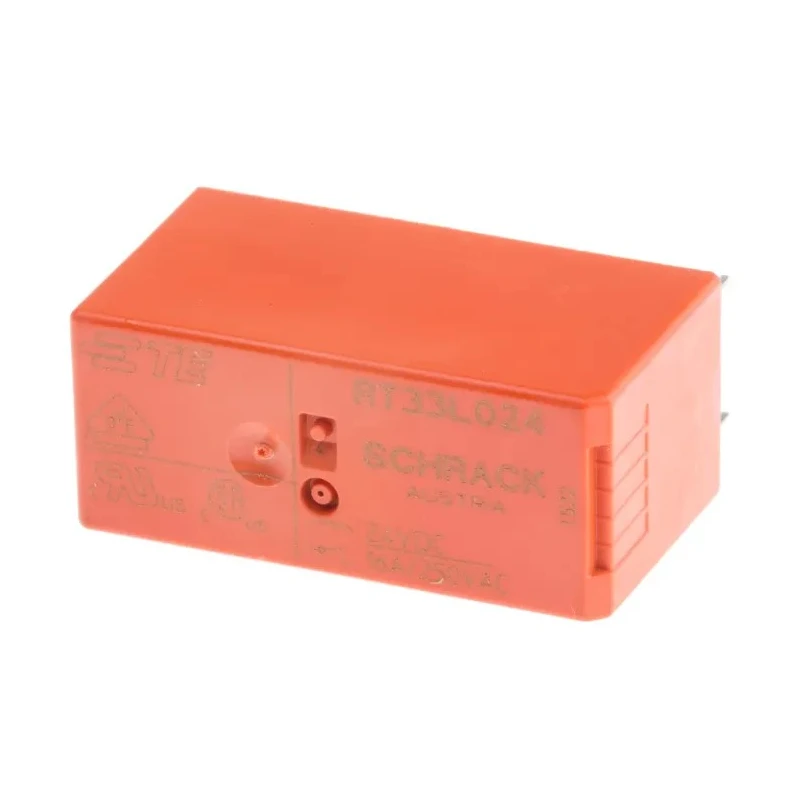

TE Connectivity RT1 Series PCB Power Relay, 24V DC Coil, 16A Switching Current, SPST Contact 3-1393240-5 RT33L024

TE Connectivity 3-1393240-5 RT33L024 PCB Power Relay belongs to the RT1 series of high inrush relays, featuring a 24V DC coil voltage and SPST contact configuration. It is designed for use on printed circuit boards (PCBs) and provides a robust switching current of 16 amps suitable for a wide range of electrical and automation systems. The relay’s coil resistance is 1.4kΩ, and it has a coil power rating of 250mW, offering efficient operation with low power consumption.

This relay supports switching of AC voltages up to 400 volts, making it suitable for controlling lighting systems, movement sensors, motor applications, and incandescent lamp loads. The contact material is silver alloy, which ensures excellent electrical conductivity and durability over extended usage.

Dimensions including a length of 29mm, height of 15.7mm, and width of 12.7mm make it compact for integration into tight spaces on PCBs. Its temperature operating range from -40°C to 85°C allows reliable use in industrial, commercial, and manufacturing environments.

The RT1 series includes features such as reinforced insulation and a creepage and clearance of 10mm for safety and reliability in demanding electrical applications. This product complies with standards like VDE, RoHS, and IEC 60335-1, ensuring quality and regulatory adherence.

The relay is designed for PCB mounting with solder terminals for secure and efficient installation. High 16A switching capacity supports controlling loads in industrial and automation equipment. Compact dimensions allow easy placement inside control panels and devices with limited space.

Durable silver alloy contacts resist corrosion and maintain excellent performance over time. Low coil power of 250mW enables energy-efficient operation in continuous duty environments. Wide operating temperature range ensures dependable function in extreme conditions.

Suitable for use in lighting controls, movement detection systems, motors, and filament lamps. Certified to meet international standards providing assurance of safety and quality. Manufactured in Austria, affirming high build standards and product reliability.

This TE Connectivity PCB Power Relay is ideal for electrical, automation, manufacturing, and industrial control applications. Its reliable switching and compact size enhance production efficiency and system durability. Explore more high-quality Power Relays and components in the Electronics & Electricals category at EnvMart.
