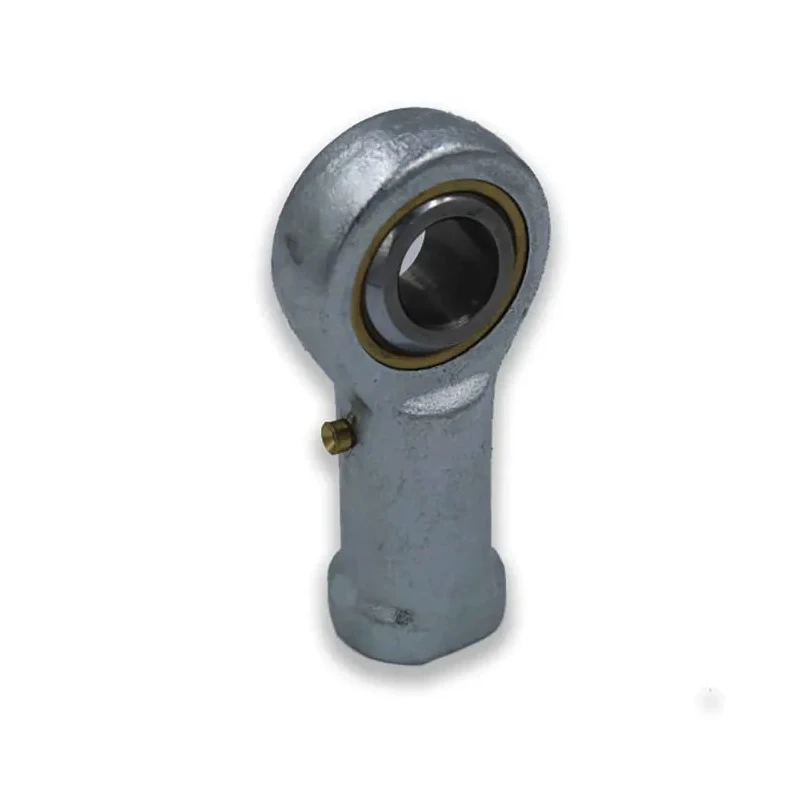

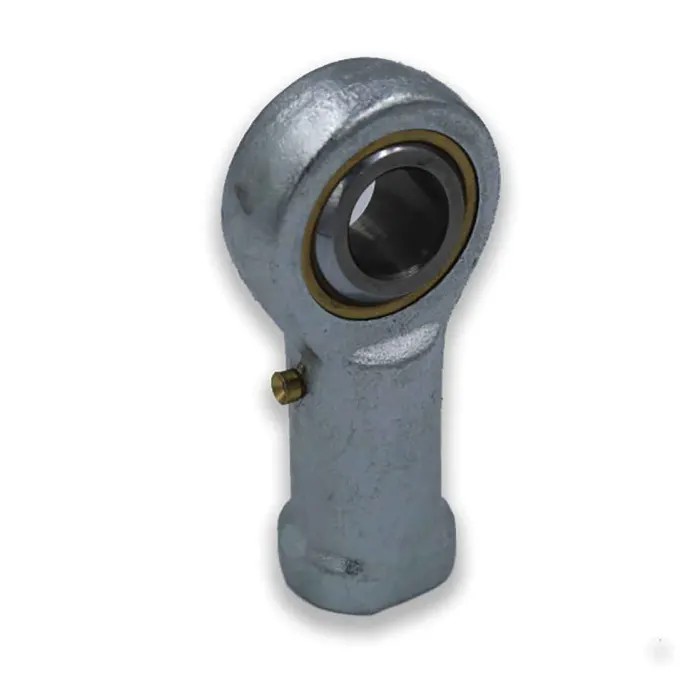

LDK Carbon Steel Rod End, 19.05mm Bore UNF Left Hand Thread PHSB12L
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | Carbon Steel |
| Model | PHSB12L |
| Body | Carbon steel,clear Zinc plated |
| BALL | AISI 52100 bearing Steel, heat treated, HRC56 min, Precision ground polished hard chromium plated |
| Overall Width | 95.25mm |
| Outside diameter | 44.45mm |
| Bore Diameter | 19.05mm |
| Thread Standard | UNF |
| Static Load Rating | 49.6kN |
| Thread Direction | Left Hand |
| Dynamic Load Rating | 27kN |
| Race | Brass |
| Sliding contact surfaces | Steel/Brass |
Key Features
- The rod end is made of carbon steel with clear zinc plating for corrosion resistance.
- The ball component uses AISI 52100 bearing steel, heat treated and chromium plated for hardness and precision.
- Dynamic load rating is 27 kN and static load rating is 49.6 kN ensuring reliable mechanical strength.
- Outside diameter measures 44.45 mm with an overall width of 95.25 mm for fitting accuracy.
- The thread standard is UNF and threaded direction is left hand for specialized assembly needs.
- Sliding contact surfaces are steel/brass for smooth rotational movement.
- The race of the rod end is constructed from brass ensuring durability.
- Suitable for industrial, mechanical, and manufacturing applications requiring precision rotary bearing solutions.
Product Description
LDK PHSB12L Carbon Steel Rod End features a 19.05 mm bore diameter and UNF left hand thread, designed for high-performance rotary bearing applications. It is built to provide reliable operation in industrial and mechanical environments.
The female rod end incorporates a 3/4 bore and 3/4 UNF thread with left hand orientation, ideal for assemblies requiring precise load accommodation and rotational movement.
The ball is made of AISI 52100 bearing steel, which is heat treated to a minimum hardness of HRC56, precision ground and polished, and hard chromium plated to ensure durability and low friction.
The body of the rod end is constructed from carbon steel with clear zinc plating to resist corrosion and wear. Brass is used for the race, providing robust support for sliding contact surfaces made of steel and brass.
This rod end has a dynamic load rating of 27 kN and a static load rating of 49.6 kN, supporting demanding mechanical loads in industrial machinery and assemblies. The rod end's outside diameter is 44.45 mm with an overall width of 95.25 mm to ensure proper fit in mechanical systems.
Thread standard is UNF, and it features left hand thread direction, catering to specialized mechanical configurations. This product adheres to industrial requirements though it does not have specific certifications or approvals.
The rod end is manufactured in China, aligning with international standards for mechanical components. Applications include use in manufacturing equipment, fluid power systems, construction machinery, and various industrial assemblies requiring rotary bearing solutions.
Explore further related rod ends and rotary bearings to find the ideal component for your specific industrial need within EnvMart’s extensive catalog.
Explore more products in our Rod End Bearing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this rod end is 19.05 mm.
The dynamic load rating is 27 kN, while the static load rating is 49.6 kN.
The body is made of carbon steel with clear zinc plating, while the ball component is made of AISI 52100 bearing steel, heat treated and chromium plated for hardness.
The thread standard is UNF, and the thread direction is left hand.
The outside diameter measures 44.45 mm, and the overall width is 95.25 mm.
The sliding contact surfaces are made of steel and brass, providing smooth rotational movement.
This rod end is manufactured in China.
It is suitable for industrial, mechanical, and manufacturing applications requiring precision rotary bearing solutions.
The ball component has a minimum hardness of HRC56.
The race of the rod end is constructed from brass, ensuring durability and support for the sliding contact surfaces.
The clear zinc plating on the carbon steel body provides corrosion resistance, enhancing the longevity of the rod end.
The model number of this rod end is PHSB12L.
