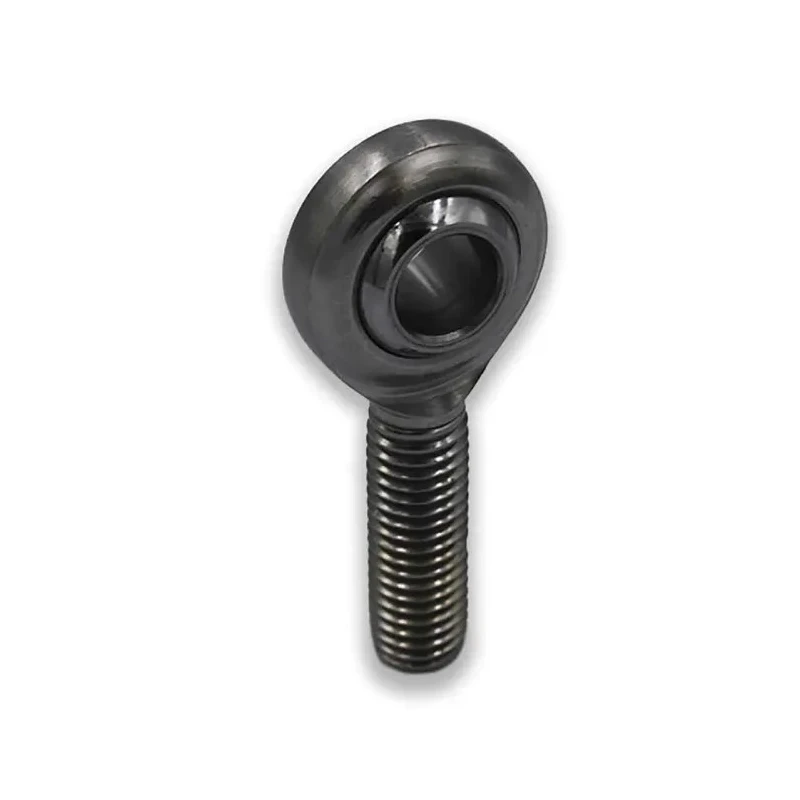

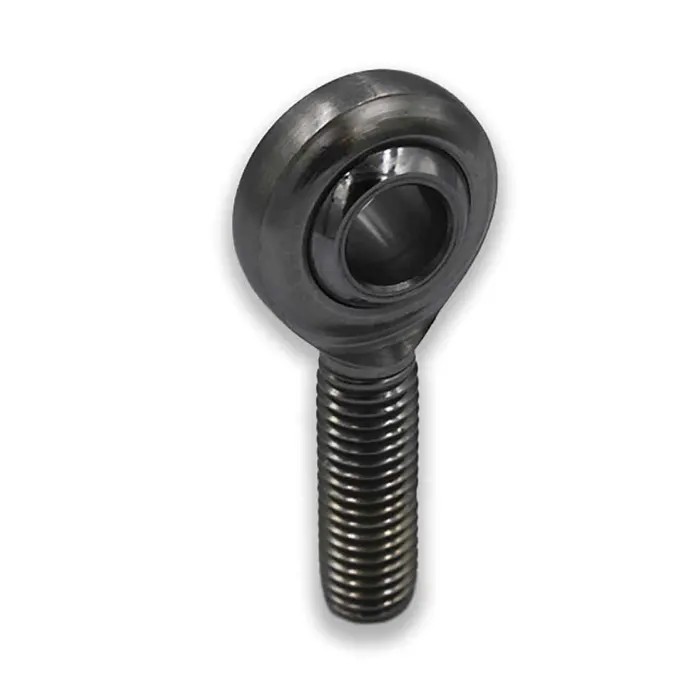

LDK M8 Male 304 Stainless Steel Rod End Metric 8mm Bore SPOS8EC x 1

LDK SPOS8EC x 1 M8 Male 304 Stainless Steel Rod End Bearing with an 8mm bore is engineered for precision and durability in mechanical and fluid power systems.

Constructed using corrosion resistant 304 stainless steel, it ensures longevity and resistance to environmental degradation. The rod end's ball component is crafted from 440C stainless steel that is heat treated and precision ground to a hardness minimum of HRC56, offering excellent wear resistance and smooth operation.

The race is manufactured from PTFE composite material providing low friction sliding surfaces this reduces wear and improves reliability during high-load and continuous operation.

Its dynamic load rating of 7.7kN and static load rating of 12.3kN make this rod end suitable for demanding industrial applications. The standard metric thread size (M8 male) and bore diameter of 8mm align with widely accepted industrial fitting norms.

The product features an outside diameter of 22mm and overall width of 53mm, making it compatible with various mechanical assemblies requiring reliable rod ends.

This rod end bearing finds utility across industrial machinery, fluid power equipment, hydraulic installations, agricultural machines, and manufacturing systems requiring robust mechanical joints.

The rod end features a M8 male connection suitable for metric threading standards. It is made from corrosion-resistant 304 stainless steel for enhanced longevity. The bore diameter is precisely 8mm for fitment accuracy. Dynamic and static load ratings are 7.7kN and 12.3kN respectively, supporting heavy-duty use.

Ball is made of heat-treated 440C stainless steel, precision ground and polished to HRC56 minimum hardness. Race component is PTFE composite, ensuring low friction and smooth sliding operation. Outside diameter is 22mm with an overall width of 53mm to fit standard assemblies.

Suitable for applications in mechanical, fluid power, and industrial machinery sectors. Manufactured to metric thread standards, with no additional certifications specified. Product condition is new and origin is China. For high-performance rod ends compatible with metric thread systems, explore the extensive range of LDK Rod End Bearings on EnvMart, catering to diverse industrial needs.
