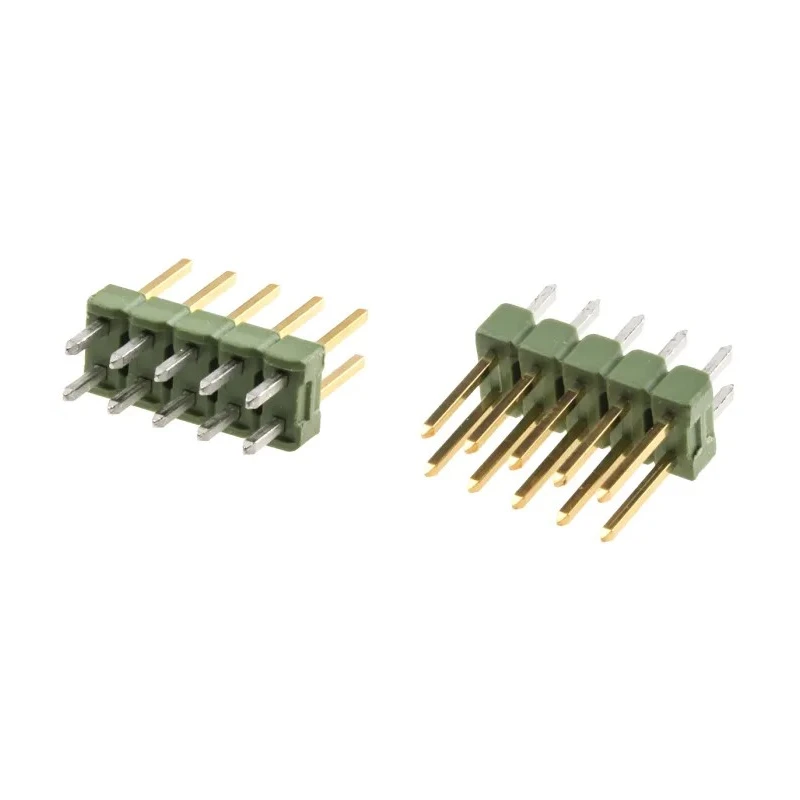

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row 826632-5

TE Connectivity 826632-5 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality PCB Pin Header featuring 10 male contacts arranged in a double row with 2.54 mm pitch. The unshrouded design improves versatility for custom configurations in electronic assemblies.

The pin header housing is made from polybutylene terephthalate that offers excellent mechanical strength and thermal resistance from -65°C to 105°C. Each brass contact is plated with gold to ensure reliable conductivity and resistance to corrosion. The straight orientation and through-hole mount type ensure dependable solder connections on PCB boards.

This connector supports a maximum current of 3A and a voltage rating of 750V, making it suitable for demanding industrial and automotive environments. Tail and mating pin lengths of 3.2 mm and 6.7 mm respectively facilitate efficient soldering and secure mating.

Part of the AMPMODU MOD II interconnect system, this header is compatible with both board-to-board and wire-to-board applications. These headers can be broken down into custom sizes to fit diverse PCB layouts, saving time for manufacturers.

Common applications include automotive controls, medical instruments, telecommunications equipment, industrial machinery, test and measurement instruments, and storage devices. Features a 2.54 mm pitch suitable for precise PCB connections.

Includes 10 gold-plated brass male contacts for reliable conductivity. Designed with a straight orientation and through hole mount for easy installation. Housing made of durable polybutylene terephthalate material. Supports operating temperatures from -65°C to 105°C.

Rated for 3A current and 750V voltage for robust electrical performance. Pin header is unshrouded allowing for flexible wiring configurations. Mating pin length is 6.7 mm and tail pin length is 3.2 mm for secure soldering.

Compatible with board-to-board and wire-to-board connector systems. Ideal for applications in automotive, industrial, medical, telecommunications, and test equipment. Discover a broad range of electronic components with TE Connectivity’s AMPMODU MOD II series at EnvMart for reliable industrial-grade PCB connection solutions.
