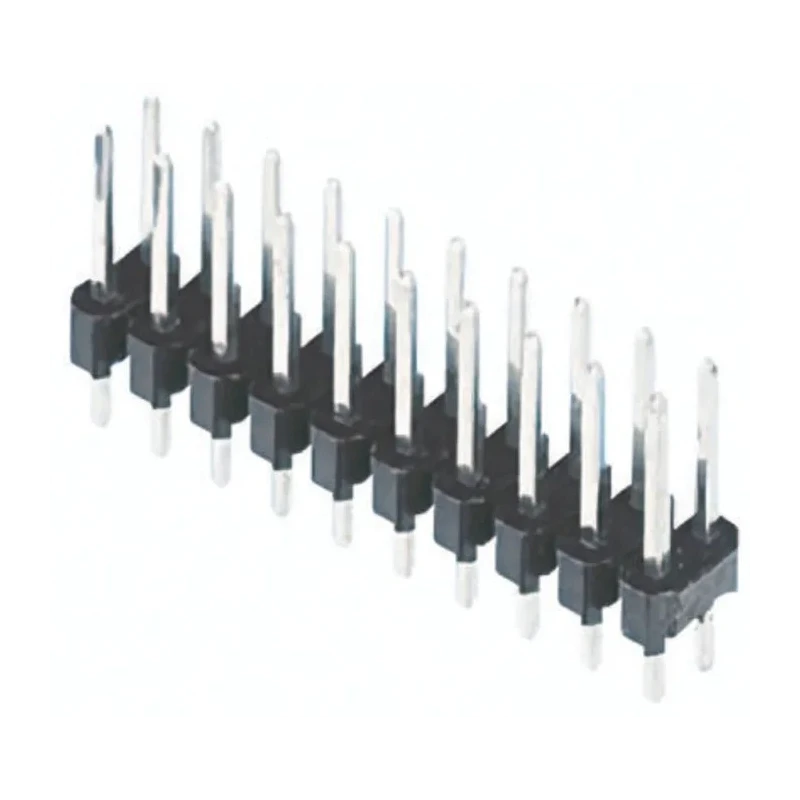

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 14 Contacts, 2.54 mm Pitch, 2 Row 826925-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826925-7 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features 14 male contacts with a 2.54 mm pitch for compact board-to-board or wire-to-board connections.
- Constructed with polybutylene terephthalate housing for durability and thermal resistance.
- Unshrouded two-row header suitable for through-hole mounting and solder termination.
- Contacts made from phosphor bronze with tin plating to ensure excellent conductivity and corrosion resistance.
- Designed for operation within -65°C to 105°C operating temperature range.
- Supports current rating of 3A and voltage rating of 750V for industrial applications.
- Tail pins length of 3.2 mm and mating pins length of 6.7 mm aid secure board connection.
- Breakaway feature enables customization to required sizes improving installation efficiency.
Product Description
TE Connectivity 826925-7 AMPMODU MOD II Series Straight Through Hole Pin Header is engineered for reliable signal interconnection in demanding environments. Featuring 14 male contacts arranged in a 2-row, 2.54 mm pitch configuration, this unshrouded header is ideal for board-to-board and wire-to-board applications.
The housing is fabricated from high-quality polybutylene terephthalate, providing excellent electrical insulation and mechanical strength. Contacts are made from phosphor bronze material with tin plating to deliver optimal conductivity and corrosion resistance, which ensures durable connections over prolonged use.
Rated for 3 amperes of current and a voltage endurance of up to 750 volts, this pin header operates effectively within temperature ranges from -65°C up to 105°C, making it suitable for industrial electronics, automotive controls, telecommunications equipment, medical instrumentation, and test devices.
The through-hole mount type allows for solder termination, facilitating a secure mechanical and electrical connection to printed circuit boards. The pin header features a breakaway design for easy customization to required lengths, thereby reducing labor and installation time.
Features 14 male contacts with a 2.54 mm pitch. Polybutylene terephthalate housing material provides durability and thermal resistance. Unshrouded two-row design suitable for through-hole mounting. Phosphor bronze contacts with tin plating ensure reliable conductivity.
Operating temperature range of -65°C to 105°C. Current rating of 3A and voltage rating of 750V. Tail pin length of 3.2 mm and mating pin length of 6.7 mm. Breakaway feature allows size customization for ease of installation.
Widely applicable across automotive, industrial automation, test equipment, computer systems, telecommunications, and medical devices, this TE Connectivity AMPMODU MOD II pin header supports robust and efficient interconnect solutions.
Explore other components in the Electronics Components and PCB Pin Header categories for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a voltage rating of 750V, making it suitable for various industrial applications.
It features a 2.54 mm pitch with 14 male contacts arranged in a two-row configuration.
The housing is made from polybutylene terephthalate, while the contacts are constructed from phosphor bronze with tin plating for enhanced conductivity and corrosion resistance.
This pin header operates effectively within a temperature range of -65°C to 105°C.
It uses solder termination, allowing for a secure mechanical and electrical connection to printed circuit boards.
The tail pin length is 3.2 mm, and the mating pin length is 6.7 mm, aiding in secure board connections.
It is designed for through-hole mounting, facilitating easy installation on printed circuit boards.
This model supports both board-to-board and wire-to-board connections, providing versatile interconnect solutions.
It features an unshrouded design, which is suitable for various applications requiring compact connections.
The country of origin for this product is India.
This pin header is widely applicable across automotive, industrial automation, telecommunications, medical devices, and test equipment.
