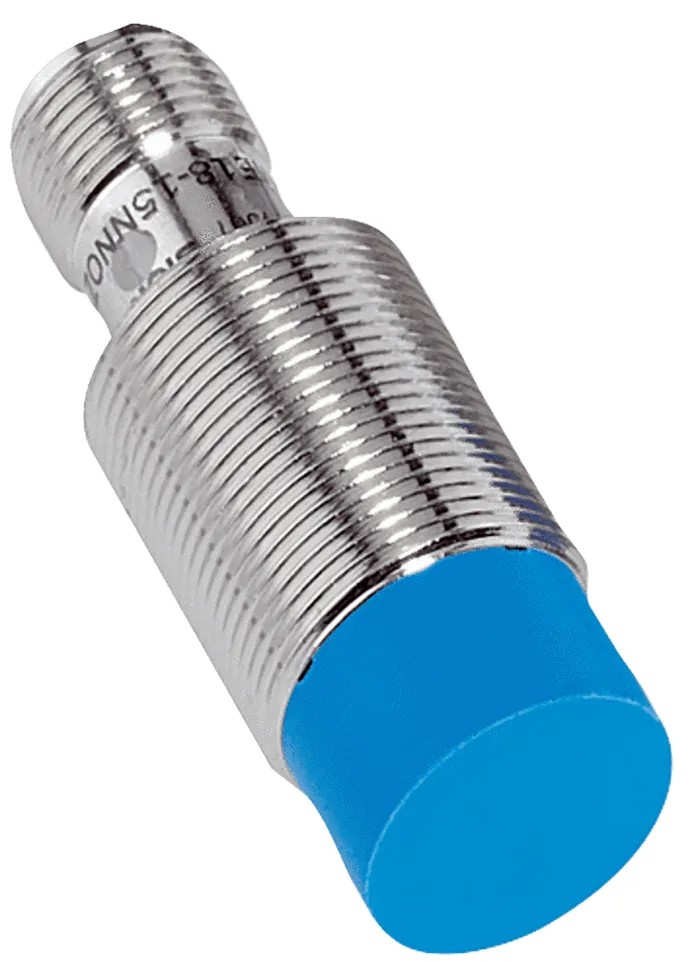

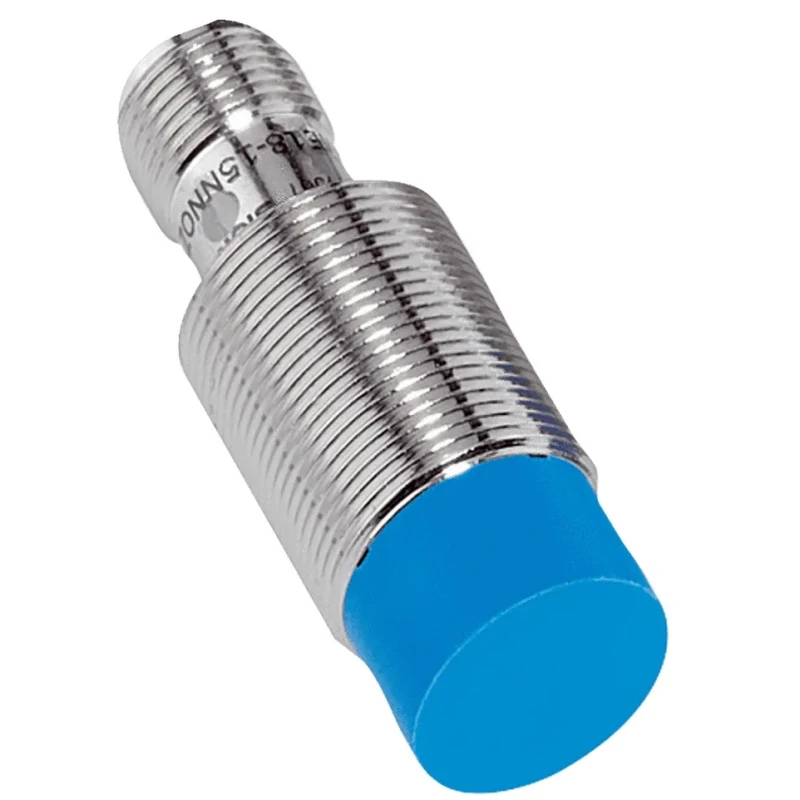

SICK Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 30 V dc 200mA IME18-20NPSZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Length | 50mm |
| Model | IME18-20NPSZC0K |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Nickel Plated Brass |
| Output type | PNP |
| Series | IME18 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin M12 Male Connector |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 200Hz |
| Standards/Approvals | CE Certified, cULus Listed |
| Maximum Supply Voltage | 30V |
| Materials Detected | Steel, Copper, Brass, Aluminium, 304 V2A Stainless Steel |
| Maximum Detection | 20mm |
| · Extended sensing ranges | 1.5 mm to 38 mm |
| · Enclosure rating | IP 67 |
Key Features
- The sensor features a rugged nickel-plated brass M18 x 1 threaded barrel housing for durable industrial use.
- It operates at a maximum supply voltage of 30 V dc with a switching current capacity of 200 mA.
- Equipped with a 4-Pin M12 male connector for reliable electrical connection.
- Designed for non-flush mounting and offers an IP67 ingress protection rating for harsh environments.
- The sensor detects various metals including steel, copper, brass, aluminium, and 304 V2A stainless steel.
- Operating temperature ranges from -25°C to 75°C ensuring performance in diverse conditions.
- Unshielded type with a maximum switching frequency of 200 Hz for efficient sensing applications.
- Certified with CE and cULus approvals assuring compliance and quality.
Product Description
SICK IME18-20NPSZC0K Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 30 V dc 200mA is designed for industrial automation and control applications requiring precise and reliable metal detection.
Constructed with a nickel-plated brass housing and plastic sensing face, this sensor provides robustness and resistance to mechanical stress, vibration, and environmental factors with an IP67 rating.
The 20 mm sensing range and unshielded design enable it to detect metals such as steel, copper, brass, aluminium, and stainless steel effectively. It supports a maximum switching frequency of 200 Hz, enabling fast and accurate switching operations.
The sensor features a 4-Pin M12 male connector and supports non-flush mounting installations, providing flexible deployment options. Operating across a temperature range from -25°C to +75°C, it functions reliably in various industrial and manufacturing environments.
With CE and cULus certifications, the IME18-20NPSZC0K sensor meets essential safety and quality standards necessary for industrial use. The rugged nickel-plated brass threaded barrel ensures durability in demanding conditions.
Extended sensing range and precise switching behavior enhance machine availability and accuracy. The robust design reduces downtime and maintenance needs for industrial automation. Unshielded construction permits operation in diverse material detection scenarios.
IP67 rating protects the sensor from dust and water ingress, suitable for harsh environments. Compact dimensions (M18 x 1 thread, 50 mm length, 12 mm width) allow integration in tight spaces. Operates with a maximum supply voltage of 30 V dc and switches currents up to 200 mA.
Compatible with various metals including 304 V2A stainless steel for versatile detection. This inductive Proximity Sensor is ideal for automated industrial processes, manufacturing, material handling, and robotics requiring precise metal detection and high reliability.
Browse the Electronics & Electricals category on EnvMart for additional reliable sensors by SICK and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30 V dc.
It can detect various metals including steel, copper, brass, aluminium, and 304 V2A stainless steel.
This sensor has a maximum detection range of 20 mm, with extended sensing ranges from 1.5 mm to 38 mm.
The sensor has an IP67 ingress protection rating, making it suitable for harsh environments.
It has a switching current capacity of 200 mA.
It features a 4-Pin M12 male connector for reliable electrical connection.
The operating temperature range is from -25°C to 75°C.
The body style of this model is a threaded barrel.
The maximum switching frequency for this sensor is 200 Hz.
No, this sensor is designed for non-flush mounting installations.
The housing is made of nickel-plated brass, providing durability for industrial use.
It is certified with CE and cULus approvals, ensuring compliance with safety and quality standards.
