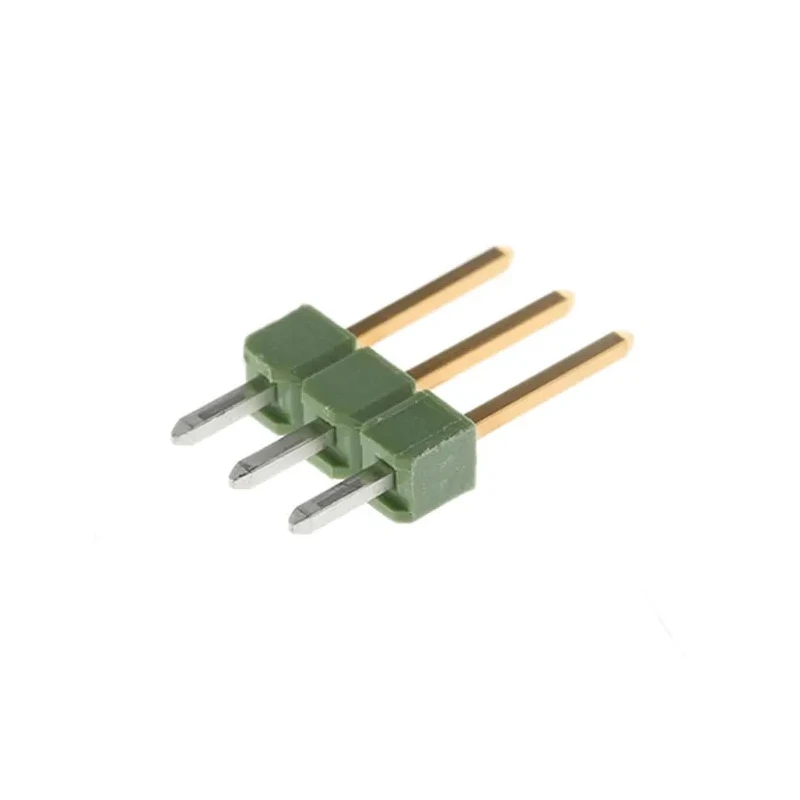

TE Connectivity AMPMODU MOD II Series Pin Header Unshrouded 3 Contact 2.54 mm Pitch 1 Row 826646-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3.0 |
| Model | 826646-3 |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board, Board-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- The pin header features 3 brass contacts plated with gold for reliable conductivity.
- It has a 2.54 mm pitch and a single row configuration suitable for wire-to-board and board-to-board connection.
- The tail pin length is 3.2 mm and the mating pin length is 5.8 mm for optimal insertion and stability.
- This versatile AMPMODU MOD II component can be broken to the required size, enabling flexible installation.
- Applications include automotive controls, industrial equipment, telecommunications, medical instruments, and computing devices.
- The connector is unshrouded offering easy inspection and soldering access.
- It supports up to 3.0 A current rated for effective electrical performance.
- Designed for quick, time-saving installation to improve manufacturing efficiency.
Product Description
TE Connectivity 826646-3 AMPMODU MOD II Series Pin Header is a high-quality, reliable connector designed for electronic applications requiring a compact and economical pin header with 3 contacts arranged in a single row and a 2.54 mm pitch.
The contacts are made of brass with gold plating to ensure excellent conductivity and corrosion resistance. This unshrouded pin header allows easy access for soldering and inspection, making it ideal for PCB mounting in both wire-to-board and board-to-board connector systems.
With a tail pin length of 3.2 mm and mating pin length of 5.8 mm, this connector ensures stable mechanical and electrical alignment in assemblies. The breakaway feature provides customization by allowing the component to be sized precisely to suit specific design requirements.
This connector supports a current rating of 3.0 A, suitable for a broad range of low power electronic devices.
Common applications span automotive controls, industrial and test equipment, computers, telecommunications devices, medical instruments, and storage equipment, reflecting its versatility in demanding industrial and commercial environments.
The pin header features 3 brass contacts plated with gold for reliable conductivity. It has a 2.54 mm pitch and a single row configuration suitable for wire-to-board and board-to-board connection. The tail pin length is 3.2 mm and the mating pin length is 5.8 mm for optimal insertion and stability.
This versatile AMPMODU MOD II component can be broken to the required size, enabling flexible installation. Applications include automotive controls, industrial equipment, telecommunications, medical instruments, and computing devices.
The connector is unshrouded offering easy inspection and soldering access. It supports up to 3.0 A current rated for effective electrical performance. Designed for quick, time-saving installation to improve manufacturing efficiency.
For specialized electronic assembly projects requiring dependable PCB pin headers with precise specifications, the TE Connectivity AMPMODU MOD II 826646-3 provides an excellent solution.
Explore more from TE Connectivity and the Electronics Components category at EnvMart for complementary products and accessories.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm.
This model features 3 contacts arranged in a single row.
It supports a current rating of 3.0 A.
The contacts are made of brass and are plated with gold for reliable conductivity.
The tail pin length is 3.2 mm, and the mating pin length is 5.8 mm.
This connector is unshrouded, allowing easy inspection and soldering access.
It supports wire-to-board and board-to-board connections.
The country of origin for this product is India.
It is suitable for applications in automotive controls, industrial equipment, telecommunications, medical instruments, and computing devices.
Yes, this model can be broken to the required size for flexible installation.
The series name of this connector is AMPMODU MOD II.
The design allows for quick, time-saving installation, enhancing manufacturing efficiency.
