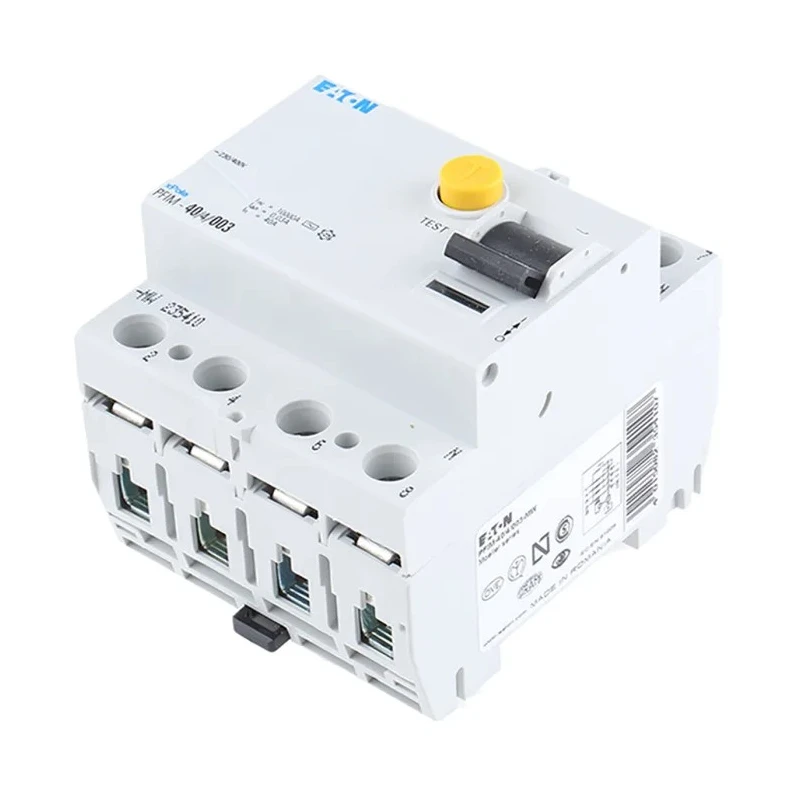

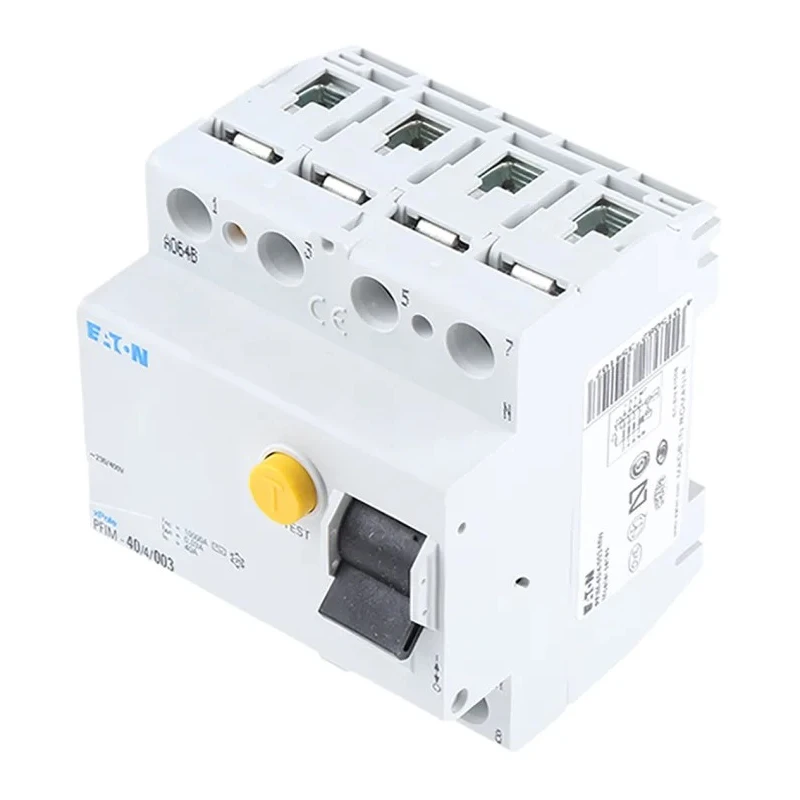

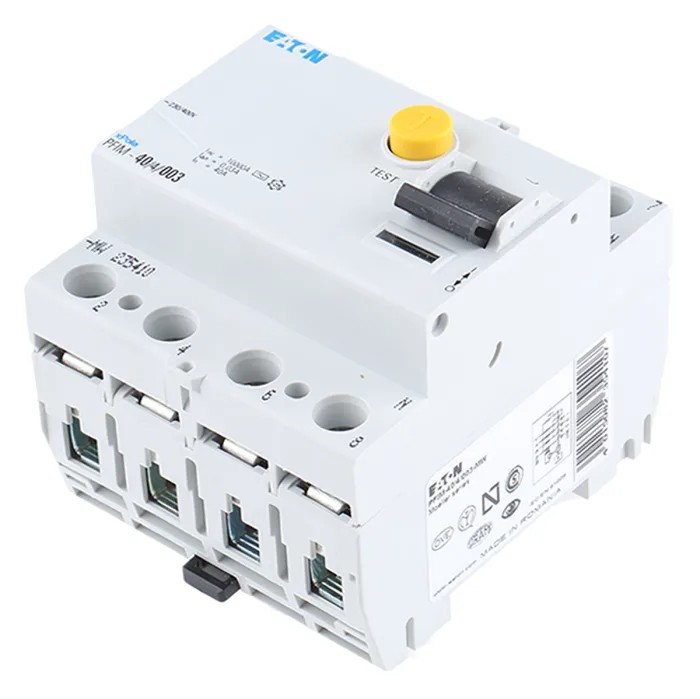

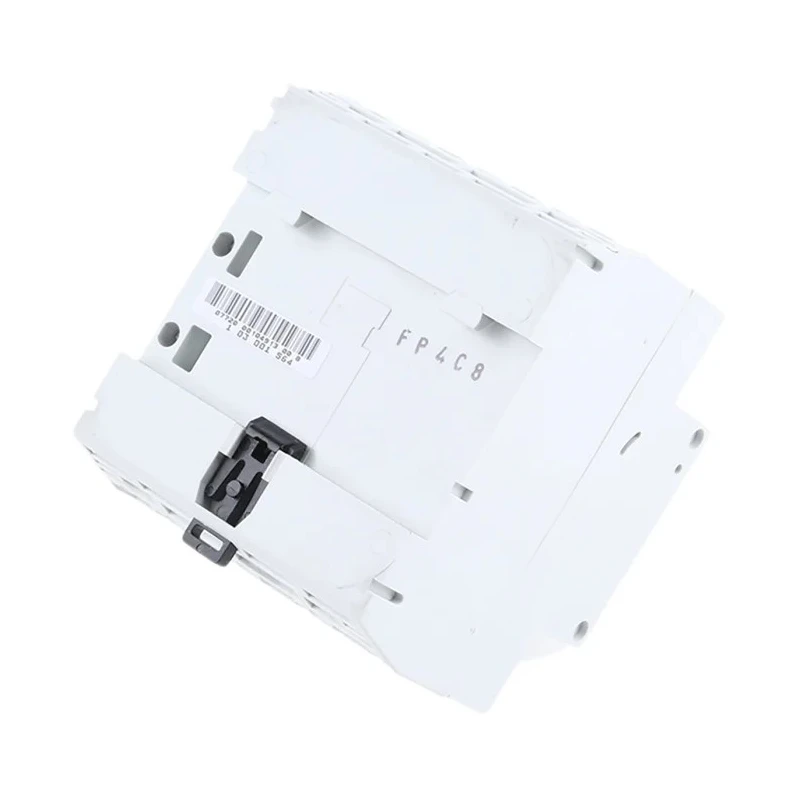

Eaton PFIM Series Residual Current Circuit Breaker 40A 3+N-Pole 30 mA Type AC 500A Breaking Capacity 235410 PFIM-40/4/003-MW

Eaton 235410 PFIM-40/4/003-MW Residual Current Circuit Breaker is designed to offer exceptional earth leakage protection in both commercial and residential electrical installations. This device supports a current rating of 40 amperes and features a 3+N pole configuration, ensuring dependable operation across three phases plus neutral.

The unit operates on a 230V AC supply and has a trip sensitivity of 30 mA, classified under Type AC tripping characteristics. This sensitivity enables effective detection and interruption of leakage currents, enhancing electrical safety and preventing potential hazards.

With a breaking capacity rated at 500 amperes and an instantaneous break time, the PFIM breaker quickly disconnects faulty circuits, minimizing damage and risk. The device mounts easily on DIN rails and utilizes screw terminals for secure wiring connections. Its dimensions of 70 mm width, 80 mm height, and 70.5 mm depth make integration into control panels compact and straightforward.

Constructed in accordance with RoHS compliance and IEC/EN 61008 standards, this residual current circuit breaker is reliable and environmentally responsible. The reset actuator is lever type, facilitating quick manual reset following a trip event to restore circuit operation promptly.

This product is part of Eaton's PFIM series, developed as spares and replacements compatible with F&G Concept 2000 consumer units. It is suitable for a wide range of industrial, commercial, and residential electrical protection applications, enhancing safety in distribution boards and control panels.

Rated current of 40 A for various electrical load requirements. 3+N poles to facilitate multi-phase circuit protection. 30 mA trip sensitivity for precise earth leakage detection. DIN rail mount and screw terminals for ease of installation and maintenance.

Instantaneous break time to promptly cut off dangerous faults. Compliant with key industry safety standards and RoHS directives. Lever reset actuator for straightforward manual reset. Compact size for versatile panel integration.

Designed for commercial and residential electrical safety. Browse Eaton products and other Residual Current Circuit Breakers on EnvMart for more options and technical details.
