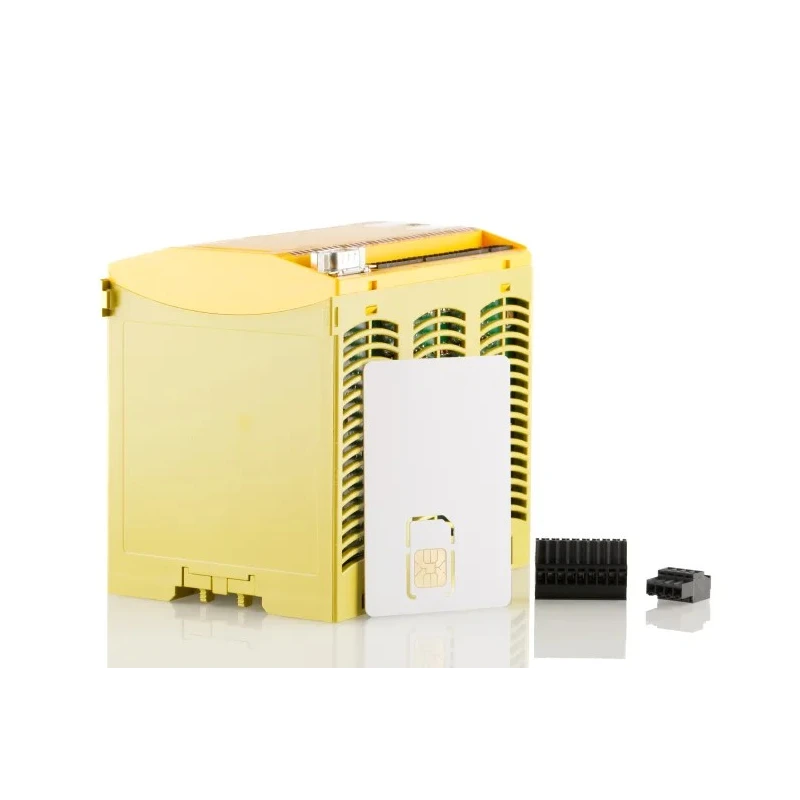

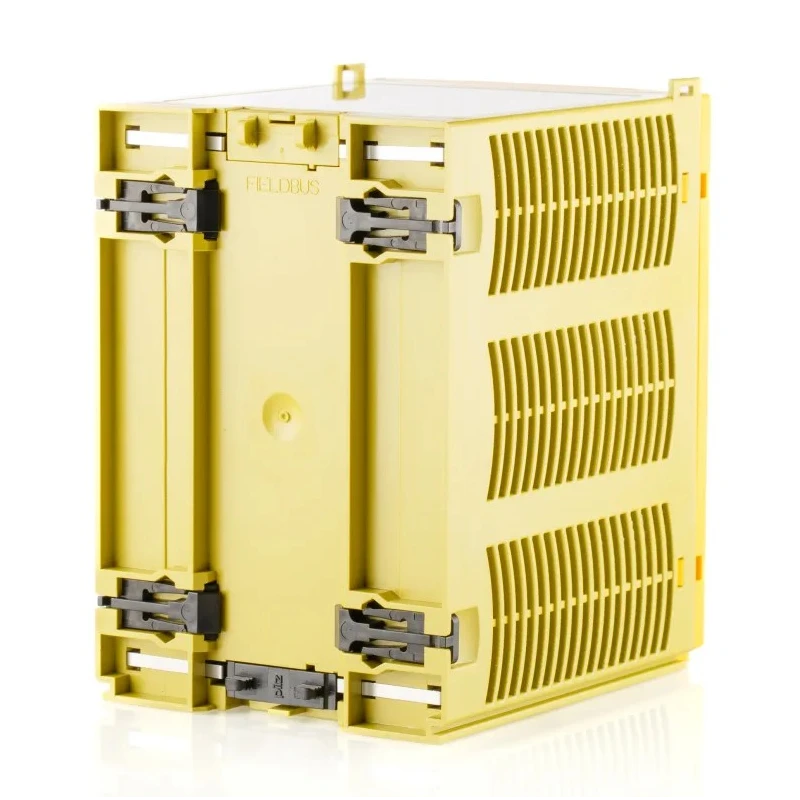

Omron PNOZmulti Series Safety Controller 20 Safety Inputs 6 Safety Outputs 24V DC KIT773100
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Omron |
| Length | 94mm |
| Model | KIT773100 |
| Depth | 121mm |
| IP Rating | IP20 |
| Width | 135mm |
| Mount Type | DIN Rail |
| Series | PNOZmulti |
| Safety Category | 4 |
| Supply Voltage | 24V dc |
| Standards/Approvals | CE, cULus |
| Contact Voltage | 240V ac |
| Contact Current | 6A |
| Number of Safety Inputs | 20 |
| Number of Safety Outputs | 6 |
| Number of I/Os | 26 |
| Configuration software and pre | license sold separately |
| Plug | in screw terminals and 32K SIM card |
| Two | hand button |
| Circuit is redundant with built | in self: monitoring |
| EN 60204 | 1 |
| NFPA 79 | 2002 |
| UL, CCC, GOST R, TUV, NFPA 79 | 2002, UL508, OSHA |
| Omron NX Series Safety ControllerBrand | Omron |
| Pilz Safety Controller, 20 Safety Inputs, 4 Safety Outputs, 24V dcBrand | Pilz |
Key Features
- Features 20 safety inputs for comprehensive machine safety monitoring.
- Includes 6 safety outputs combining positive guided relay and semiconductor outputs.
- Equipped with self-monitoring and redundancy to ensure safety function under component failure.
- Mounts on DIN rail for easy installation and space-saving integration.
- Supports up to 8 expansion modules and 1 fieldbus module for scalable safety configurations.
- Designed for use in industrial, manufacturing, and automation control systems.
- Diagnostic LEDs indicate status of supply voltage, input, and output circuits.
- Utilizes plug-in screw terminals and includes a 32K SIM card slot for configuration data.
Product Description

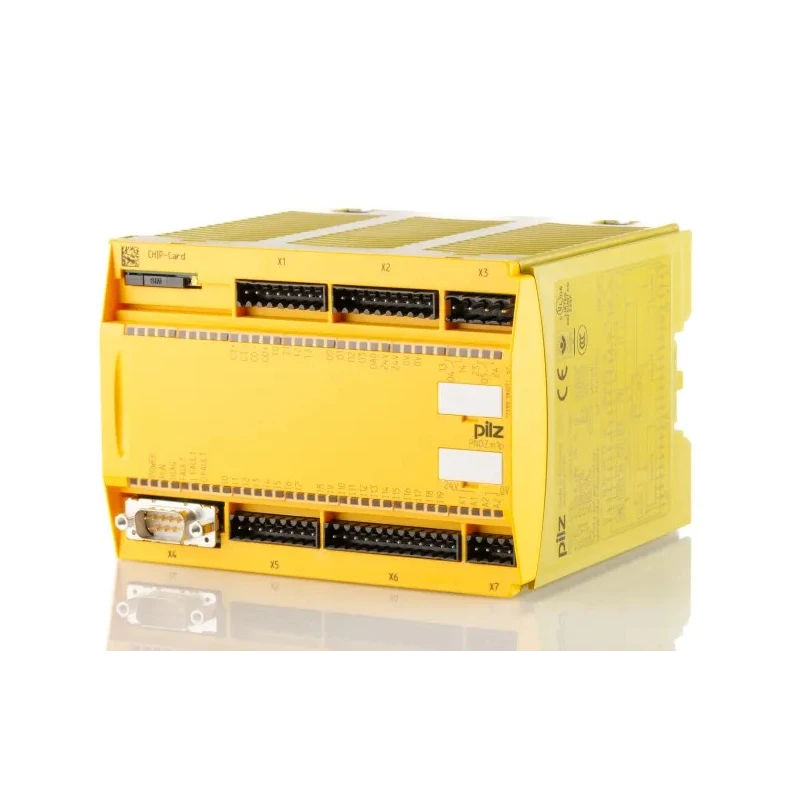

Pilz KIT773100 PNOZmulti Series Safety Controller is a high-performance safety controller featuring 20 safety inputs and 6 safety outputs operating at 24V DC. It is engineered to deliver reliable safety automation in demanding industrial and manufacturing environments.
This innovative safety controller integrates positive guided relay outputs alongside semiconductor outputs to maintain effective safety functions even during component failures. The relay contacts provide safe separation via increased insulation and are periodically tested for disconnection integrity.
Designed for DIN rail mounting, the controller facilitates streamlined installation within control panels, supporting scalability with up to 8 expansion modules and a fieldbus module. The device includes built-in self-monitoring and redundant circuitry to assure continuous safety operation.
Operational features include support for emergency stop pushbuttons, two-hand control buttons, safety gate limit switches, reset buttons, light barriers, enabling switches, and mode selectors for operating safety mats. Diagnostic LEDs aid maintenance by providing clear status on diagnostics, supply voltage, outputs, and inputs.
The controller's configuration requires separately sold software licenses and an adapter cable for PC programming. Plug-in screw terminals and a 32K SIM card accommodate secure and flexible configuration storage.
Compliance and certifications include CE, cULus, UL listing, CCC, GOST R, TUV, NFPA 79:2002, UL508, and OSHA standards, underscoring the device's global suitability for safety automation applications.
This Pilz safety controller is ideal for integration into industrial automation, manufacturing safety systems, process control, and other high-demand safety monitoring environments requiring reliable and certified safety controllers.
Explore the range of Pilz Safety Controllers and trusted automation components on EnvMart for enhanced operational safety and compliance. Features 20 safety inputs for comprehensive machine safety monitoring. Includes 6 safety outputs combining positive guided relay and semiconductor outputs.
Equipped with self-monitoring and redundancy to ensure safety function under component failure. Mounts on DIN rail for easy installation and space-saving integration. Supports up to 8 expansion modules and 1 fieldbus module for scalable safety configurations.
Designed for use in industrial, manufacturing, and automation control systems. Diagnostic LEDs indicate status of supply voltage, input, and output circuits. Utilizes plug-in screw terminals and includes a 32K SIM card slot for configuration data.
Meets multiple safety and quality standards including CE, cULus, UL, CCC, TUV, and NFPA 79:2002. IP20 protection rating suitable for controlled electrical environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The safety controller operates at a supply voltage of 24V DC.
This model features 20 safety inputs for comprehensive machine safety monitoring.
The dimensions are 135mm in width, 121mm in depth, and 94mm in length.
It has an IP20 protection rating, suitable for controlled electrical environments.
It includes 6 safety outputs, combining positive guided relay and semiconductor outputs.
This unit is designed for DIN rail mounting, facilitating easy installation.
It complies with Safety Category 4, ensuring high-level safety functions.
It meets several standards including CE, cULus, UL, CCC, TUV, and NFPA 79:2002.
It utilizes plug-in screw terminals for secure connections.
Yes, it supports up to 8 expansion modules and 1 fieldbus module for scalable configurations.
The contact voltage is 240V AC with a contact current rating of 6A.
Configuration requires separately sold software licenses and an adapter cable for PC programming.
