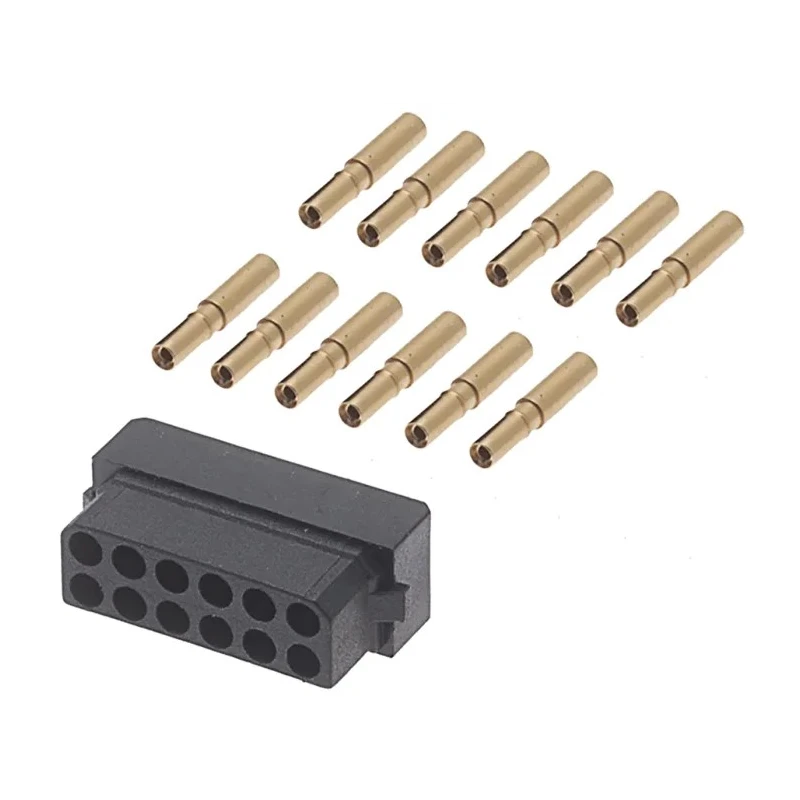

HARWIN Datamate PCB Connector Kit Containing Crimps 12 way DIL Female Shell M80-8891205

HARWIN M80-8891205 PCB Connector Kit Containing Crimps 12 way DIL Female Shell is part of the Datamate range, designed with a compact 2mm pitch for high reliability in demanding applications such as military, aerospace, telecommunications, and industrial equipment.

This connector kit contains a 12 way DIL female shell housing along with loose crimp contacts made from beryllium copper, featuring a 4 finger clip design to withstand extreme temperature ranges, high vibration, and shock environments.

The housings are fully shrouded for contact protection and include polarization features to prevent mis-mating, ensuring secure and reliable connections even under severe conditions.

The large bore contacts in this kit accommodate 22 AWG wire size, enhancing connectivity robustness for critical applications in data, robotics, and oil and gas industries.

Datamate connectors are internationally recognized for use in commercial off-the-shelf (COTS) programs and are designed to endure numerous mating cycles without performance degradation.

This product complies with BS9525-F0033 and CECC-75101-008 standards, reflecting its quality and suitability for rigorous industrial and military use cases. Set contains 1 connector housing and multiple crimp contacts suitable for assembly in field or production environments.

The kit includes crimp contacts and connector housing for 12 way DIL female shell configuration. Beryllium copper 4 finger contacts provide superior durability and vibration resistance. Fully shrouded housing ensures contact safety and polarization prevents incorrect mating.

Designed for high reliability in military, aerospace, and industrial applications. Compliant with international standards BS9525-F0033 and CECC-75101-008. Supports 22 AWG wire size with large bore contacts for robust connections.

Suitable for harsh environments and extensive mating cycles without performance loss. Explore more high quality Connector Kits and related electronic components with EnvMart's professional catalog.
