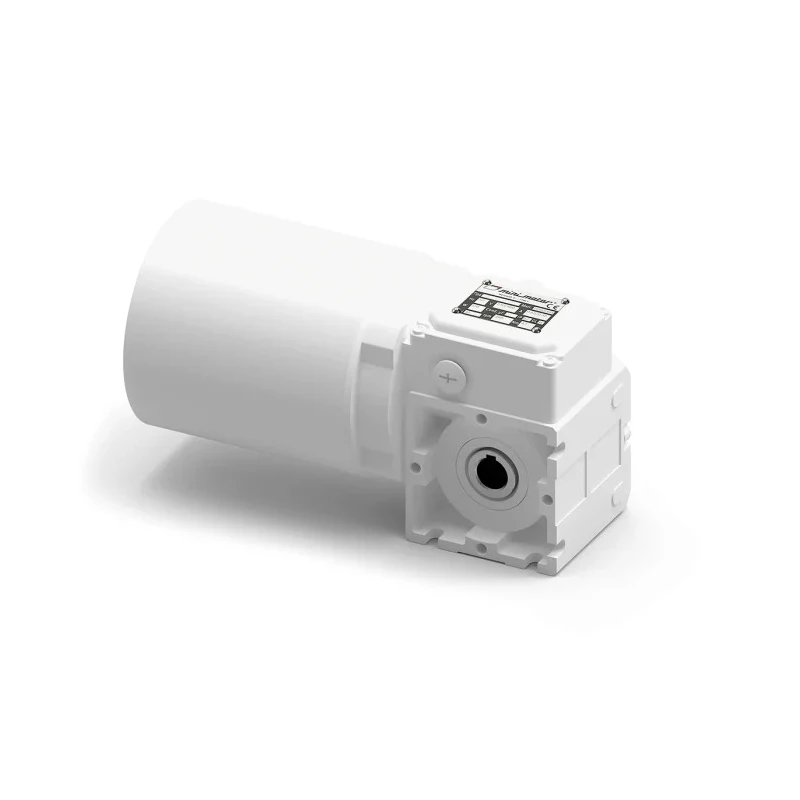

Mini Motor AC Worm Geared Motor 290W 2-Pole 400V Aluminium Steel Housing XCF5T2-50-B3

Mini Motor XCF5T2-50-B3 is a high-quality AC worm geared motor delivering 290 watts of power at 400 volts with 2 poles. It is specifically designed for industrial and automation use, featuring a robust asynchronous three-phase motor with aluminium and steel housing built to withstand harsh environments. The motor provides an IP67 protection rating according to IEC/EN 60529, ensuring reliable operation in dusty and water-exposed conditions.

The worm gearhead with a 50:1 ratio is housed in a die-cast aluminium casing. The gear components include a special bronze wheel rim with 120/160 HB hardness and a hardened steel worm gear running on ball and roller bearings to ensure durability and smooth operation. The output shaft is made of stainless steel, enhancing corrosion resistance in demanding settings. The lubrication system uses specialized long-lasting oil, and sealing rings are engineered to perform under high temperatures.

This motor delivers a rated maximum torque of 31.4 Nm and an output speed of 56 rpm, suitable for applications requiring precise motion control and high torque. The compact dimensions of 291 mm length, 151 mm depth, and 96 mm width facilitate installation in constrained spaces. It has a current rating of 1.56 A and is a part of the XCF series.

The Mini Motor XCF5T2-50-B3 is ideally suited for industrial environments such as automation, electrical machinery, HVAC systems, manufacturing lines, and robotic actuations. Its epoxy protective coating prevents dirt accumulation and eliminates external fans, supporting smooth and low-maintenance operation.

The motor features an asynchronous three-phase design with 2 poles ensuring efficient operation. Equipped with a worm gearhead type and a 50:1 gear ratio for high torque output. Provides a rated power of 290 watts and an output speed of 56 rpm suitable for various industrial applications.

Incorporates an IP67 protection rating, ensuring the motor is dust tight and protected from water immersion. Gear unit uses die-cast aluminium casing with special bronze wheel rim and hardened steel worm gear for durability.

Output shaft constructed from stainless steel for enhanced corrosion resistance. Lubrication utilizes specialized long-lasting oil, and sealing rings are designed for high temperature endurance. Rated maximum output torque of 31.4 Nm supports demanding mechanical loads.

The motor dimensions are 291 mm length, 151 mm depth, and 96 mm width for compact installation. This product is manufactured in Italy, meeting RoHS and IEC/EN 60529 compliance standards. Explore more AC geared motors and automation solutions in the Motors & Pumps category at EnvMart for your industrial needs.
