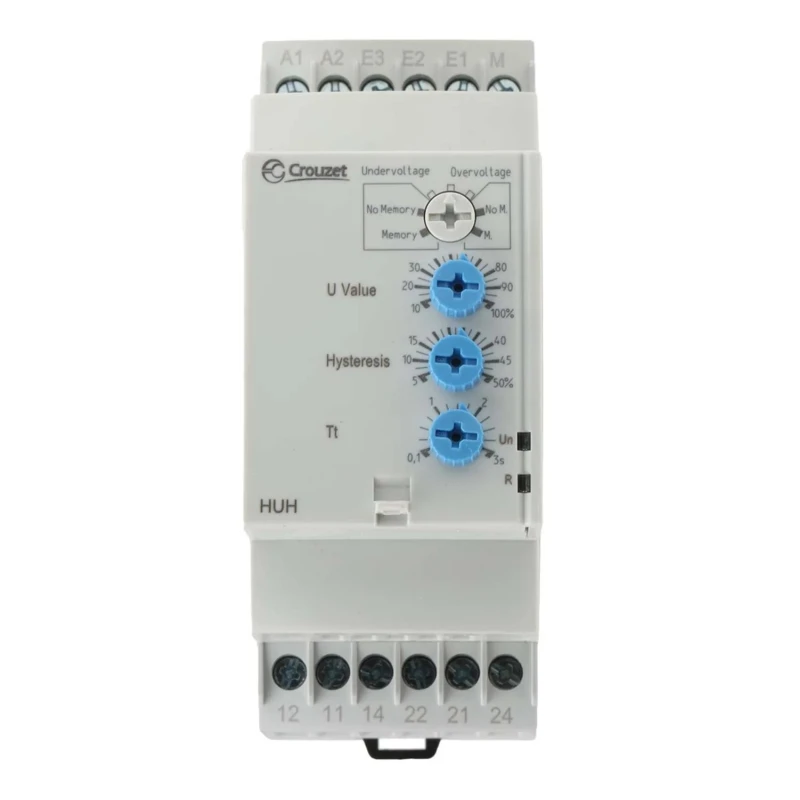

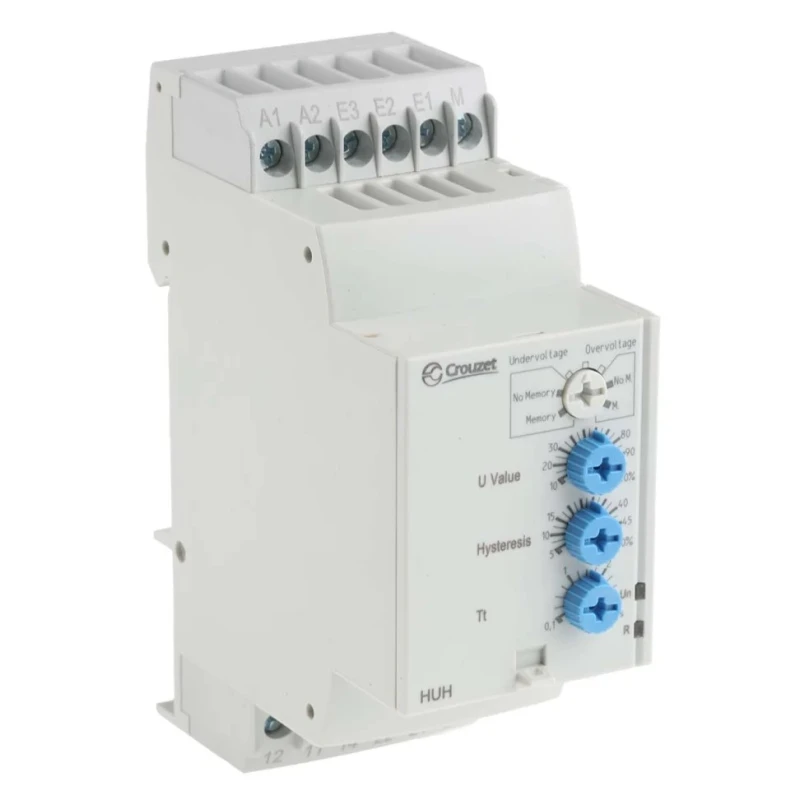

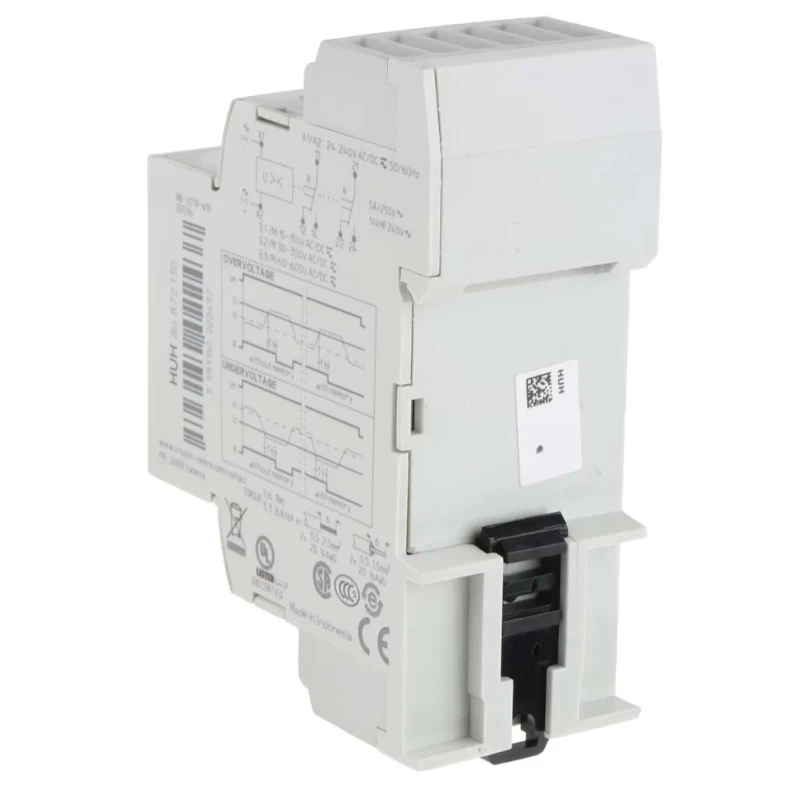

Crouzet Monitoring Relay, 1 Phase, 15/600 V Monitor Range, DPDT Contact Configuration, DIN Rail Mount, 24V AC, 240V 84872130
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crouzet |
| Height | 92.6mm |
| Function | Undervoltage Monitoring |
| Length | 69mm |
| Model | 84872130 |
| IP Rating | IP30, IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | HUH |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Electrical Phase | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 240 V dc |
| Supply AC Voltage | 24, 240V ac |
| Monitoring Voltage Range | 15/600 V |
| Schneider Electric Monitoring Relay, DPDT, DIN Rail, 240V ac 240 V dcBrand | Schneider Electric |
Key Features
- Suitable for AC and DC supply voltages of 24V AC and 240V AC/DC respectively.
- Equipped with a 250V AC switching voltage and 5A contact current capability.
- Rated with IP30 and IP20 ingress protection for durability.
- Operates reliably between -20°C and 50°C ambient temperature range.
- Meets multiple safety and quality standards including UL, CSA, IEC/EN 50178, WEEE, RoHS, CE, GL.
- Compact size with dimensions of 69mm length, 35mm width, and 92.6mm height.
- Features automatic AC/DC recognition and selectable memory functions for monitoring.
Product Description
Crouzet 84872130 is a high-quality monitoring relay designed for single-phase undervoltage monitoring applications. It features a 15/600 V monitoring voltage range, DPDT contact configuration, and is intended for DIN rail mounting, making it suitable for seamless integration in electrical control panels.
This relay supports both AC and DC supply voltages, including 24V AC and 240V AC/DC, with a switching voltage rating of 250V AC and contact current capability of 5A. It offers robust performance with IP30 and IP20 ratings protecting against ingress of solid objects, and operates effectively within a temperature range of -20°C to 50°C.
The device complies with international standards such as UL, CSA, IEC/EN 50178, WEEE, RoHS, CE, IEC/EN 61000-6-3, GL, and IEC/EN 61000-6-2, ensuring safety and reliability in industrial environments.
Its compact form factor of 69mm length, 35mm width, and 92.6mm height allows for efficient use of panel space. The relay features automatic AC/DC voltage recognition and selectable memory functions to enhance monitoring accuracy.
This monitoring relay is ideal for industrial automation, electrical control systems, manufacturing, HVAC, and other applications requiring precise undervoltage monitoring for equipment protection and operational safety.
Suitable for single-phase undervoltage monitoring applications. DPDT contact configuration ensures versatile switching options. DIN rail mounting for easy installation and integration. Automatic AC/DC voltage recognition enhances usability.
Selectable memory function improves monitoring control. Compliant with multiple international safety and environmental standards. Durable IP30/IP20 rated housing suitable for industrial environments. Explore more from Crouzet Monitoring Relay series and related electrical control components on EnvMart for advanced industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring voltage range of this relay is 15 to 600 V.
It supports both 24V AC and 240V AC/DC supply voltages.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The relay has a contact current capability of 5A.
The dimensions are 69mm in length, 35mm in width, and 92.6mm in height.
It operates effectively within a temperature range of -20°C to 50°C.
This model is designed for DIN rail mounting, facilitating easy installation.
It is rated IP30 and IP20 for ingress protection against solid objects.
It meets multiple safety and quality standards including UL, CSA, IEC/EN 50178, WEEE, RoHS, CE, and GL.
Yes, it features automatic AC/DC voltage recognition for enhanced usability.
It is designed for undervoltage monitoring applications, providing protection for equipment.
The country of origin for this relay is India.
