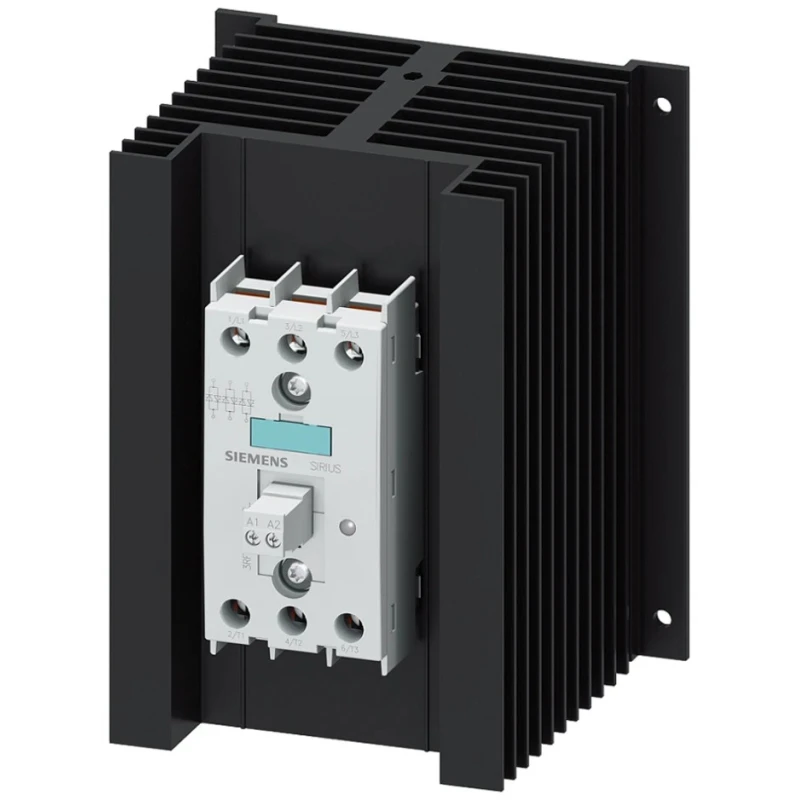

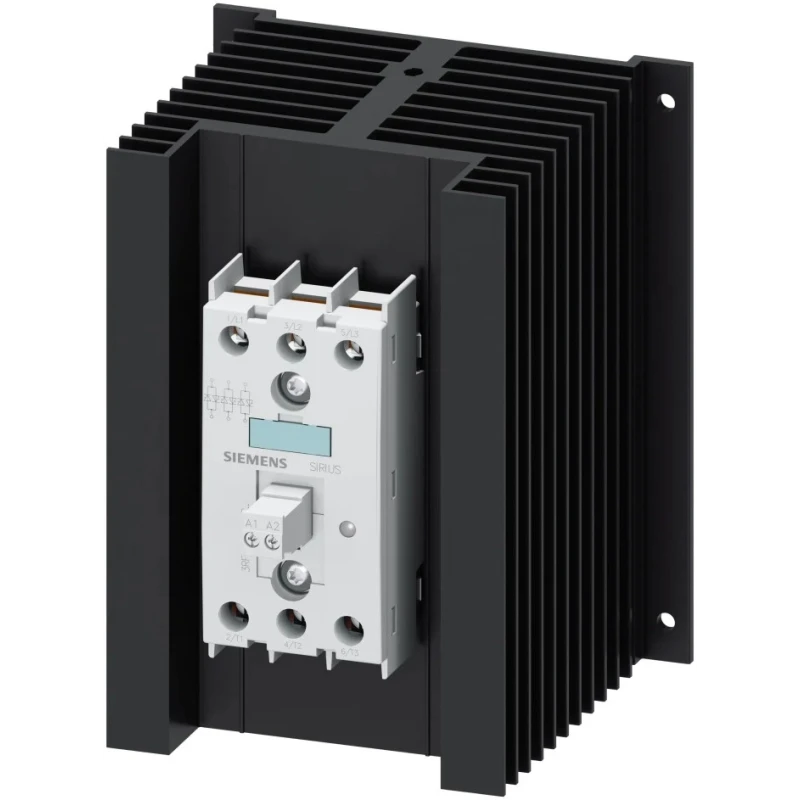

Siemens Solid State Relay 3RF2 Series, 50A Load Current, DIN Rail Mount, 600V Load Voltage, 4-30V DC Control 3RF2450-1AC45
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Height | 180mm |
| Length | 157.5mm |
| Model | 3RF2450-1AC45 |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Output type | Thyristor |
| Series | 3RF2 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PNO |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | EAC, CSA, CE, VDE, UL, UKCA, RoHS, RCM |
| Maximum Load Voltage | 600V |
| Minimum Load Voltage | 48V |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 30V dc |
| Off State Leakage Current | 10mA |
Key Features
- Designed for DIN rail mounting for quick and secure installation.
- Thyristor output type ensures efficient switching performance.
- Zero cross switching function minimizes electrical noise and stress.
- Operating temperature range from -25°C to 60°C suits demanding environments.
- Off-state leakage current is minimal at 10mA, reducing power waste.
- Secure screw terminals provide reliable electrical connection stability.
- Handles surge currents up to 1150A for robust fault tolerance.
- Made in Germany offering assured quality and durability.
Product Description
Siemens 3RF2450-1AC45 Solid State Relay from the 3RF2 Series handles a maximum load current of 50 amps and a maximum load voltage of 600 volts, controlled via 4 to 30 volts DC. This robust relay is engineered for DIN rail mounting, enabling fast, tool-free installation in electrical cabinets.
The solid state relay operates using thyristor output technology with zero cross switching to reduce electrical interference and extend appliance life. Its swift switch-on time of 1 millisecond and half cycle response makes it suitable for applications demanding rapid switching.
The device supports an operating temperature range from -25°C to 60°C, making it reliable for industrial, manufacturing, and automation environments requiring thermal endurance. The low off-state leakage current of just 10mA ensures energy efficiency during standby.
Secure screw terminals prevent connection disruption from vibrations or movement. The relay's compact size (180 mm height, 157.5 mm length, 45 mm width) enables integration into space-constrained control panels. It is certified to standards including EAC, CSA, CE, VDE, UL, UKCA, RoHS, and RCM.
Commonly used in power distribution systems and electric motor starters, this Siemens solid state relay ensures long operational life by eliminating mechanical wear through semiconductor switching.
Designed for DIN rail mounting with fast snap-in installation. Zero cross switching reduces voltage and current surges. Handles peak surge currents up to 1150A for durability. Robust operation in temperatures from -25°C to 60°C.
Compact dimensions suitable for control panels. Minimal off-state leakage current improves energy efficiency. Secure screw terminals maintain reliable electrical connections. Certified by multiple international safety and quality standards.
This product, made in Germany by Siemens, is ideal for industrial automation, electrical cabinets, power distribution, and motor control applications. EnvMart offers this reliable Solid State Relay for enhanced electrical system performance and longevity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current of this solid state relay is 50 amps.
This model has a maximum load voltage rating of 600 volts.
It utilizes a thyristor output type for efficient switching performance.
The operating temperature range is from -25°C to 60°C, suitable for demanding environments.
This relay is designed for DIN rail mounting, allowing for quick and secure installation.
The off-state leakage current is minimal at 10mA, which helps reduce power waste.
The dimensions are 180 mm in height, 157.5 mm in length, and 45 mm in width.
It features secure screw terminals that provide reliable electrical connection stability.
It is certified to standards including EAC, CSA, CE, VDE, UL, UKCA, RoHS, and RCM.
This relay can handle surge currents up to 1150A, ensuring robust fault tolerance.
The minimum control voltage required for this relay is 4V DC.
It is commonly used in power distribution systems and electric motor starters.
