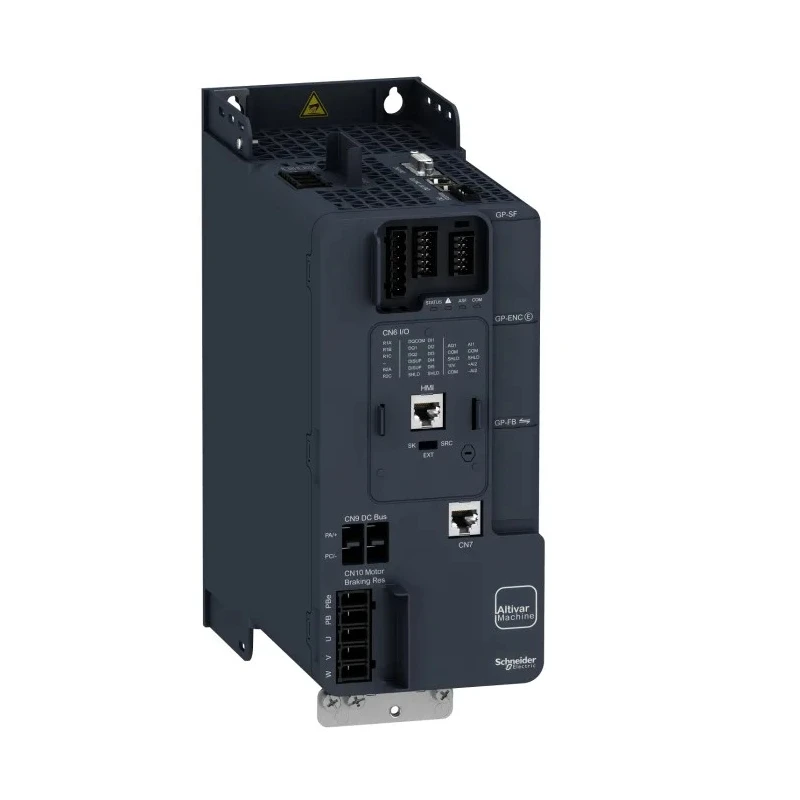

Schneider Electric Inverter Drive 7.5 kW 3 Phase Cabinet Mount ATV340U75N4
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340U75N4 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 110mm |
| Series | ATV340 |
| Overall Width | 234mm |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -15°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 25.6A |
| Standards/Approvals | CSA, C-Tick, IEC, TUV, RoHS, REACH, CE, EAC, EAN, UL |
| Maximum Supply Voltage | 480V |
| Overall Depth | 270mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Permanent Magnet Motor, Reluctance Motor |
Key Features
- Variable speed drive supports synchronous and asynchronous motors.
- Operates on supply voltage from 380V to 480V AC.
- Maximum output current rated at 25.6 A.
- Designed for harsh environments with IP20 rating and temperature range from -15°C to 50°C.
- Supports permanent magnet and reluctance motors.
- Includes embedded Ethernet communication and expansion slots for modules.
- Complies with international standards and offers functional safety features.
Product Description
Schneider Electric ATV340U75N4 inverter drive provides robust 7.5 kW variable speed control for 3-phase motors, ideal for industrial automation and control applications. It fits cabinet mount installations with compact dimensions (110 mm length, 234 mm width, 270 mm depth) and weighs approximately 3 kg. This inverter operates from 380V to 480V AC supply and delivers up to 25.6 A output current, supporting both permanent magnet and reluctance motors.
Built to endure harsh conditions including vibration, shock, non-conductive dust, and ambient temperatures up to 50°C, the ATV340U75N4 offers IP20 protection and high reliability. It integrates Modbus serial communication as standard, with optional Ethernet connectivity and slots for encoder, I/O, and communication modules, enabling advanced control and monitoring capabilities.
It features constant torque rating with overload capacity, embedded safety functions including STO, and compliance with IEC and UL standards, making it suitable for packaging, material handling, hoisting, and manufacturing machinery. The drive supports vertical panel mounting with four fixing holes and easily configures via Schneider Electric’s EcoStruxure Machine platform using SoMachine and SoMove software.
Industrial-grade 7.5 kW inverter drive for variable speed motor control. Supports 3-phase power with rugged cabinet mount design. Wide supply voltage range and output current up to 25.6 A. Designed for harsh environmental conditions with IP20 rating.
Compatible with permanent magnet and reluctance motors. Modular expandability with communication and interface modules. Certified to international safety and EMC standards. Compact size enabling easy integration in control panels.
This product is a sustainable solution from Schneider Electric’s Better World initiative, offering energy savings and enhanced machine productivity. It is suitable for electrical, automation, manufacturing, and material handling industries seeking reliable and efficient inverter drives. Browse the full range of Inverter Drives and motor control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV340U75N4 inverter drive has a power rating of 7.5 kW.
This model has a maximum output current rated at 25.6 A.
It operates on a supply voltage range from 380V to 480V AC.
The inverter drive is compatible with permanent magnet motors and reluctance motors.
The ATV340U75N4 has an IP20 rating, indicating protection against non-conductive dust.
It has dimensions of 110 mm in length, 234 mm in width, and 270 mm in depth.
The operating temperature range for this model is from -15°C to 50°C.
The inverter drive includes embedded Modbus serial communication and has an option for Ethernet connectivity.
This inverter drive is designed for cabinet mounting.
It complies with several standards including CSA, C-Tick, IEC, TUV, RoHS, REACH, CE, EAC, EAN, and UL.
It features embedded safety functions including Safe Torque Off (STO) to enhance operational safety.
The ATV340U75N4 is part of Schneider Electric’s Better World initiative, which claims to save energy and enhance machine productivity.
