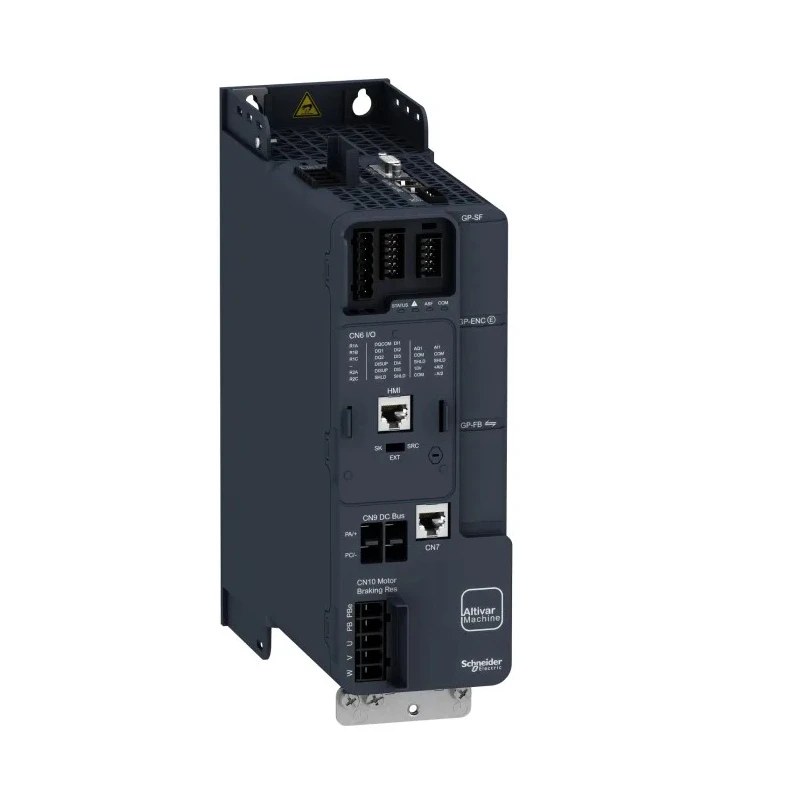

Schneider Electric Inverter Drive, ATV340U07N4, 750 W, 3 Phase, 480V, 3.4 A, Variable Speed, IP20, Cabinet Mount ATV340U07N4

Schneider Electric ATV340U07N4 inverter drive is a high-quality variable speed drive rated at 750 W designed for 3-phase permanent magnet and reluctance motors. It is ideal for industrial automation applications requiring precise speed and torque control.

This model operates with a supply voltage range of 380 V to 480 V and delivers a maximum output current of 3.4 A. The device supports a wide output frequency range from 0.1 Hz up to 599 Hz, enabling flexible motor speed regulation.

Durability is ensured with an IP20 rating and a cabinet mount design, suitable for harsh environments with resistance to vibration, shock, and non-conductive dust. It is capable of functioning within a temperature range of -15°C to 50°C.

The ATV340U07N4 features Modbus serial communication as standard, with optional embedded Ethernet for enhanced connectivity. It is fully compatible with Schneider Electric’s EcoStruxure Machine platform through DTM, enabling configuration and diagnostics via SoMachine and SoMove software.

Measuring 85 mm in length, 232.5 mm in width, and 270 mm in depth, and weighing approximately 1.7 kg, the inverter drive is compact and easy to integrate into control panels. Its design supports a vertical mounting orientation with four fixing holes.

This inverter drive conforms to important international standards including UL, IEC, RoHS, TUV, CSA, and CE, ensuring safety and reliability in industrial settings. It offers constant torque rated performance with overload capabilities of 150% for 60 seconds and 180% for 2 seconds, suitable for demanding machinery.

Typical applications include packaging machinery, material handling systems, and industrial processes requiring precise motor control. Additional accessories such as encoder interfaces, I/O expansion modules, communication modules, braking resistors, and EMC filters are available to customize functionality.

Supports permanent magnet and reluctance motors. Variable speed operation with wide frequency range. Compact cabinet mounting with IP20 ingress protection. Wide voltage supply range from 380 V to 480 V AC. Designed for harsh industrial environments.

Integrated Modbus communication and optional Ethernet. Compliance with international standards and certifications. Compact dimensions with vertical mounting capability. High overload capacity for demanding torque requirements.

Compatible with EcoStruxure platform and configuration software.
