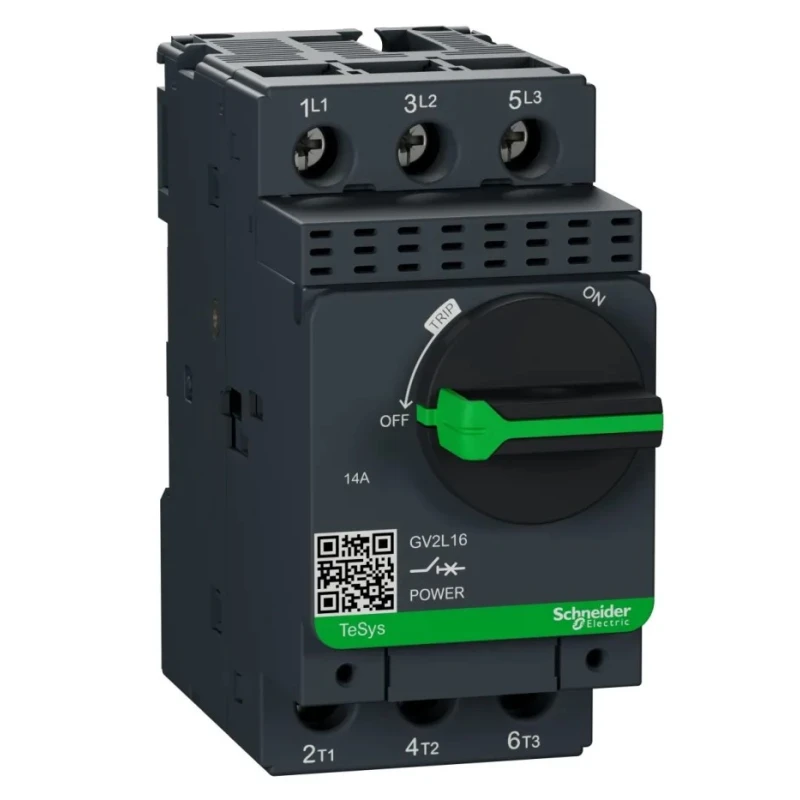

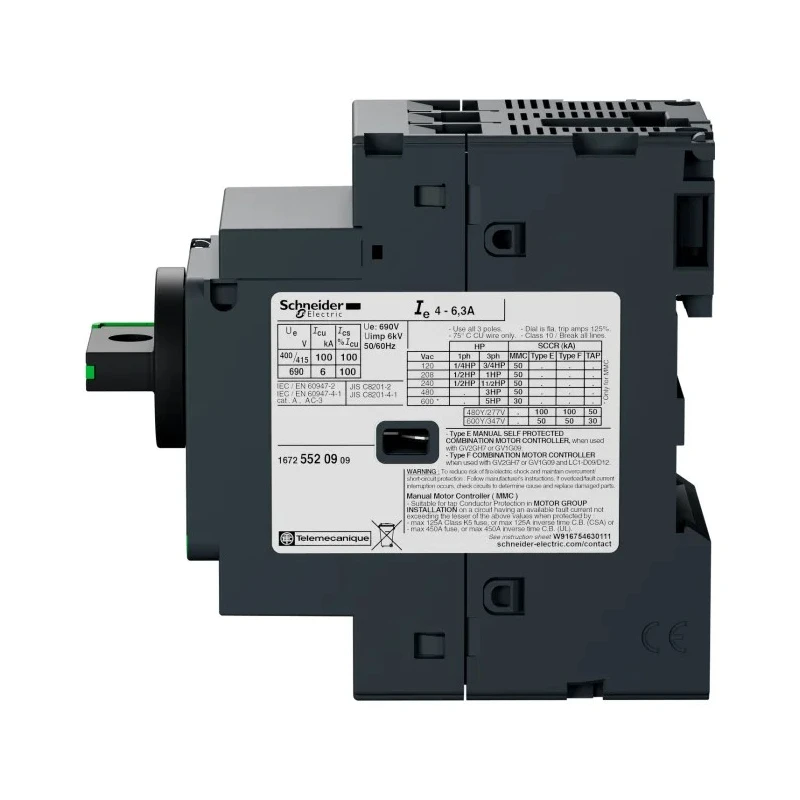

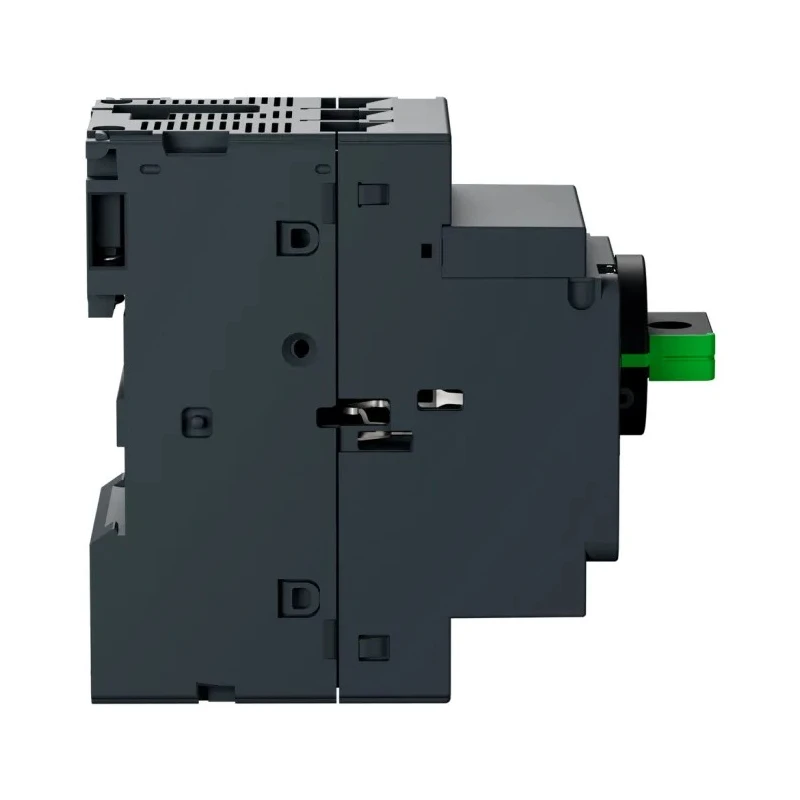

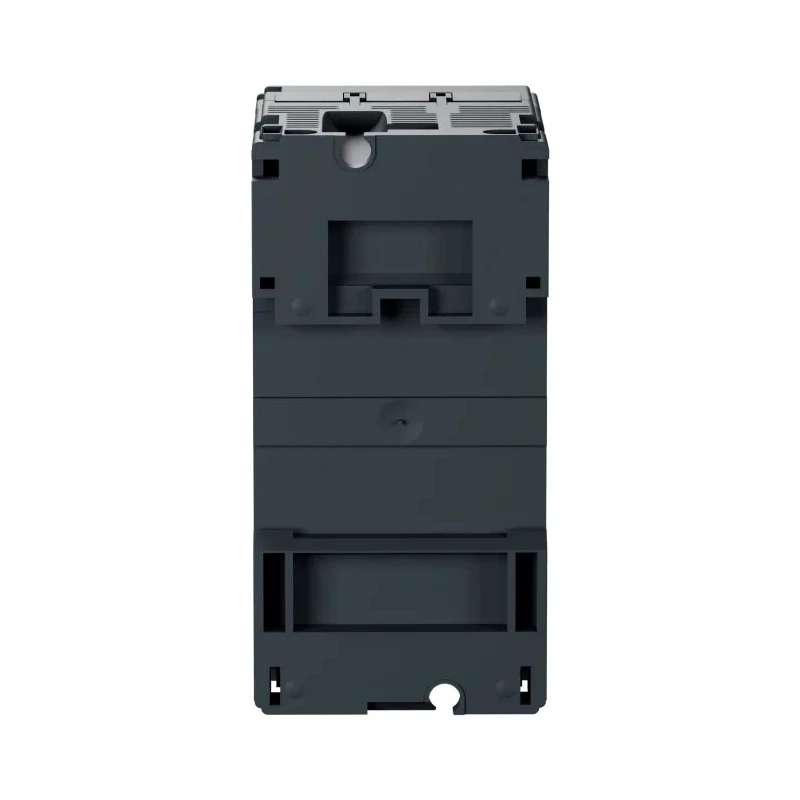

Schneider Electric TeSyS GV Motor Protection Circuit Breaker, 690V, 12-18A Current Rating, Thermal Magnetic, 3 Poles GV2L16

Schneider Electric GV2L16 Motor Protection Circuit Breaker is designed to protect three-phase electric motors from overload and short circuit faults. Operating at a supply voltage rating of 690V and equipped with thermal magnetic sensing technology, this device ensures accurate and reliable performance.

The circuit breaker is suitable for industrial motor protection applications where safety and durability are critical. It features a robust design with a temperature operating range between -20 degrees Celsius and 60 degrees Celsius, allowing it to function reliably in varied environmental conditions.

Its three poles configuration supports three-phase motor setups, and the inclusion of screw clamp terminals simplifies installation, promoting secure and stable electrical connections. The device measures 89 mm in length, 44.5 mm in width, and 97 mm in depth, fitting compactly within control panels.

With an IP20 rating, the unit offers protection against access to hazardous parts and solid objects while meeting international standards such as DNV GL, UL, RINA, REACH/RoHS, LROS, IEC standards (EN/IEC 60947-4-1 and EN/IEC 60947-2), CSA, CCC, BV, and ATEX certifications, ensuring compliance and safety.

Its breaking capacity of 4kA guarantees effective interruption of fault currents, minimizing risks to motors and connected equipment. Manufacturing origin is France, ensuring high production standards under the TeSyS GV series.

Protects motors against overloads and short circuits effectively. Equipped with thermal magnetic sensing technology. Designed as a 3 pole circuit breaker for three-phase motor applications. Operates reliably from -20°C to 60°C.

Screw clamp terminals allow secure and easy connections. Compact size with 89 mm length, 44.5 mm width, and 97 mm depth. IP20 rated for protection against solid objects and hazardous part access. Complies with multiple international safety and quality standards.

Breaking capacity of 4kA for handling fault conditions.

This motor protection circuit breaker is widely used in industrial motor control applications, automation systems, and electrical installations requiring reliable motor safeguarding. It provides dependable performance to reduce downtime and equipment damage risks.

Explore a wide range of motor protection equipment and circuit breakers at EnvMart to find the optimal solutions for your industrial automation and electrical control needs.
