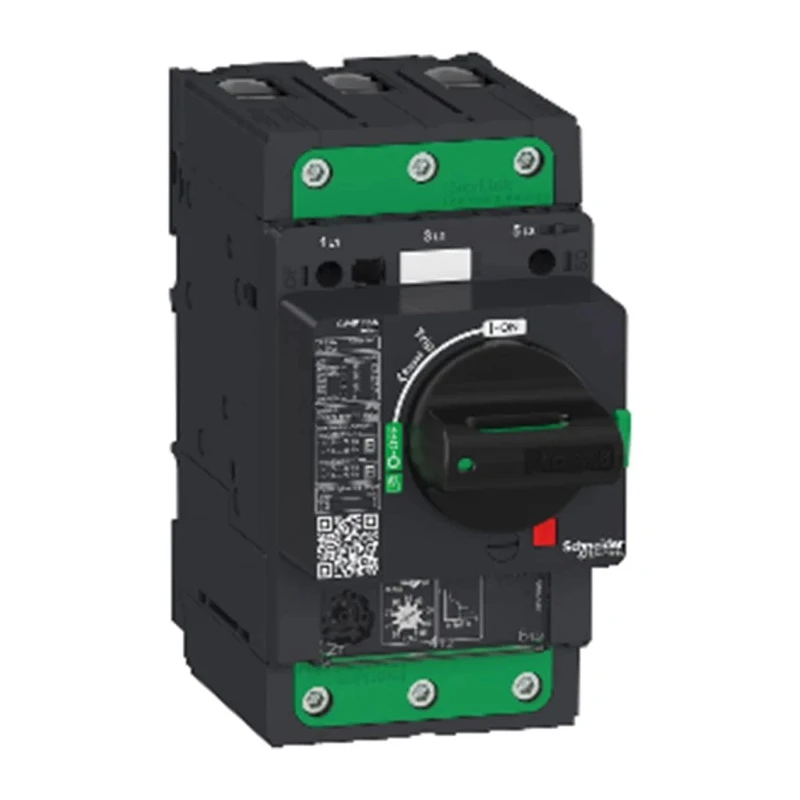

Schneider Electric TeSys GV Thermal Circuit Breaker 3-Pole 50A 690V AC Thermal Magnetic Protection GV4P50N
Specifications
| Country of Origin | Poland |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 116mm |
| Model | GV4P50N |
| Depth | 116mm |
| Width | 165mm |
| Mount Type | Direct |
| Current Rating | 50A |
| Series | TeSyS GV |
| Terminal type | Screw |
| Breaking Capacity | 100kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
| b Magnetic GV4L | to be used with an overload relay or a drive |
| b Thermal magnetic GV4P | electronic protection with wide range setting, dual class (10 & 20) |
| b Multifunction motor protection GV4PEM | GV4P with adjustable advanced protections and possibility to have |
Key Features
- Designed for protection of 3-phase motors rated 11-22kW at 400V.
- Adjustable thermal protection with current setting range 20-50A and selectable tripping class 10 or 20.
- Breaking capacity up to 100kA for high fault current interruption.
- Equipped with screw-type Everlink BTR terminals for secure connections.
- Toggle switch reset actuator for easy manual operation.
- Supports start-stop control via rotary handle.
- Certified to IEC, UL, CSA, CCC, EAC, Marine, and ATEX standards.
- Green Premium compliant with RoHS and REACh certifications.
Product Description
Schneider Electric GV4P50N is a TeSys GV series thermal circuit breaker designed for advanced motor protection in industrial and commercial applications. This 3-pole breaker operates at a rated current of 50A and voltage of up to 690V AC, making it ideal for 3-phase motors ranging from 11 to 22kW at 400V. It features a thermal magnetic tripping mechanism providing reliable thermal and magnetic motor protection.
The breaker supports adjustable thermal protection with a setting current adjustable between 20A and 50A, with selectable tripping classes of 10 or 20, allowing for customized motor protection. Its magnetic protection provides instantaneous trip at 17 times the rated current, while additional fixed protections include short time delay (Isd), phase unbalance, loss of phase, and ground fault detection.
The device includes a toggle switch reset actuator for manual reset and Everlink BTR screw terminals for robust and secure electrical connections. The circuit breaker supports motor start-stop control using a rotary handle for convenient operation.
This model is certified to multiple international standards such as IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with rigorous industrial requirements. It also meets Green Premium environmental standards with RoHS and REACh compliance, underscoring its eco-friendly design.
Provides 100kA breaking capacity ensuring safe interruption of fault currents. Dimensions of 165mm width, 116mm height, and 116mm depth allow for easy installation in panels and motor control centers. Designed and manufactured in Poland, ensuring high quality and reliability.
Expandable with auxiliary contact blocks and voltage trip units for enhanced functionality. Suitable for use in industrial automation, electrical distribution, HVAC, manufacturing, and machinery protection.
Schneider Electric offers a wide range of Motor Circuit Breakers ensuring protection and control of motors and electrical systems. Explore EnvMart's extensive catalog to find tailored solutions for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 50A, making it suitable for various industrial applications.
It can handle a maximum voltage of 690V AC, providing reliable protection for high voltage applications.
The breaking capacity of this unit is 100kA, ensuring safe interruption of fault currents.
This thermal circuit breaker is a 3-pole device, designed for 3-phase motor applications.
It features a thermal magnetic tripping mechanism that provides both thermal and magnetic protection for motors.
The dimensions are 165mm in width, 116mm in height, and 116mm in depth, allowing for easy installation.
It is certified to IEC, UL, CSA, CCC, EAC, Marine, and ATEX standards, ensuring compliance with rigorous industrial requirements.
Yes, it features adjustable thermal protection with a current setting range from 20A to 50A and selectable tripping classes of 10 or 20.
It is equipped with screw-type Everlink BTR terminals for secure and robust electrical connections.
Yes, it supports motor start-stop control via a rotary handle, making it suitable for motor control applications.
This thermal circuit breaker is designed and manufactured in Poland, ensuring high quality and reliability.
The GV4P50N is designed for direct mounting, facilitating straightforward installation in panels and motor control centers.
