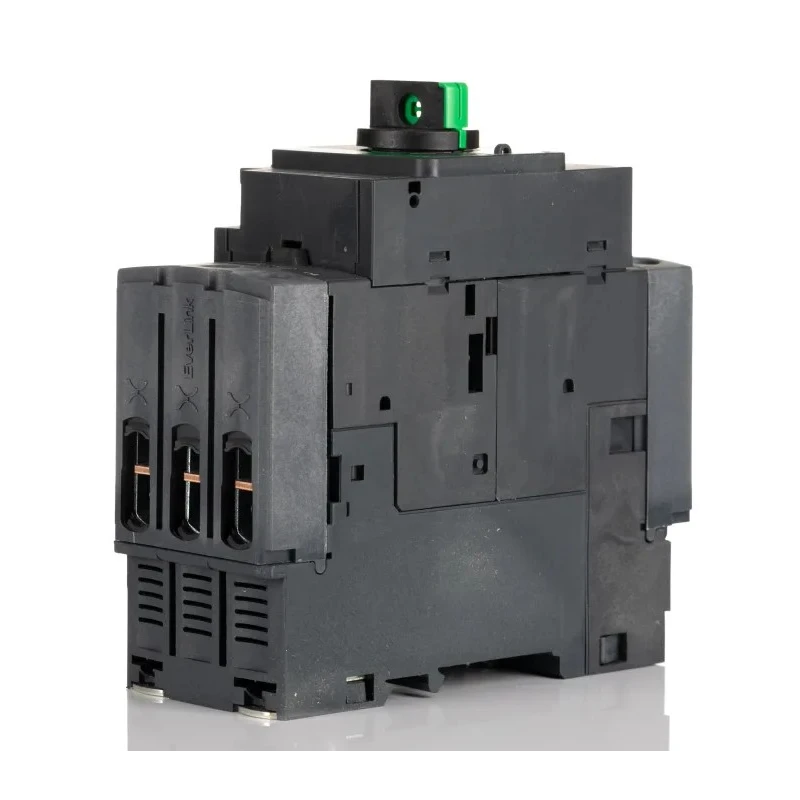

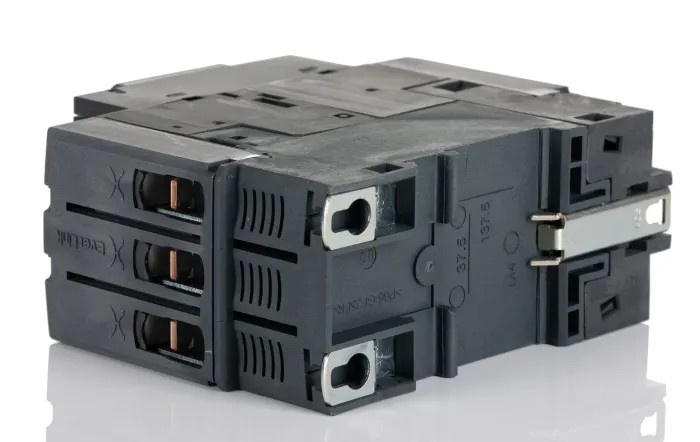

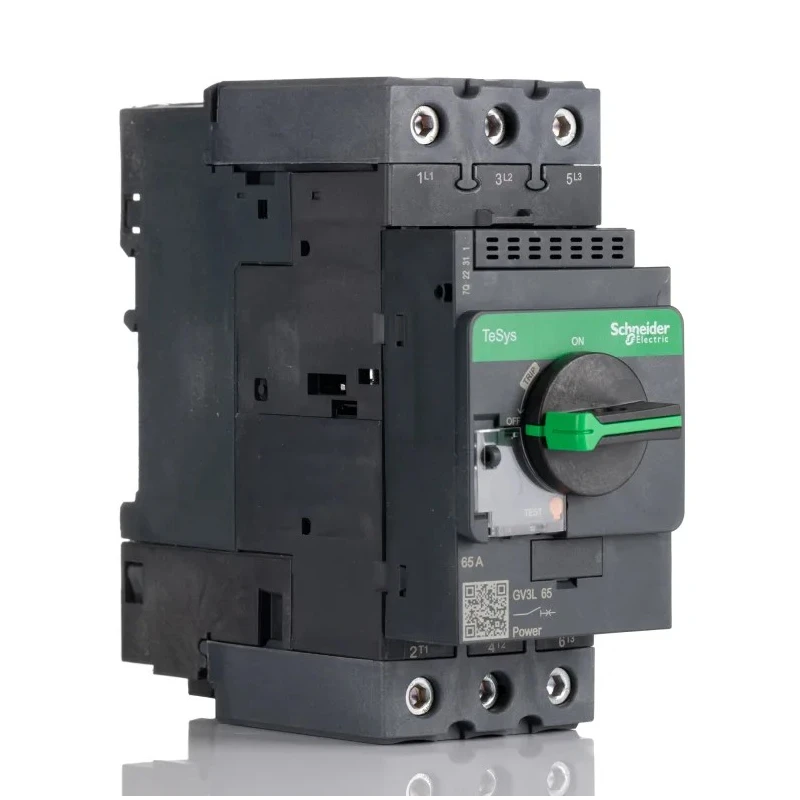

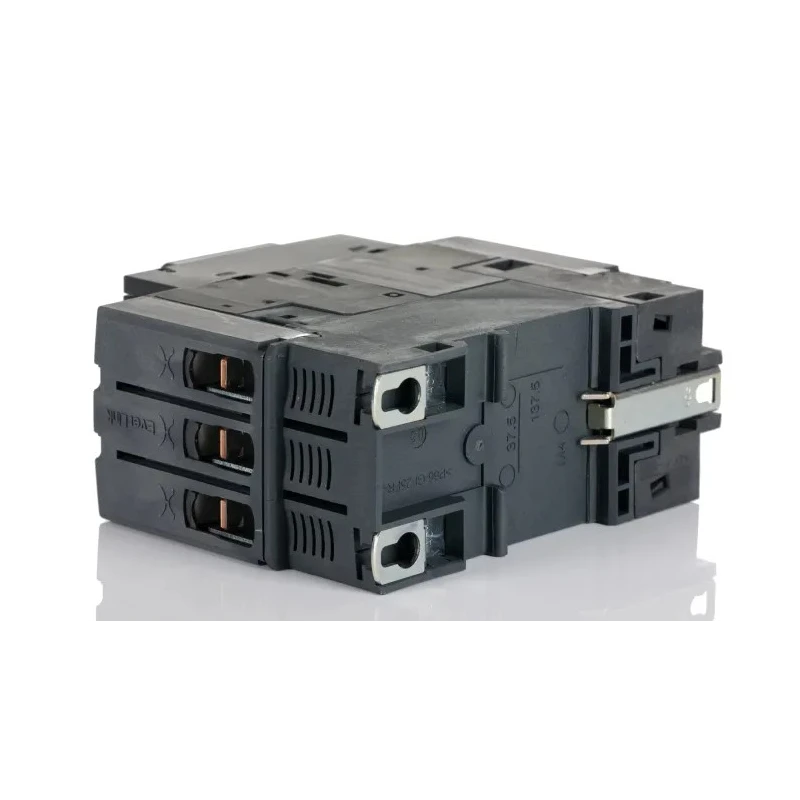

Schneider Electric TeSys GV Thermal Circuit Breaker 65A Current Rating 3-Pole Direct Mount GV3L65
Specifications
| Country of Origin | France |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 160mm |
| Model | GV3L65 |
| Depth | 136mm |
| Width | 55mm |
| Mount Type | Direct |
| Current Rating | 65A |
| Series | TeSyS GV |
| Terminal type | Screw |
| Breaking Capacity | 5kA |
| Number of Poles | 3 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
| High breaking capacity | 50 kA/400 V from 40 to 65 A and 100 kA/400 V from 25 to 32 A |
Key Features
- Equipped with a thermal magnetic tripping mechanism for precise protection.
- Supports rated AC voltage of 690V suitable for industrial applications.
- Compact dimensions of 160mm height, 55mm width, and 136mm depth save panel space.
- Breaking capacity of 5kA ensures robust fault clearing performance.
- Features a toggle switch reset actuator for easy operation.
- Includes Everlink BTR screw terminals for secure electrical connections.
- Complies with CE and RoHS standards for safety and environmental compliance.
- IP20 rated, offering touch-safe protection and resistance to industrial shock and vibration.
Product Description
Schneider Electric GV3L65 Thermal Circuit Breaker is a high-performance motor protective device designed for industrial settings. Rated for a current of 65A with 3 poles and direct mounting, this breaker ensures safe and reliable motor control and protection. Its thermal magnetic tripping mechanism accurately detects overloads and short circuits, preventing equipment damage.
Certified with CE and RoHS approvals, this breaker supports a rated AC voltage of 690V and features a breaking capacity of 5kA. The compact size with 160mm height, 55mm width, and 136mm depth integrates seamlessly into panels, saving space.
Equipped with Everlink BTR screw terminals, it provides enhanced connection reliability even in demanding industrial environments with high shock and vibration exposure. The toggle switch reset actuator offers straightforward manual control. Rated IP20, it offers touch-safe enclosure protection, suitable for motor control, transformer protection, and magnetic valve applications.
This thermal circuit breaker operates effectively within a temperature range of -20°C to +60°C and at altitudes up to 3000m. Its high breaking capacity ensures safety with fault clearing capability at industrial voltages.
Thermal magnetic trip provides motor protection. High breaking capacity supports industrial fault clearing. Compact and robust design for panel integration. Touch-safe IP20 enclosure for operator safety. Wide temperature and altitude operating range.
The Schneider Electric TeSys GV range is engineered for controlling and protecting motors from 5.5kW to 30kW. This product is ideal for industrial, manufacturing, HVAC, and water treatment applications requiring reliable motor circuit protection.
Explore more Motor Circuit Breakers and Schneider Electric products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 65A, making it suitable for various industrial applications.
It features a breaking capacity of 5kA, ensuring effective fault clearing performance in industrial settings.
The GV3L65 supports a rated AC voltage of 690V, which is suitable for industrial applications.
The dimensions of this unit are 160mm in height, 55mm in width, and 136mm in depth, allowing for compact panel integration.
It is equipped with a thermal magnetic tripping mechanism that accurately detects overloads and short circuits.
The circuit breaker features a toggle switch reset actuator, providing straightforward manual control for resetting after a trip.
This thermal circuit breaker complies with CE and RoHS standards for safety and environmental compliance.
It has an IP20 rating, offering touch-safe protection suitable for industrial environments.
The operating temperature range for the GV3L65 is from -20°C to +60°C, accommodating various industrial conditions.
This model has 3 poles, making it suitable for direct mounting in motor control applications.
It includes Everlink BTR screw terminals, which provide secure electrical connections even in demanding environments.
This thermal circuit breaker is ideal for motor control, transformer protection, and magnetic valve applications in industrial settings.
