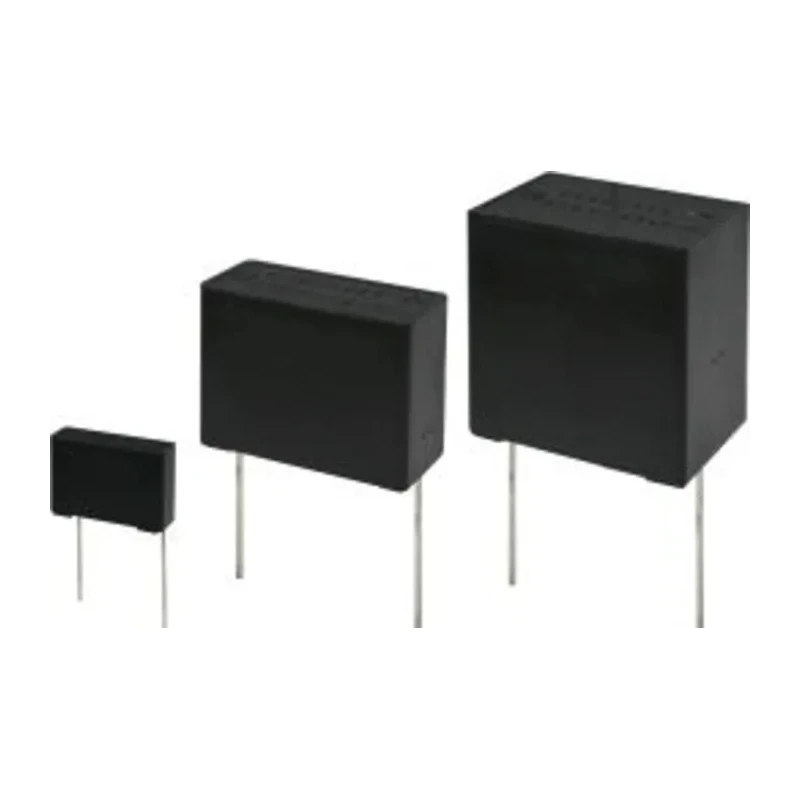

Panasonic ECQUA Film Capacitor X2, ±20 % Tolerance, 330 nF Capacitance, 275V AC Rated Voltage, Through Hole ECQUAAF334S1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 16mm |
| Length | 17.5mm |
| Model | ECQUAAF334S1 |
| Packaging | Bag |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±20 % |
| Capacitance | 330nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Dissipation Factor | 0.1% |
| Lead Length | 20mm |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 15mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| High humidity resistance (THB test | 85 °C, 85 %, 240 V.AC, 1000 h ) |
Key Features
- High safety with built-in safety functions.
- High humidity resistance tested at 85°C and 85% humidity for 1000 hours.
- High thermal shock resistance between -40°C and 85°C for 1000 cycles.
- Flame-retardant plastic case with non-combustible resin construction.
- Designed for interference suppression in automotive applications.
- Compliant with automotive standard AEC-Q200 and suppression class X2.
- Lead pitch of 15 mm with solder terminal and 20 mm lead length.
- Meets CSA E60384-14, UL 60384-14, and EN 60384-14 approvals.
Product Description
Panasonic ECQUAAF334S1 is a high-performance film capacitor from the ECQUA series, designed to provide reliable interference suppression in automotive and industrial electronic circuits. This X2 suppression class capacitor features a capacitance of 330 nF with a ±20 % tolerance, and a rated AC voltage of 275 V, suitable for through hole mounting.
Its flame-retardant plastic casing and non-combustible resin construction ensure enhanced safety and durability. The capacitor withstands high humidity conditions, demonstrated by the THB test at 85 °C and 85% relative humidity for 1000 hours, ensuring performance stability in harsh environments.
It exhibits excellent thermal shock resistance across a temperature range from -40 °C to 85 °C over 1000 cycles, making it ideal for automotive applications requiring robust thermal stability. The device complies with automotive standard AEC-Q200, enhancing its suitability for automotive electronics.
The capacitor's terminal design includes solderable leads with a lead pitch of 15 mm, a lead length of 20 mm, and a lead diameter of 0.6 mm. Its compact size dimensions are 17.5 mm in length, 9 mm in width, and 16 mm in height, suitable for various PCB layouts. The dissipation factor is rated at 0.1%, indicating low energy loss during operation.
High safety with built-in safety function. High humidity resistance with THB test: 85°C, 85%, 240 V AC, 1000 hours. High thermal shock resistance: -40°C to 85°C for 1000 cycles. Flame-retardant plastic case and non-combustible resin.
Interference suppressors for automotive applications. Automotive standard compliance AEC-Q200 and suppression class X2. Lead pitch 15 mm, solder terminal, 20 mm lead length. Compact dimensions and low dissipation factor.
This Panasonic ECQUAAF334S1 capacitor is ideal for industrial, automotive, and HVAC applications requiring reliable interference suppression and robust environmental tolerance. Explore the full range of Film Capacitors and related components at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 330 nF with a tolerance of ±20 %.
It has a rated AC voltage of 275 V.
The dimensions are 17.5 mm in length, 9 mm in width, and 16 mm in height.
The maximum operating temperature is 110 °C.
This capacitor is designed for through hole mounting.
It has a lead pitch of 15 mm and a lead length of 20 mm.
The dissipation factor is rated at 0.1%.
It complies with the automotive standard AEC-Q200.
It is tested for high humidity resistance at 85 °C and 85% humidity for 1000 hours and has thermal shock resistance from -40 °C to 85 °C for 1000 cycles.
It features a flame-retardant plastic case and non-combustible resin construction.
It is suitable for automotive and industrial electronic circuits, particularly for interference suppression.
The terminal type is solder, with a lead diameter of 0.6 mm.
