Amphenol Limited MIL Spec Circular Connector Copper Alloy Straight 3 Way Cable Mount Plug 600/850V AC TV06RW-09-98SN(W52)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600, 850V ac |
| Brand | Amphenol Limited |
| Colour | Green |
| Orientation | Straight |
| Current | 7.5A |
| Model | TV06RW-09-98SN(W52) |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |

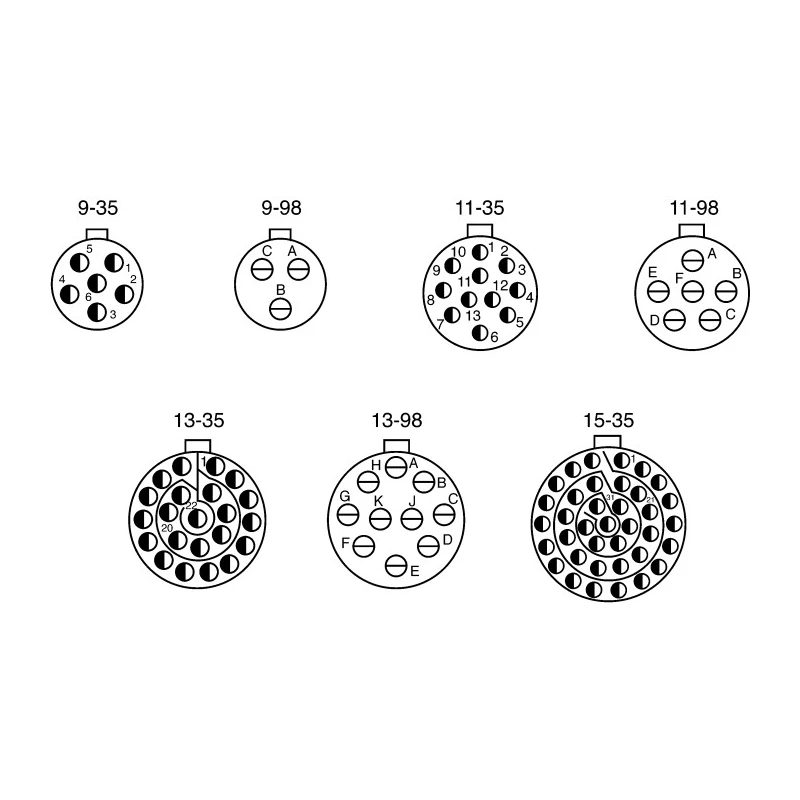

| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Male |

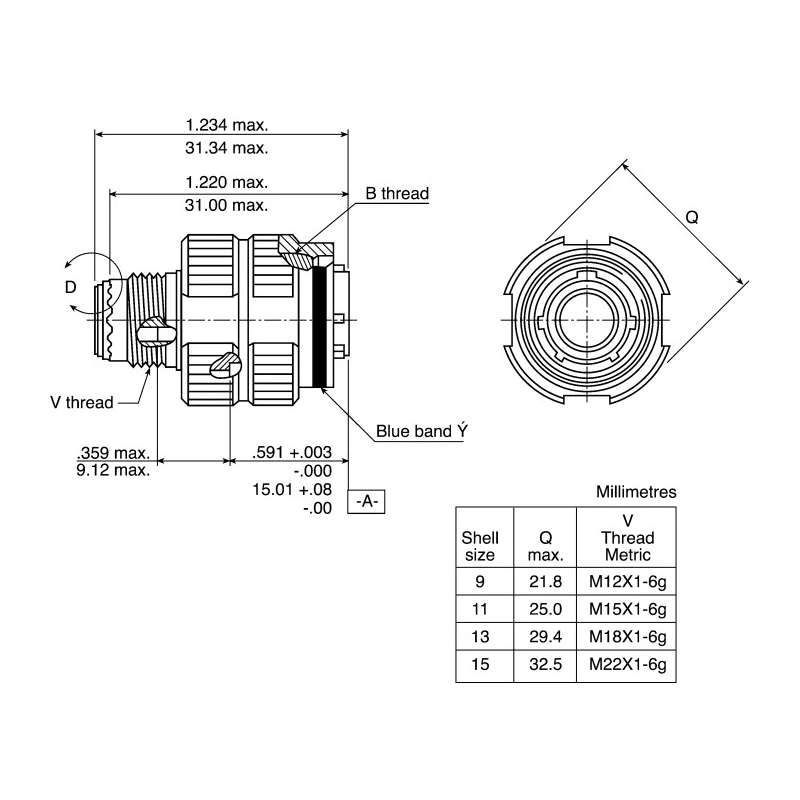

| Shell Size | 09 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- The connector supports a voltage of 600 and 850V AC for versatile use.
- It carries a current rating of 7.5A suitable for moderate power applications.
- The contact and connector gender are female and male respectively for secure mating.
- Features screw coupling with a standard size 09 shell and cable mount type.
- Operates efficiently between -65°C and 175°C for a wide temperature range.
- Constructed with aluminium housing and zinc cobalt plating for durability.
- The contact has gold plating and copper alloy material for excellent conductivity.
- Designed to meet MIL-DTL-38999 military standard ensuring quality and reliability.
Product Description
Amphenol Limited TV06RW-09-98SN(W52) MIL Spec Circular Connector is a high-quality copper alloy cable mount plug designed with a straight orientation and three contacts. It provides reliable electrical connections with a robust screw coupling mechanism, designed specifically for cable mounting applications.
Supporting voltages of 600 and 850V AC and a current rating of 7.5A, this connector is suited for moderate electrical loads across industrial and military environments. The shell size 09 and standard connector size make it compatible with a wide range of counterpart devices within the MIL-DTL-38999 specification.
The housing is machined from aluminium with a durable zinc cobalt plating to provide resistance against corrosion and mechanical wear. Gold-plated copper alloy contacts ensure excellent electrical conductivity and long-term performance.
Certified to meet MIL-DTL-38999 and related military standards such as BS 9520 G0003 and JN1034, this connector is built to exceed rigorous requirements for durability, temperature range (-65°C to 175°C), and operational reliability. It includes strain relief for mechanical robustness and easy cable termination using crimp termination techniques.
The connector features three female contacts with gold plating for optimal conductivity. The connector gender is male, designed for cable mounting with screw coupling. Operates within a temperature range of -65°C to 175°C to endure harsh environments.
Constructed with aluminium housing and zinc cobalt plating for environmental protection. Strain relief ensures cable stability during use. Complies with MIL-DTL-38999 military standards for secure connections. Colour-coded green shell for easy identification.
Suitable for industrial, military, aerospace, and electronic applications. Includes crimp termination and rear release contacts for maintenance ease. Manufactured in India guaranteeing quality and origin traceability.
This connector is ideal for high-demand applications including aerospace, defense, industrial equipment, and advanced electronic systems. Its rugged design and certified standards assure reliable performance where quality and durability are essential.
Explore the wide range of MIL Spec Circular Connectors by Amphenol Limited on EnvMart for all your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports voltages of 600 and 850V AC, making it suitable for versatile use in moderate power applications.
The connector has a current rating of 7.5A, which is appropriate for moderate electrical loads.
It operates efficiently within a temperature range of -65°C to 175°C, allowing it to endure harsh environments.
The housing is made from aluminium with zinc cobalt plating, while the contacts are copper alloy with gold plating for excellent conductivity.
This model utilizes crimp termination techniques, facilitating easy cable termination.
The connector features three female contacts, designed for secure mating with the male connector gender.
It has a shell size of 09, which is a standard size compatible with a variety of counterpart devices.
Yes, it is designed to meet the MIL-DTL-38999 military standard, ensuring quality and reliability in demanding applications.
The connector features a screw coupling mechanism, providing a secure connection for cable mounting applications.
The shell of this connector is color-coded green for easy identification.
This model is manufactured in India, ensuring quality and origin traceability.
It is suitable for industrial, military, aerospace, and electronic applications, particularly in high-demand environments.
