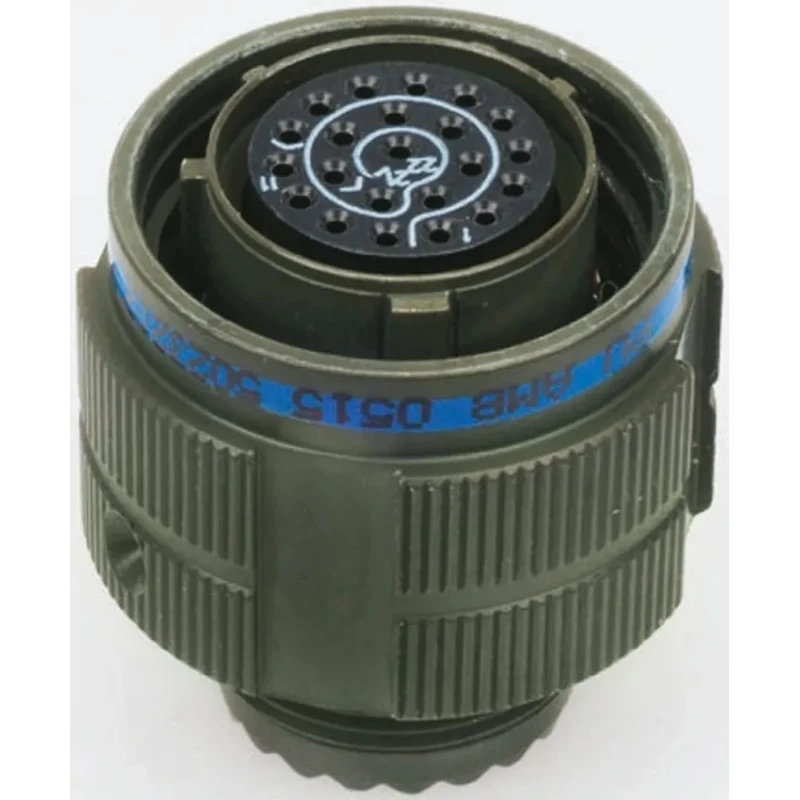

Amphenol Limited MIL Spec Circular Connector Copper Alloy Straight 3 Way Cable Mount Plug, Gold Plated TV06RW-09-98PN(W52)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600, 850V ac |
| Brand | Amphenol Limited |
| Colour | Green |
| Orientation | Straight |
| Current | 7.5A |
| Model | TV06RW-09-98PN(W52) |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Male |

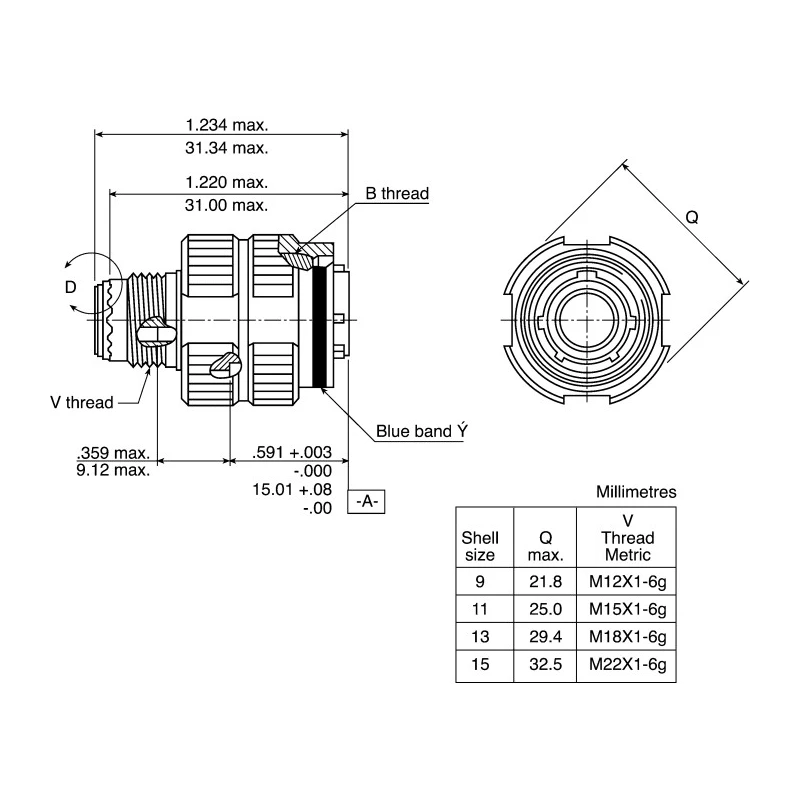

| Shell Size | 09 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- This connector features a robust aluminium housing with zinc cobalt plating for enhanced corrosion resistance.
- Designed according to MIL-DTL-38999 military standards with a maximum operating temperature of 175°C.
- Operates at 600 and 850V AC voltage with 7.5A current capacity.
- Includes strain relief and crimp termination for secure cable mounting and reliable electrical connection.
- The green coloured shell and male gender contacts ensure compatibility with matching receptacles.
- Suitable for use in demanding industrial, defense, aerospace, and telecommunications environments.
- Its straight orientation and screw coupling mating type allow for easy assembly and disassembly.
- Complies with military specifications including BS 9520 and JN1034 approvals.
Product Description
Amphenol Limited TV06RW-09-98PN(W52) is a MIL Spec Circular Connector featuring a copper alloy body with gold plated male contacts and an aluminium shell size 09. This straight orientation, cable mount plug connector is designed for high reliability in industrial, defense, aerospace, and telecommunications applications that demand ruggedized connections. It operates at 600 and 850 volts AC, handling currents up to 7.5 amperes, with a maximum temperature rating of 175°C and a minimum of -65°C.
The shell’s zinc cobalt plating provides corrosion resistance and complies with environmental standards for cadmium-free products. The connector follows MIL-DTL-38999 specifications and is constructed with a durable aluminium housing to offer high mechanical strength. It employs screw coupling mating for secure, vibration-resistant connections. Crimp termination and rear release contacts ensure reliable electrical contact and ease of assembly. The green coloured shell and strain relief enhance durability and cable protection.

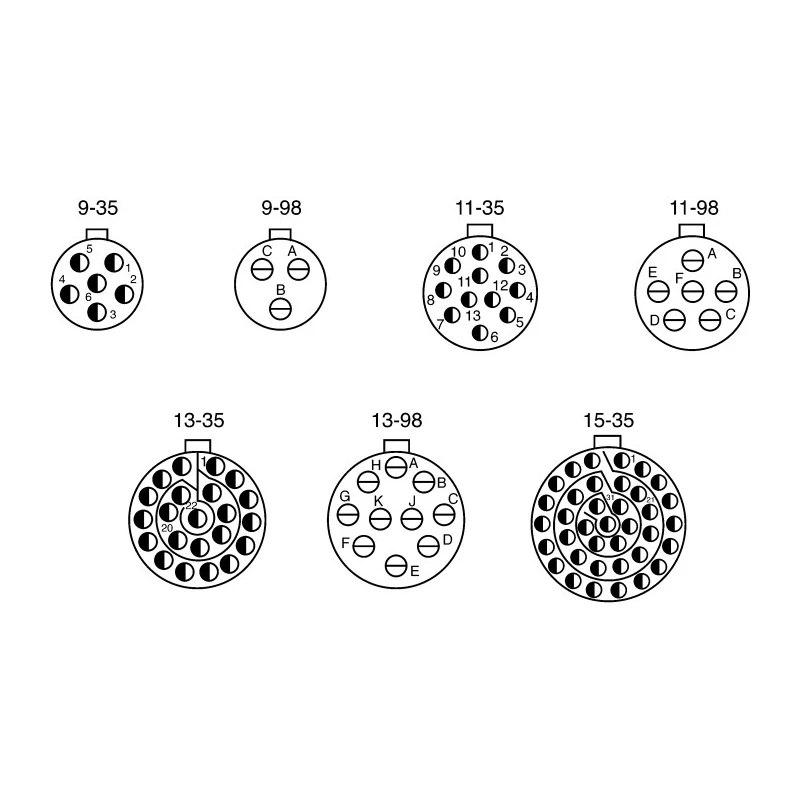

These connectors come with 'N' or 'A' keyed inserts for orientation, tailored for use with corresponding Amphenol Tri-Start receptacles. They meet the requirements of military approvals such as BS9520 G0003 and JN1034, making them suitable for rugged environments where dependable signal transmission is essential.
Robust aluminium housing with zinc cobalt plating for corrosion resistance. Copper alloy contacts with gold plating for excellent conductivity and durability. Conforms to MIL-DTL-38999 military standard and approved by BS9520 and JN1034.
Operating voltage up to 850 V AC and current rating of 7.5 A. Wide temperature range from -65°C to 175°C suitable for harsh environments. Crimp termination with strain relief for secure cable mounting. Screw coupling mating type for reliable engagement.
Green colour coded shell for easy identification.
This Amphenol MIL Spec Circular Connector is ideal for applications requiring rugged, high performance connectors such as industrial machinery, aerospace systems, military hardware, and secure telecommunication links. Its proven design ensures robust mechanical and electrical performance in demanding conditions, making it an essential component for systems requiring dependable connectivity.
Explore more Mil Spec Circular Connectors and related products in the Electronics & Electricals category at EnvMart for reliable and high-quality industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 175°C.
This model has a current capacity of 7.5A.
It uses crimp termination for secure cable mounting.
The connector operates at 600 and 850V AC.
The housing is made of aluminium, and the contacts are copper alloy with gold plating.
It features a straight orientation and uses screw coupling for mating.
It complies with MIL-DTL-38999 and has approvals from BS9520 and JN1034.
The shell of this connector is green in color.
This model has a total of 3 contacts.
It is suitable for use in industrial, defense, aerospace, and telecommunications environments.
The minimum operating temperature is -65°C.
This connector features a cable mount type.
