TDK 68 pF Multilayer Ceramic Capacitor 3 kV dc ±10% Surface Mount Tape & Reel C4520C0G3F680K200KA
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 3kV dc |
| Brand | TDK |
| Height | 2mm |
| Length | 4.5mm |
| Model | C4520C0G3F680K200KA |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | C |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 68pF |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN card |
| Package/Case | 1808 |
| Dielectric | C0G |
| Suppression Class | Class I |
Key Features
- Capacitance of 68 pF providing stable electrical performance.
- High voltage rating with 3 kV DC withstand capability.
- Surface mount package with case size 1808 for compact PCB design.
- Dielectric material C0G ensures low losses and high reliability.
- Tolerance of ±10% for precise capacitance control.
- Operates within temperature range of -55°C to 125°C.
- Packaged in tape and reel format for automated assembly.
- Designed for reflow soldering and high voltage circuit applications.
Product Description
TDK C4520C0G3F680K200KA is a high-quality multilayer ceramic capacitor with a capacitance of 68 pF and a maximum DC voltage rating of 3 kV. This surface mount device uses a C0G dielectric, known for its stability and low losses, making it an excellent choice for high voltage and precision applications.

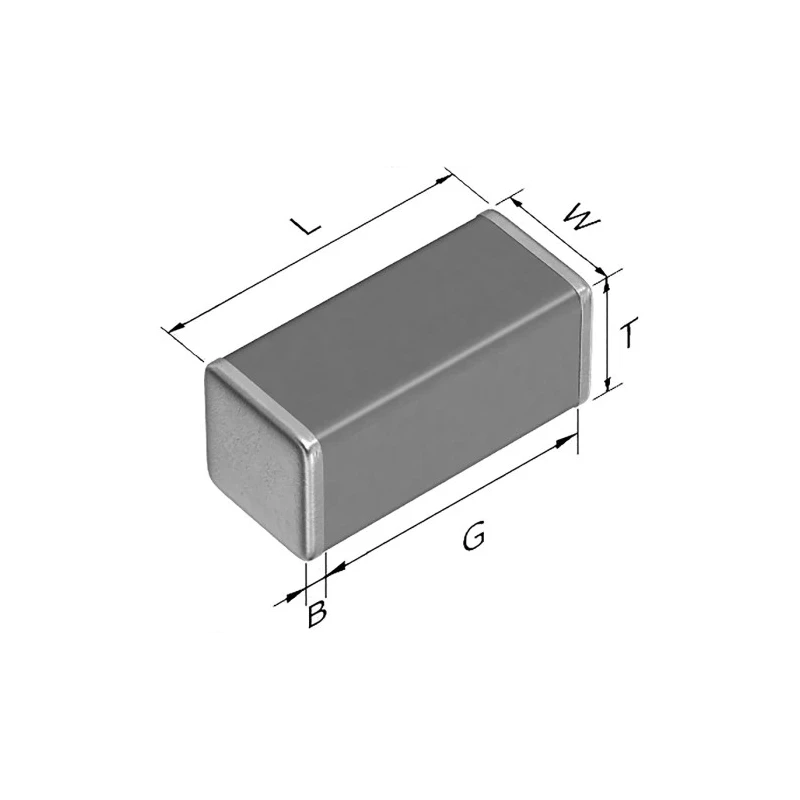

The capacitor features a 1808 package size with dimensions of 4.5 mm length, 2 mm width, and 2 mm height, making it suitable for compact circuit board layouts. Designed specifically for reflow soldering, it is optimized for use in automated surface mount technology (SMT) processes.
Operating within a temperature range from -55°C to 125°C, this capacitor offers robust performance in demanding environments. Its ±10% tolerance ensures precise capacitance control, critical for sensitive electronic circuits.
Common applications include inverter circuits with liquid crystal backlights, LAN cards, noise bypass for power supplies, and various high voltage electronic circuits such as transceivers for LAN hubs.
The product is provided in tape and reel packaging format, facilitating efficient use in mass production settings. Manufactured in Japan, this component complies with stringent quality and reliability standards, although it does not possess specific automotive approvals.
Capacitance of 68 pF providing stable electrical performance. High voltage rating with 3 kV DC withstand capability. Surface mount package with case size 1808 for compact PCB design. Dielectric material C0G ensures low losses and high reliability.
Tolerance of ±10% for precise capacitance control. Operates within temperature range of -55°C to 125°C. Packaged in tape and reel format for automated assembly. Designed for reflow soldering and high voltage circuit applications.
Dimensions: 4.5 mm length, 2 mm width, 2 mm height. Manufactured in Japan adhering to high-quality standards.
This Multilayer Ceramic Capacitor is ideal for industrial, electronic manufacturing, telecommunications, automotive electronics (non-automotive standard), and laboratory instrumentation applications. Explore more high-quality capacitors and components from TDK at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 68 pF, providing stable electrical performance.
It has a maximum DC voltage rating of 3 kV, making it suitable for high voltage applications.
This capacitor operates within a temperature range of -55°C to 125°C.
The dimensions are 4.5 mm in length, 2 mm in width, and 2 mm in height, fitting the 1808 package size.
It uses a C0G dielectric material, known for its stability and low losses.
It is packaged in tape and reel format, facilitating automated assembly processes.
The capacitor has a tolerance of ±10%, ensuring precise capacitance control.
This model supports surface mount termination, suitable for compact PCB designs.
Common applications include inverter circuits, LAN cards, and noise bypass for power supplies.
It is manufactured in Japan, adhering to high-quality standards.
This capacitor is classified as Class I in terms of suppression.
It is designed for industrial, electronic manufacturing, and telecommunications but does not possess specific automotive approvals.
