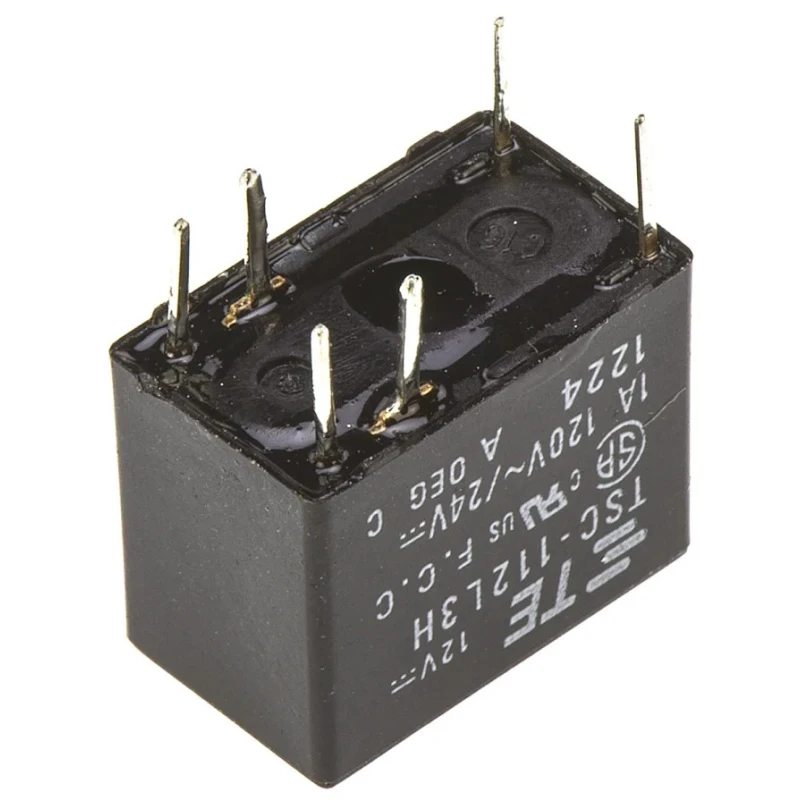

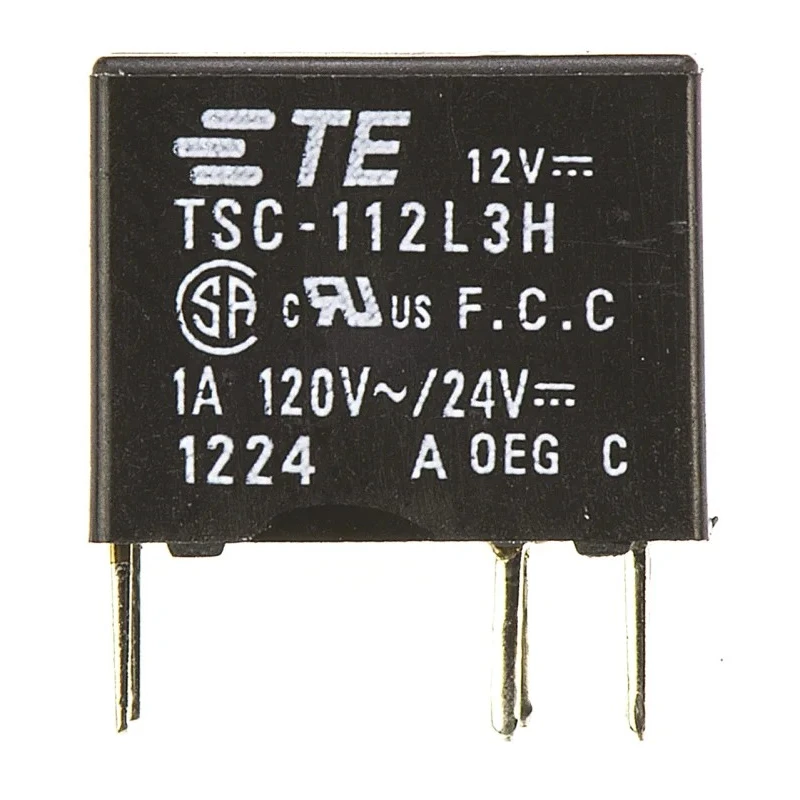

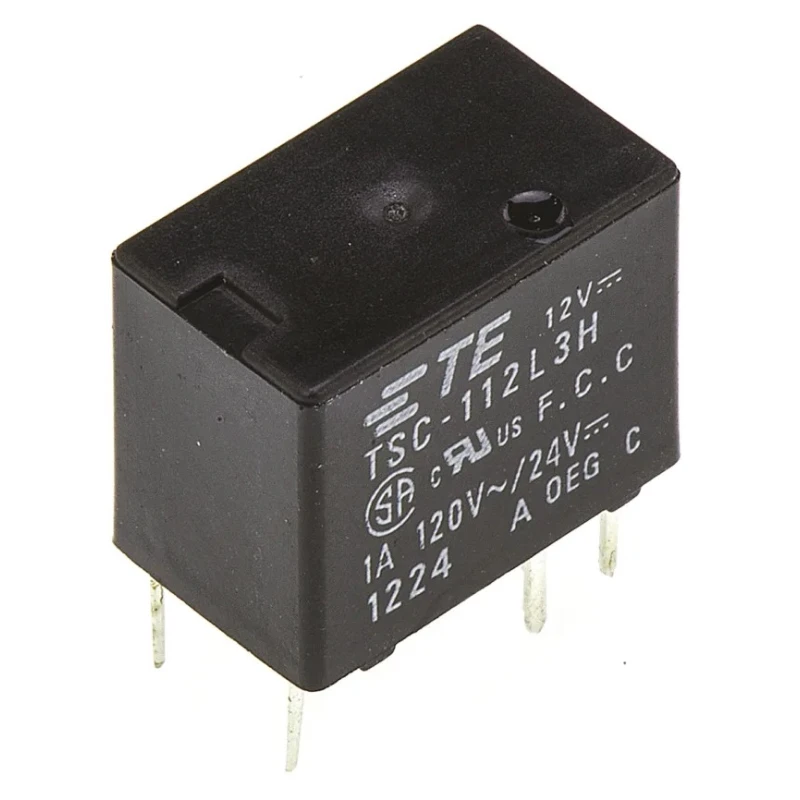

TE Connectivity PCB Signal Relay 12V DC Coil 1A DPDT TSC-112L3H000
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 9.9mm |
| Length | 12.3mm |
| Model | TSC-112L3H000 |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TSC |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | REACH, RoHS |
| Coil Resistance | 480Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 300mW |
| TSC Series of miniature PCB relays. Typical applications include | Telecommunications, office machines and security systems |
Key Features
- Designed for telecommunications, office machines, and security systems.
- 1A SPCO miniature relay with gold-plated contacts for reliable performance.
- Low coil power consumption of 300mW suitable for IC compatibility.
- Compact sealed plastic case with dimensions 12.3mm length, 7.4mm width, and 9.9mm height.
- Wide operating temperature range from -30°C to 80°C.
- Contact resistance of 50 milliohms ensures minimal signal loss.
- Standard coil with 480 Ohm resistance and solder terminal type.
- Fully compliant with REACH and RoHS environmental standards.
Product Description
TE Connectivity TSC-112L3H000 is a miniature PCB signal relay featuring a 12V DC coil voltage and a switching current of 1A in a DPDT contact configuration. This relay belongs to the TSC series, known for their reliability and compact design, ideal for telecommunications, office machines, security systems, and other control applications.
The device uses gold-plated AgNi contact material to ensure long-lasting electrical performance and minimal contact resistance measured at 50 milliohms. The coil power consumption is low at 300mW, making it fully compatible with integrated circuits and low power control circuits. It features a sealed plastic case that protects the internal components from environmental contaminants.
Physically, the relay measures 12.3mm in length, 7.4mm in width, and 9.9mm in height, making it suitable for compact PCB designs. The solder terminal type simplifies mounting on printed circuit boards. It operates safely within a temperature range of -30°C to 80°C and supports switching voltages up to 125V AC and 30V DC.
TE Connectivity has ensured that this product complies with important environmental regulations, including REACH and RoHS. This relay is designed to meet the needs of industrial and commercial automation, control systems, and electrical signal switching applications.
Designed for telecommunications, office automation, and security system applications. Miniature design with DPDT contact configuration and gold-plated contacts. Low power coil requiring only 300mW, optimized for IC control compatibility.
Compact sealed plastic enclosure protects internal components. Wide operating temperature range from -30°C to 80°C ensures reliable operation. Low contact resistance for superior signal integrity. Solder terminal type facilitates easy PCB mounting.
Certified to meet REACH and RoHS environmental standards.
This TE Connectivity PCB Signal Relay model TSC-112L3H000 is an excellent choice for precise, reliable switching in industrial and electronic assembly environments. Discover more products in the Signal Relay category on EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
The maximum switching current for this model is 1A.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The dimensions of the relay are 12.3mm in length, 7.4mm in width, and 9.9mm in height.
The contact resistance of the TSC-112L3H000 is 50 milliohms.
It operates within a temperature range of -30°C to 80°C.
This relay uses solder terminals for mounting on printed circuit boards.
The coil power consumption is 300mW.
The relay supports switching voltages up to 125V AC and 30V DC.
The contacts are made of gold-plated AgNi material.
Yes, it is compliant with REACH and RoHS environmental standards.
This relay is designed for telecommunications, office machines, and security systems.
