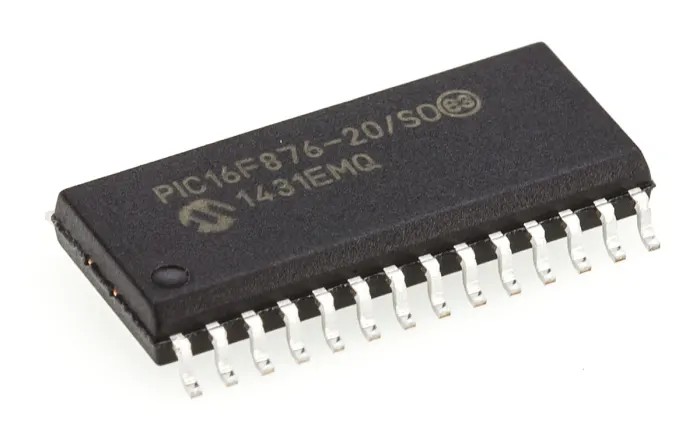

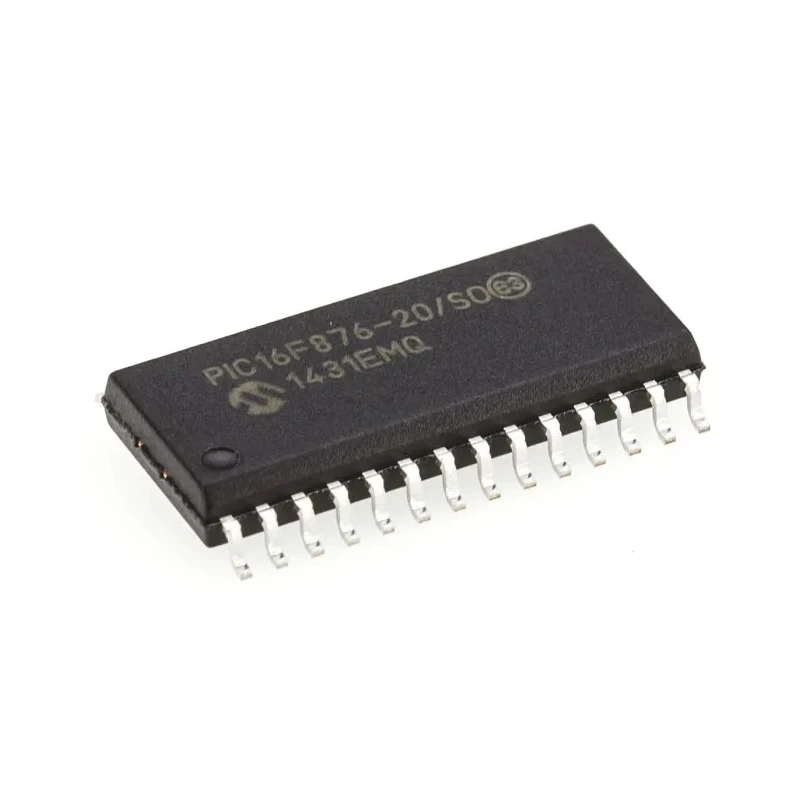

Microchip 8 bit PIC Microcontroller, PIC16F87X Series, 20 MHz, 14kB FLASH, 28-Pin SOIC PIC16F876-20/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.39mm |
| Length | 18.08mm |
| Model | PIC16F876-20/SO |
| Width | 7.59mm |
| Mount Type | Surface |
| Series | PIC16F87X |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Ram size | 368bit |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features 8-bit RISC architecture for efficient processing.
- Equipped with 22 programmable I/O pins.
- Includes 5 channels 10-bit ADC for analog input conversion.
- Supports in-circuit serial programming and debugging.
- Operates from 2V to 5.5V supply voltage range.
- RoHS compliant ensuring environmental safety.
- Surface mount SOIC package with 28 pins for compact design.
- Operating temperature range from 0°C to 70°C.
Product Description
Microchip PIC16F876-20/SO is an 8-bit PIC microcontroller from the PIC16F87X Series, featuring a 20 MHz maximum clock frequency and 14kB FLASH program memory. It is designed based on Microchip's Mid-Range core with an 8-level hardware stack and 35 instruction set optimized for various embedded control applications.
This Microcontroller includes 22 programmable I/O pins and five 10-bit ADC channels suitable for precise analog signal conversion. It features three timers (two 8-bit and one 16-bit) and supports in-circuit serial programming (ICSP) and debugging (ICD), facilitating efficient development and prototyping.
The device operates in a supply voltage range of 2V to 5.5V with maximum power dissipation of 1W, making it reliable for embedded electronic design in industrial, automotive, and consumer electronics. Its surface mount 28-pin SOIC package offers a compact footprint suitable for space-constrained applications.
Additional on-chip peripherals include two Capture/Compare/PWM (CCP) modules, synchronous serial port (SSP) with SPI and I2C interfaces, USART for asynchronous communication, and a parallel slave port available on selected models, enhancing connectivity and control capabilities.
Microchip PIC16F876-20/SO complies with RoHS standards, assuring environmentally friendly usage. The device supports operating temperatures from 0°C to 70°C, suitable for typical industrial environmental conditions.
Features 8-bit RISC architecture for efficient processing. Equipped with 22 programmable I/O pins. Includes 5 channels 10-bit ADC for analog input conversion. Supports in-circuit serial programming and debugging. Operates from 2V to 5.5V supply voltage range.
Offers multiple timers: two 8-bit and one 16-bit timer. RoHS compliant ensuring environmental safety. Surface mount SOIC package with 28 pins for compact design. Operating temperature range from 0°C to 70°C.
Ideal for industrial automation, consumer electronics, embedded system prototyping, and automotive control modules. Discover more advanced semiconductor components by browsing EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC16F876-20/SO has a maximum clock frequency of 20 MHz.
It features a program memory size of 14 kB, utilizing FLASH technology.
This microcontroller is equipped with 22 programmable I/O pins.
It operates within a supply voltage range of 2V to 5.5V.
It includes five channels of 10-bit ADC for analog input conversion.
The operating temperature range is from 0°C to 70°C.
It comes in a surface mount SOIC package with 28 pins.
This model features three timers: two 8-bit timers and one 16-bit timer.
Yes, it supports in-circuit serial programming (ICSP) and debugging (ICD).
The maximum power dissipation is 1W.
Yes, the PIC16F876-20/SO complies with RoHS standards, ensuring environmental safety.
The microcontroller has a RAM size of 368 bits.
