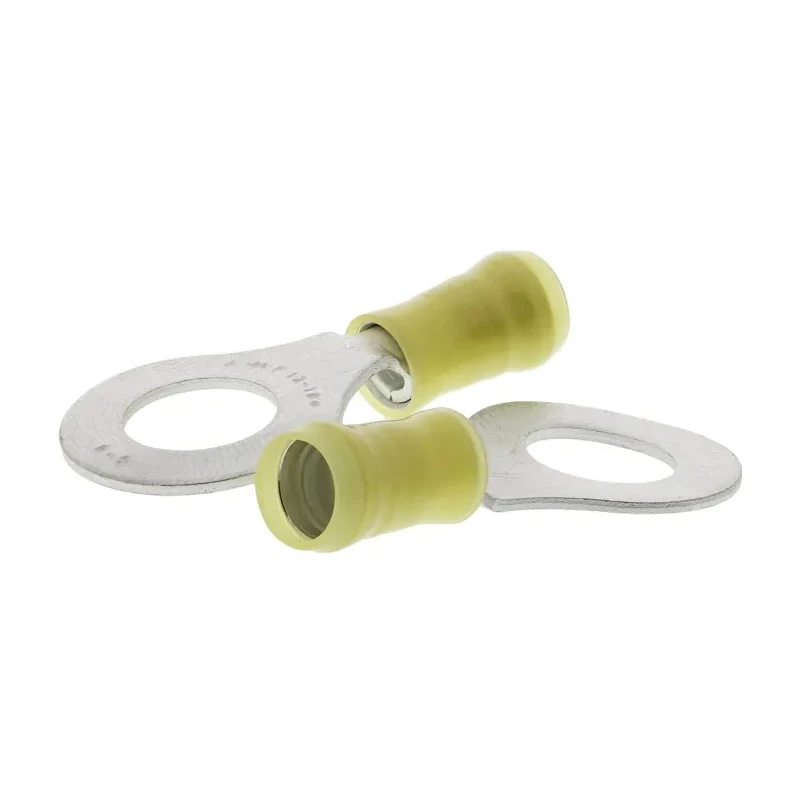

TE Connectivity PIDG Insulated Ring Terminal M10 Stud Size, 12 AWG - 10 AWG Wire Size, Yellow 160138
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| Model | 160138 |
| Insulation | Insulated |
| Overall Length | 40.41mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 19.05mm |
| Inner Ring Diameter | 10.31mm |
| Stud Size | M10 |
| M10 PIDG RING YELLOWBrand | TE Connectivity |
Key Features
- The ring terminal features a high conductivity copper body ensuring optimal electrical performance.
- Insulated with a yellow nylon sleeve for easy wire size identification.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Copper sleeve around the barrel improves wire insulation support and prevents fraying.
- Funnelled wire entry enables fast and secure wire insertion during high-speed production.
- Designed to produce a uniform and reliable crimp when used with specialized tool dies.
- Suitable for varied industrial applications including instrumentation, lighting, power supplies, panel boxes, and aerospace.
- Supports wire sizes from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²) with an overall length of 40.41 mm.
Product Description
TE Connectivity 160138 PIDG Insulated Ring Terminal M10 Stud Size is a premium quality wire crimp terminal engineered for industrial reliability and precision.
Constructed with a high conductivity copper body and barrel, it delivers exceptional electrical connection performance. The nylon insulating sleeve, coloured yellow, provides clear wire size identification and improved insulation properties.
The terminal features serrations within the wire barrel to maximize contact and tensile strength when crimped. A copper sleeve surrounding the wire barrel supports insulation and prevents frayed wires.
The design incorporates a funnelled wire entry that facilitates fast, smooth wire insertion, ideal for high-speed production environments using specialized tooling dies to ensure uniform crimps.
This ring terminal accommodates wire sizes from 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²), with an M10 stud size and an overall length of 40.41 mm. Rated for maximum operating temperatures of up to 105°C, it is suitable for demanding electrical applications.
PIDG ring terminals meet rigorous standards and are well-suited for industrial, transportation, aerospace, electrical power supplies, lighting controls, panel boxes, motors, appliances, and instrument control applications.
The Ring Terminal features a high conductivity copper body ensuring optimal electrical performance. Insulated with a yellow nylon sleeve for easy wire size identification. Serrated wire barrel provides maximum contact and tensile strength after crimping.
Copper sleeve around the barrel improves wire insulation support and prevents fraying. Funnelled wire entry enables fast and secure wire insertion during high-speed production. Designed to produce a uniform and reliable crimp when used with specialized tool dies.
Suitable for varied industrial applications including instrumentation, lighting, power supplies, panel boxes, and aerospace. Supports wire sizes from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²) with an overall length of 40.41 mm.
Operating temperature up to 105°C ensures durable performance in demanding environments. Yellow colour coding simplifies identification and tooling in manufacturing processes. Explore EnvMart’s comprehensive catalog for more TE Connectivity and PIDG terminal solutions designed for high performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²).
The overall length of this ring terminal is 40.41 mm.
The stud size for this terminal is M10.
The contact material is copper, which ensures optimal electrical performance.
It is rated for a maximum operating temperature of up to 105°C.
The insulation material is nylon, which provides clear wire size identification and improved insulation properties.
The serrated wire barrel maximizes contact and tensile strength after crimping, ensuring a reliable connection.
It is suitable for various industrial applications, including instrumentation, lighting, power supplies, and aerospace.
Yes, it features a funnelled wire entry that enables fast and secure wire insertion, ideal for high-speed production environments.
The inner ring diameter is 10.31 mm, and the outer ring diameter is 19.05 mm.
This terminal belongs to the PIDG series by TE Connectivity.
The country of origin for this ring terminal is India.
