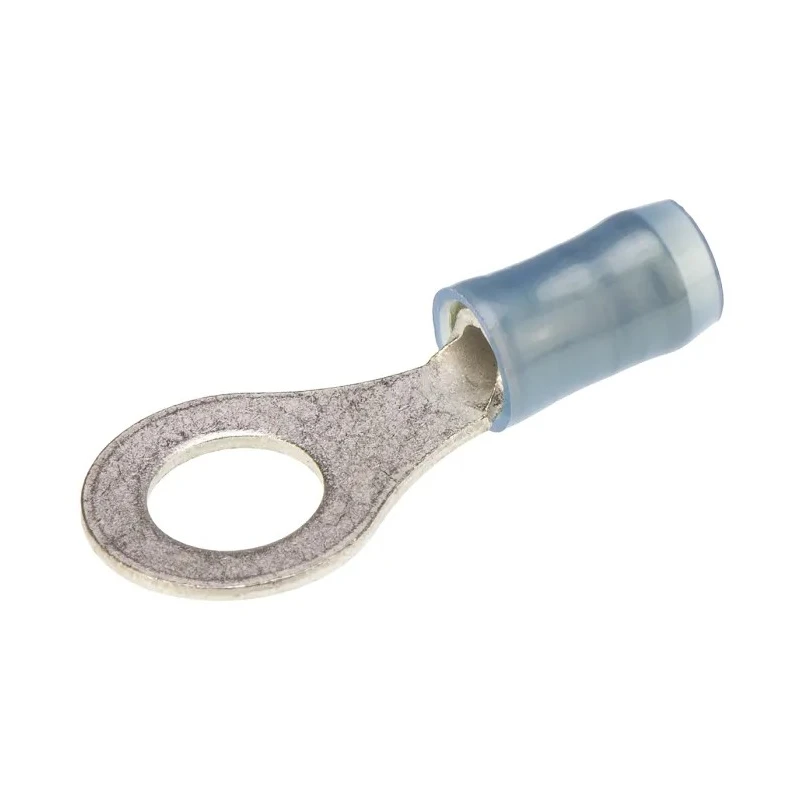

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size Blue 320563

TE Connectivity 320563 PIDG Insulated Ring Terminal M6 Stud Size is designed for reliable and durable electrical connections in demanding environments. The terminal supports wire sizes ranging from 16 AWG to 14 AWG and features a high-conductivity copper body with tin-plated contacts to prevent corrosion. The wire barrel includes serrations that enhance contact quality and tensile strength after crimping.

The terminal insulation is made from durable blue nylon, allowing for clear wire size identification and added protection. A copper sleeve within the barrel improves insulation support and prevents wire fraying. The funnelled wire entry assists in quick and efficient wire insertion, making it ideal for high-speed production environments.

These PIDG (Pre-Insulated Diamond Grip) Ring Terminals are engineered to provide uniform crimps using specialized tool dies, ensuring long-lasting electrical performance. They comply with demanding applications in instrumentation, control systems, lighting, power supplies, panel boxes, transportation, motors, aerospace, and appliances.

High conductivity copper body for excellent electrical performance. Copper sleeve inside barrel enhances insulation and wire support. Serrated barrel ensures strong mechanical and electrical connection. Blue nylon insulation sleeve for wire size identification and protection.

Funnelled wire entry for easy, reliable wire insertion. Designed for uniform, reliable crimps with specialized tooling. Wide range of industrial and aerospace suitable applications.

This product is made in the United States and represents TE Connectivity's commitment to quality and reliability in electronic components. Explore EnvMart’s Electronics Components category for more wire terminals and splices to meet your wiring and connectivity needs.
