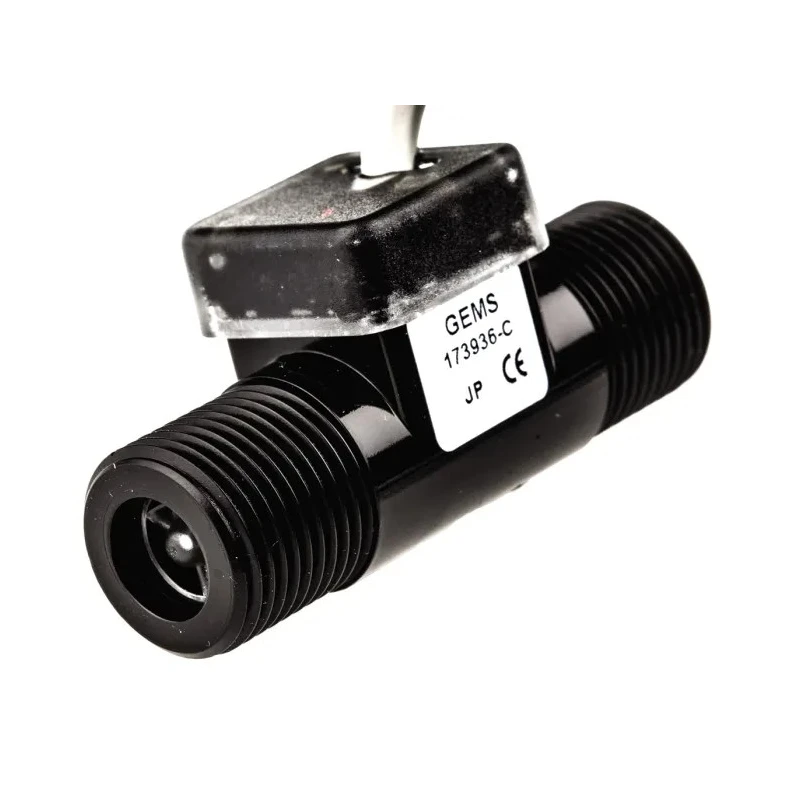

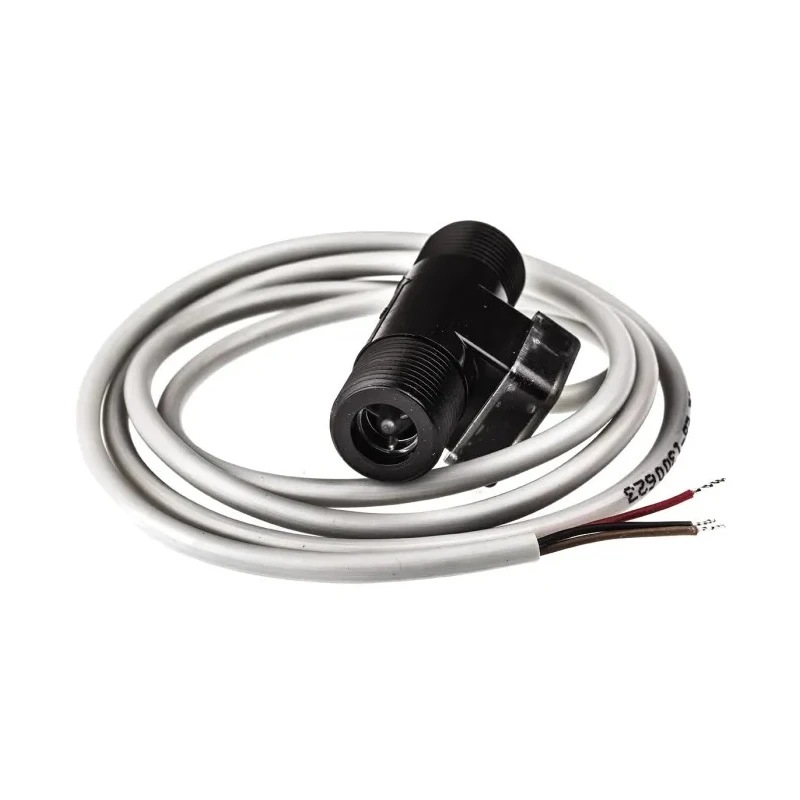

Gems Sensors FT-110 Series Turbine Flow Sensor for Liquid, 0.5L/min Minimum, 5L/min Maximum, Nylon 12 Housing, 24V 173936-C
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Gems Sensors |
| Model | 173936-C |
| Connection Type | 3/8 in BSP |
| Housing Material | Nylon 12 |
| Current Rating | 8mA |
| Series | FT-110 |
| Maximum Pressure | 200psi |
| Minimum Flow Rate | 0.5L/min |
| Device Type | Turbine |
| Maximum Flow Rate | 5L/min |
| Standards/Approvals | ISO 3601, RoHS |
| Maximum Supply Voltage | 24V dc |
| Media Monitored | Liquid |
| Minimum Media Temperature | -20°C |
| Maximum Media Temperature | 100°C |
Key Features
- Measures liquid flow using turbine technology for high accuracy and repeatability.
- Connection type is 3/8 inch BSP with a pipe diameter range of 3/8 inch.
- Operating pressure up to 200 psi and temperature range from -20°C to 100°C.
- Low current consumption at 8mA with a supply voltage range of 5V to 24V DC.
- Constructed with durable Nylon 12 housing material.
- High accuracy with ±3% of reading and 0.5% repeatability.
- Compliant with ISO 3601 and RoHS standards.
- Ideal for replacing dispensing timer systems in industrial and laboratory environments.
Product Description
Gems Sensors 173936-C FT-110 Series turbine flow sensor is engineered for precise measurement of liquid flows ranging from 0.5L/min to 5L/min.
The turbine flow sensor utilizes hall effect technology to provide stable and reliable flow detection unaffected by system pressure changes caused by aged filters. Its standard power and output specifications facilitate easy integration with existing control systems.
The device supports a maximum operating pressure of 200 psi and withstands operating temperatures from -20°C to 100°C, making it adaptable for diverse industrial, laboratory, and water treatment applications. Its connection employs a 3/8 inch BSP fitting compatible with pipes of the same nominal diameter.
Designed for minimal power consumption, the sensor functions on a supply voltage range from 5V to 24V DC drawing only 8mA current. This ensures energy efficiency in continuous monitoring setups.
This model offers excellent accuracy, with a ±3% reading tolerance and 0.5% repeatability, making it a reliable replacement for traditional dispensing timer systems. Compliance with ISO 3601 and RoHS standards underlines its industrial quality and environmental responsibility.
Measures liquid flow using turbine technology for high accuracy and repeatability. Connection type is 3/8 inch BSP with a pipe diameter range of 3/8 inch. Operating pressure up to 200 psi and temperature range from -20°C to 100°C.
Low current consumption at 8mA with a supply voltage range of 5V to 24V DC. Constructed with durable Nylon 12 housing material. High accuracy with ±3% of reading and 0.5% repeatability. Compliant with ISO 3601 and RoHS standards.
Ideal for replacing dispensing timer systems in industrial and laboratory environments.
This turbine flow sensor is widely used in industrial automation, laboratory instrumentation, water and chemical processing, and HVAC systems for precise and dependable flow monitoring. EnvMart provides comprehensive categories for Sensors including Flow Sensors, facilitating product discovery within automation and control gear segments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures liquid flow rates from 0.5 liters per minute (L/min) to a maximum of 5 L/min.
The maximum operating pressure for this turbine flow sensor is 200 psi.
It operates on a supply voltage range of 5V to 24V DC.
The sensor has an accuracy of ±3% of the reading and a repeatability of 0.5%.
It features a 3/8 inch BSP connection type, compatible with pipes of the same diameter.
The housing material of this turbine flow sensor is Nylon 12.
It can monitor liquids within a temperature range of -20°C to 100°C.
This model draws a current of 8mA during operation.
Yes, it complies with ISO 3601 and RoHS standards.
It is suitable for industrial automation, laboratory instrumentation, water and chemical processing, and HVAC systems.
The country of origin for this product is Switzerland.
