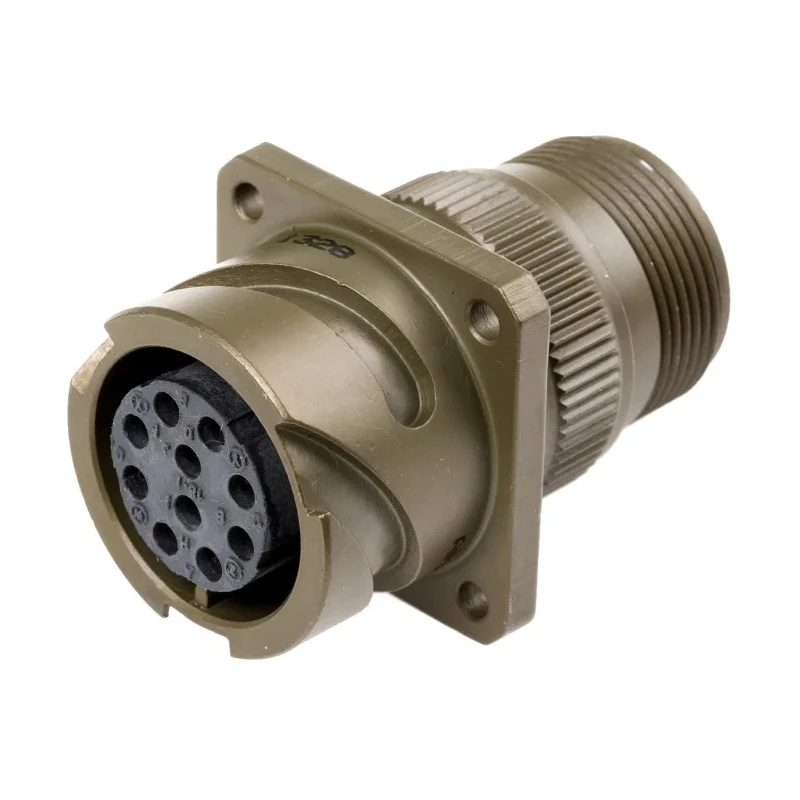

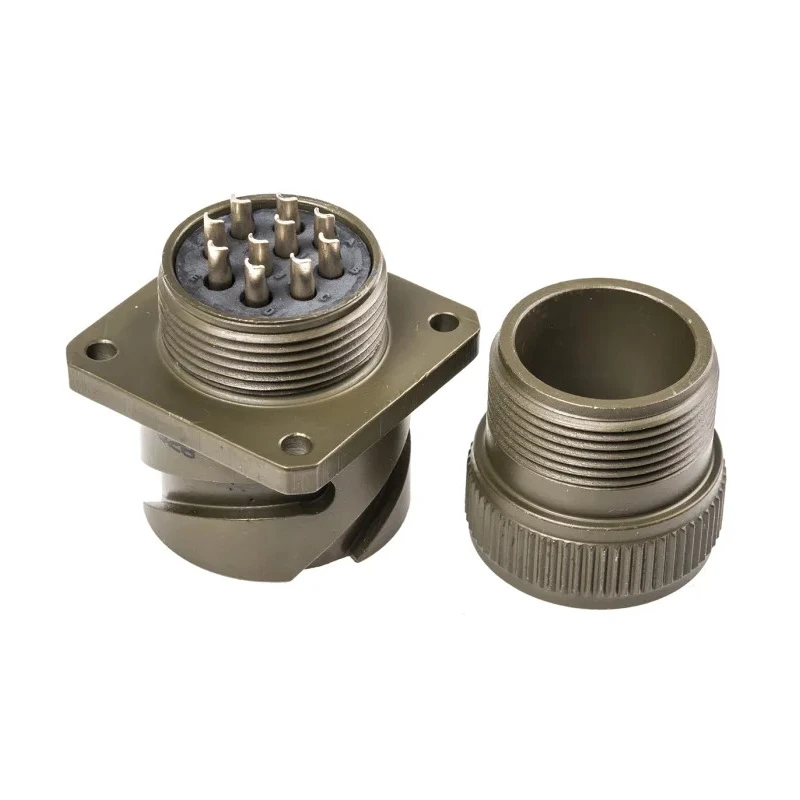

Amphenol Limited MIL Spec Circular Connector Brass Straight 10 Way Wall Mount Female Contacts 500V AC 13A 97B-3100A-18-1S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 13A |
| Model | 97B-3100A-18-1S |
| Mount Type | Wall Mount |
| Housing Material | Aluminium Alloy |
| Contact Material | Brass |
| Series | 97B |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 18 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Features 10 female contacts with brass material and silver plating for optimal conductivity.
- Designed with a straight orientation and olive drab cadmium plated aluminium alloy housing.
- Supports a voltage rating of 500V AC and current rating of 13A for demanding conditions.
- Wall mount configuration with bayonet mating type ensures secure and quick installation.
- Operates reliably within temperature range of -55°C to 125°C with strain relief support.
- Complies with MIL-DTL-5015 military standard, suitable for harsh environments.
- Termination type is solder bucket contacts suitable for stable cable mounting.
- Constructed with aluminium alloy shell, brass contacts, and polychloroprene insulator for durability.
Product Description
Amphenol Limited 97B-3100A-18-1S MIL Spec Circular Connector is a 10 way female contact Circular Connector, designed for wall mount applications. It features a brass straight connector body with an olive drab cadmium plated aluminium alloy shell for robust protection and longevity in industrial and military environments.
This connector is tailored to meet MIL-DTL-5015 military specifications, ensuring performance under extreme conditions with operating temperatures ranging from -55°C to 125°C. The 10 female contacts with brass material and silver plating provide excellent electrical conductivity and corrosion resistance.
The straight orientation and bayonet mating type couple securely with compatible connectors, allowing efficient installation and maintenance. The strain relief feature adds additional protection to the cable termination, benefiting long-term usage and stability.
The connector supports a voltage rating of 500V AC and a maximum current of 13A, making it suitable for power and signal applications in defense, aerospace, and industrial sectors. Its solder bucket termination type facilitates soldering connections for reliable electrical continuity.
Housing material is aluminium alloy finished with an olive drab cadmium plating for environmental resistance, complemented by polychloroprene insulators. The olive color and MIL standard compliance emphasize its suitability for military and rugged industrial uses.
Manufactured to high-quality standards in India, this connector set is durable and provides a dependable interface for critical electronic systems requiring secure and high-performance electrical connections.
Features 10 female contacts with brass material and silver plating for optimal conductivity. Designed with a straight orientation and olive drab cadmium plated aluminium alloy housing. Supports a voltage rating of 500V AC and current rating of 13A for demanding conditions.
Wall mount configuration with bayonet mating type ensures secure and quick installation. Operates reliably within temperature range of -55°C to 125°C with strain relief support. Complies with MIL-DTL-5015 military standard, suitable for harsh environments.
Termination type is solder bucket contacts suitable for stable cable mounting. Constructed with aluminium alloy shell, brass contacts, and polychloroprene insulator for durability. Backed by Indian country of origin, ensuring quality manufacturing standards.
Explore Amphenol Limited connectors at EnvMart for reliable industrial and military-grade electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 500V AC and a current rating of 13A, making it suitable for power and signal applications in various sectors.
The connector features a brass contact material with silver plating for optimal conductivity, an aluminium alloy housing, and polychloroprene insulators for durability.
It operates reliably within a temperature range of -55°C to 125°C, suitable for extreme conditions.
This model has 10 female contacts, designed for secure electrical connections.
The termination type is solder bucket contacts, which are suitable for stable cable mounting.
It features a bayonet mating type, which ensures secure and quick installation with compatible connectors.
Yes, it complies with the MIL-DTL-5015 military standard, making it suitable for harsh environments.
The housing is olive drab cadmium plated aluminium alloy, providing robust protection and environmental resistance.
This connector is designed with a straight orientation, facilitating easy installation in wall mount applications.
The shell size is designated as size 18, which is standard for this type of connector.
It is manufactured in India, ensuring adherence to quality manufacturing standards.
This connector is suitable for applications in defense, aerospace, and industrial sectors, particularly where secure and high-performance electrical connections are required.
