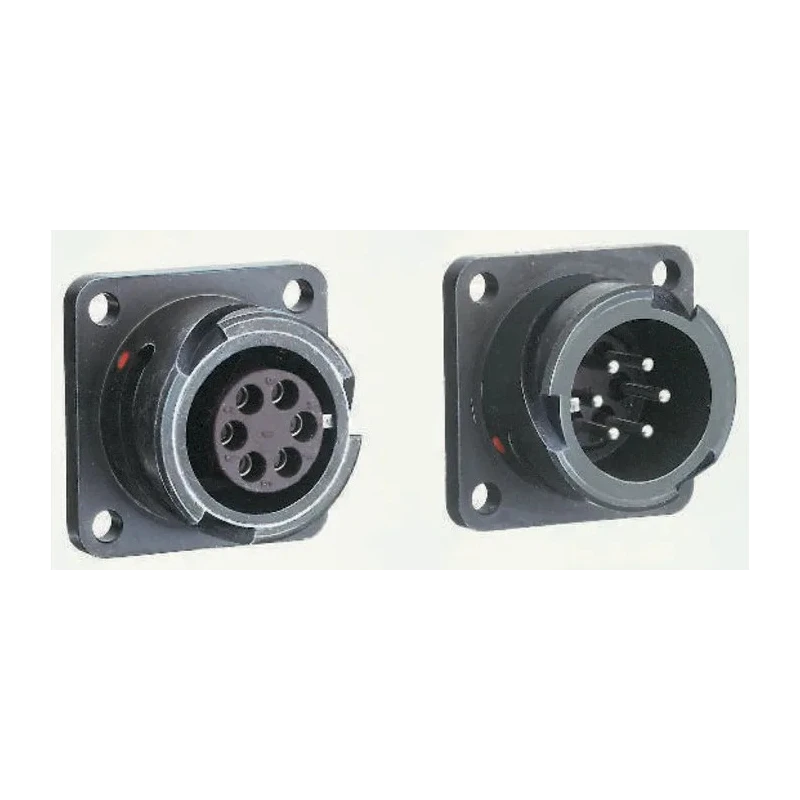

Amphenol Limited MIL Spec Circular Connector Brass Straight 14 Way Wall Mount 500V AC 13A 97B-3100A22-19P
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 13A |
| Model | 97B-3100A22-19P |
| Mount Type | Wall Mount |
| Housing Material | Aluminium Alloy |
| Contact Material | Brass |
| Series | 97B |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 22 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Designed with 14 male contacts for reliable electrical connection.
- Operates safely at 500V AC voltage and maximum 13A current.
- Features bayonet type mating allowing secure and easy connection.
- Constructed with aluminium alloy housing and olive drab cadmium plated shell for durability.
- Compatible with MIL-DTL-5015 military standard ensuring high reliability.
- Supports operating temperatures ranging from -55°C to 125°C for harsh environments.
- Includes strain relief for enhanced cable protection and longevity.
- Termination type is solder bucket contacts for secure wiring.
Product Description
Amphenol Limited 97B-3100A22-19P MIL Spec Circular Connector is a high-quality, brass straight, 14 way wall mount connector designed for demanding industrial and military applications. It supports a voltage rating of 500V AC and a current rating of 13A, making it suitable for reliable power and signal transmission in rugged environments.
This connector features a bayonet locking mechanism conforming to MIL-DTL-5015 standard ensuring secure and vibration-resistant connections. The aluminium alloy housing with olive drab cadmium plating provides enhanced corrosion resistance and mechanical strength.
The 14 contacts are male type, made from brass with silver plating for excellent conductivity and durability. The connector’s termination style is solder bucket contacts which allow secure cable connections. It is designed for wall mount installation with strain relief to protect cables from mechanical stress.
Operating temperature ranges from -55°C to 125°C make it suitable for extreme environments such as defense, aerospace, automotive, and industrial automation. The olive colour and military specification finish ensure compatibility with existing military hardware systems and standards.
Typical applications include electronic equipment, power systems, control panels, and instrumentation requiring robust and reliable circular connectors. Designed with 14 male contacts for reliable electrical connection. Operates safely at 500V AC voltage and maximum 13A current.
Features bayonet type mating allowing secure and easy connection. Constructed with aluminium alloy housing and olive drab cadmium plated shell for durability. Compatible with MIL-DTL-5015 military standard ensuring high reliability.
Supports operating temperatures ranging from -55°C to 125°C for harsh environments. Includes strain relief for enhanced cable protection and longevity. Termination type is solder bucket contacts for secure wiring. Standard size 22 shell with olive colour coating for military specifications.
This product is an integral component for industrial, military, laboratory, and aerospace environments where dependable Circular Connectors are paramount. Browse EnvMart’s Electronics Components category for more quality connectors from Amphenol Limited and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates safely at a voltage rating of 500V AC and a maximum current rating of 13A.
This model features 14 male contacts made from brass with silver plating for excellent conductivity.
It supports operating temperatures ranging from -55°C to 125°C, making it suitable for extreme environments.
The termination type is solder bucket contacts, allowing for secure wiring connections.
Yes, it is compatible with the MIL-DTL-5015 military standard, ensuring high reliability for military applications.
The housing is constructed from aluminium alloy, providing enhanced corrosion resistance and mechanical strength.
It features a bayonet type mating mechanism, allowing for secure and easy connections.
The shell size is standard size 22, designed to meet military specifications.
The shell is olive drab cadmium plated, which enhances its durability and corrosion resistance.
It is designed for wall mount installation, featuring strain relief for enhanced cable protection.
Typical applications include electronic equipment, power systems, control panels, and instrumentation requiring robust connections.
The connector gender is female, designed to mate with the male contacts of compatible connectors.
