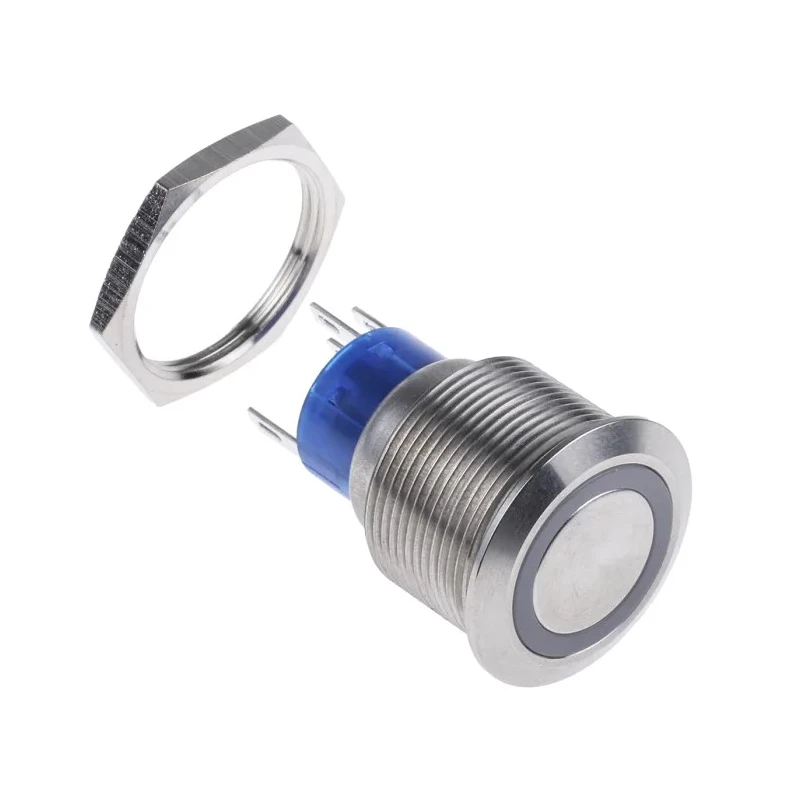

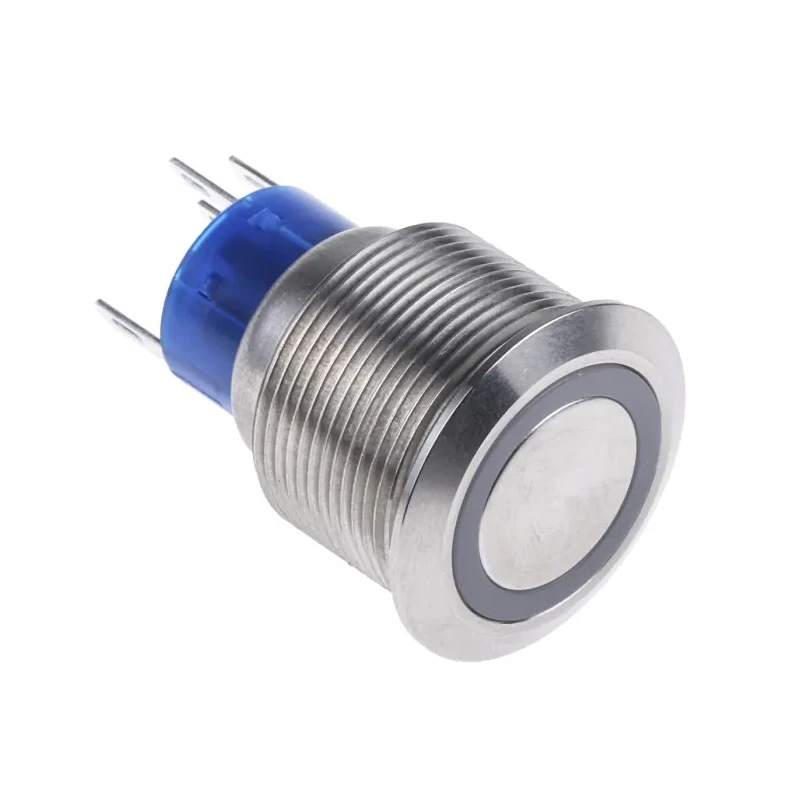

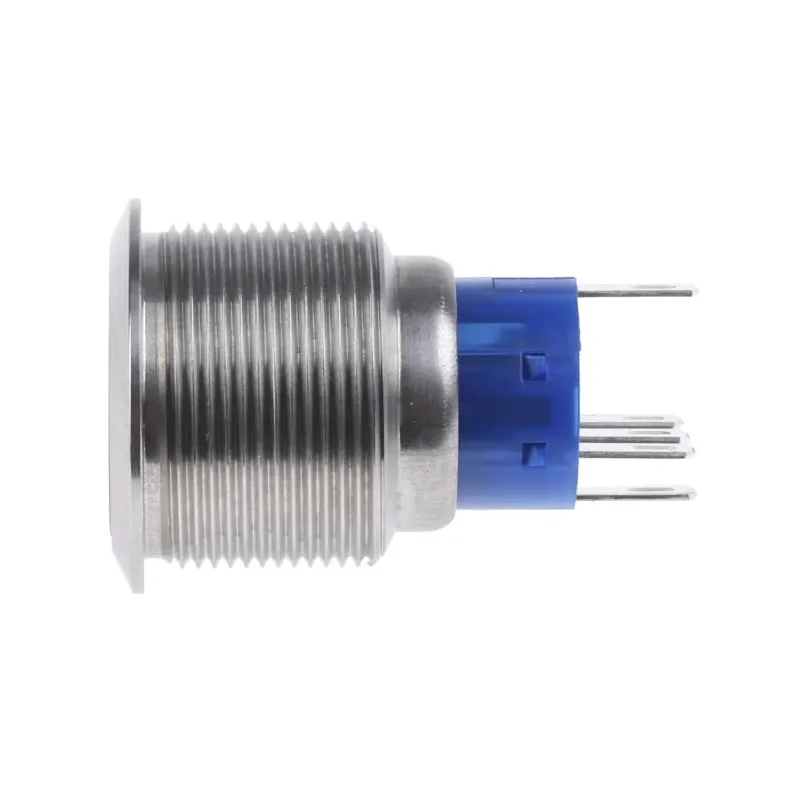

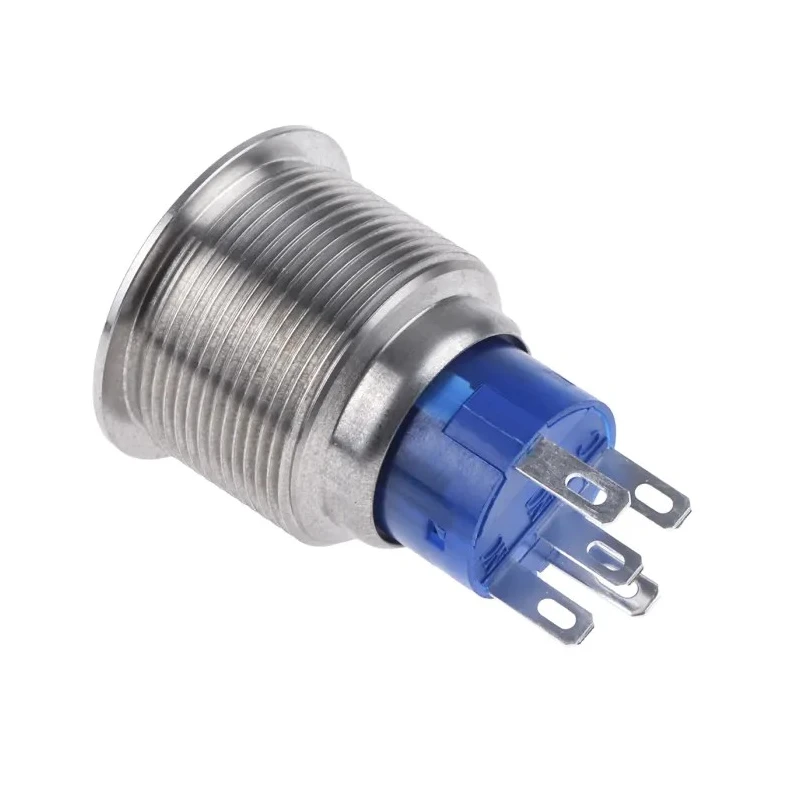

RS PRO Illuminated Momentary Push Button Switch Panel Mount 22.2 mm Cutout SPDT Red LED IP67 36V DC 250V AC MPB22

RS PRO MPB22 Illuminated Momentary Push Button Switch is a robust panel-mount switch designed for versatile industrial applications. It features a 22.2 mm panel cutout, ensuring compatibility with standard panel setups. The SPDT (Single Pole Double Throw) contact configuration offers flexible control options, while the red LED illumination provides clear visual feedback on operational status. The IP67 rating certifies this switch for excellent resistance to dust and water, making it suitable for demanding industrial environments.

This switch supports contact voltages of up to 36 V DC and 250 V AC, and a contact current of 5A AC. Its flat actuator style enhances usability, providing smooth and reliable momentary operation. The operational temperature range from -20°C to 70°C enables deployment in various environmental conditions.

Constructed with high-quality materials, RS PRO metal switches offer lightweight, high strength, corrosion resistance, and efficient heat dissipation. These features collectively contribute to long life expectancy and reliable performance in applications such as industrial control instruments, medical equipment, security monitoring, vehicle peripherals, audio-visual equipment, and energy storage systems.

This push button switch provides reliable momentary operation for industrial controls. Panel mount design fits a 22.2 mm cutout size for easy installation. Features a single pole double throw (SPDT) contact configuration.

Equipped with red LED illumination for clear status indication. The switch is IP67 rated, ensuring protection against dust and water ingress. Operates safely up to 36 V DC and 250 V AC contact voltages. Designed with a flat actuator style for effective user interface.

Operating temperature range from -20°C to 70°C for versatile environmental use. Ideal for use in industrial machines, medical devices, security systems, vehicle peripherals, and audiovisual equipment.

This product expands the options available within the MPB series with its emphasis on durability and illumination, supporting applications that require vandal resistance and water/dust protection in public or harsh industrial settings.
