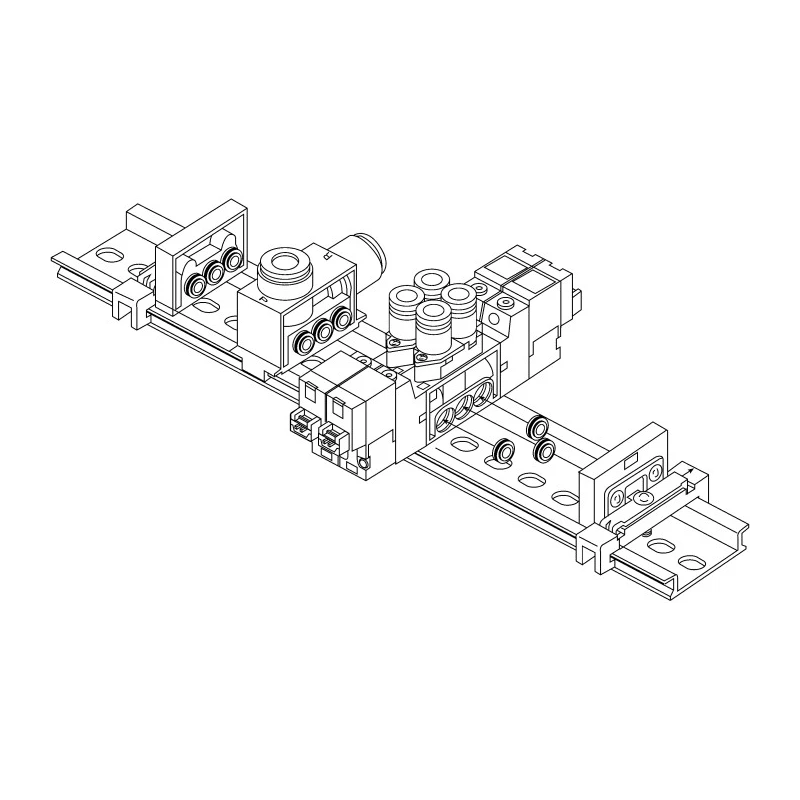

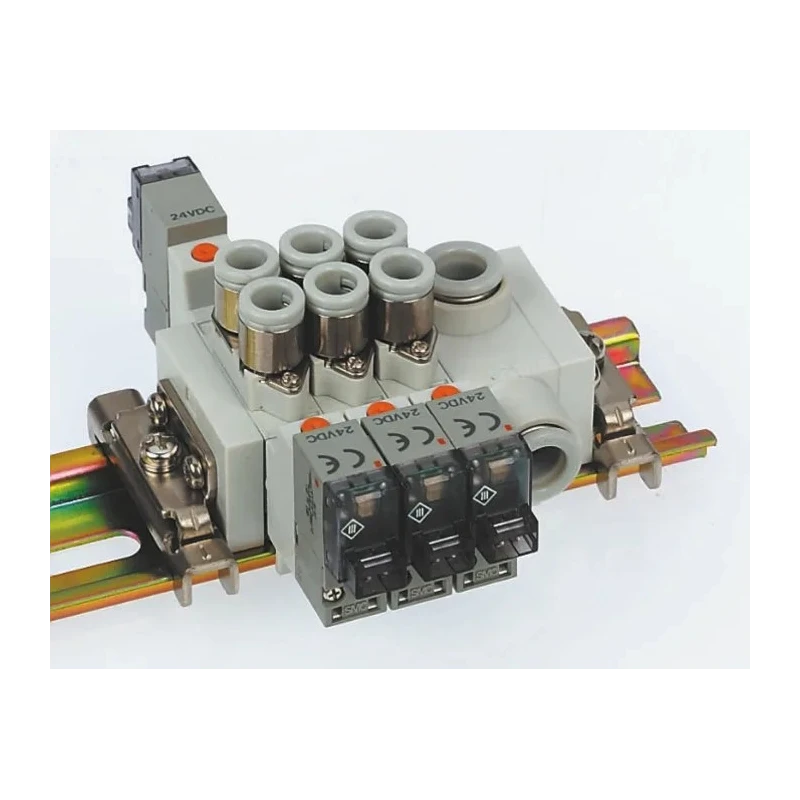

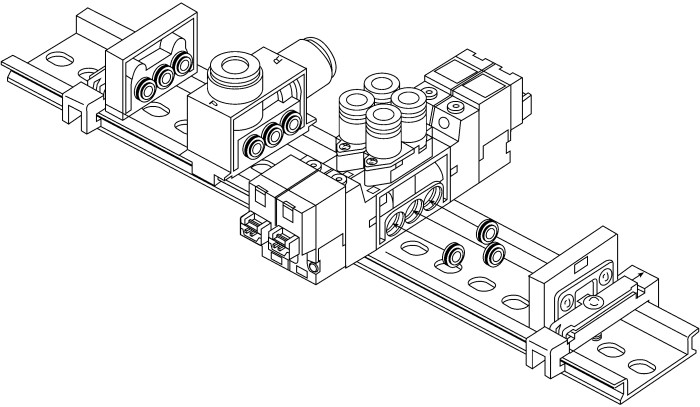

SMC Pneumatic Solenoid Valve 5/2 Solenoid Rc Port Size 6 mm, Double Solenoid, DIN Rail Mount, 24V dc SY3000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Body Material | Die Cast Zinc |
| Maximum Operating Pressure | 0.7 Mpa |
| Model | SY3000 |
| Mount Type | DIN Rail |
| Series | SY3000 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Port Type | One-Touch Fitting |
| Number of Positions | 2 |
| Port Size | 6 mm |
| Seal Material | Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 196NL/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | Rc |
| Minimum Pilot Pressure | 0.15MPa |
| Valve Function | 5/2 |
| Solenoid Type | Double |
| Solenoid Power Consumption | 0.4W |
| SMC Pneumatic Solenoid Valve - 5/2 Solenoid Rc SY5000 Series 24V dcBrand | SMC |
Key Features
- The valve features a 5-port, 2-position design for directional control.
- Its body is made from durable die cast zinc material for long-lasting performance.
- Mounting is facilitated via a standard DIN rail for easy installation.
- The valve offers a maximum operating pressure of 0.7 MPa and maximum flow rate of 196 NL/min.
- It supports a minimum operating temperature of -10°C and maximum operating temperature of 50°C.
- Solenoid power consumption is low at 0.4 W, optimizing energy efficiency.
- The valve uses rubber seals ensuring good sealing and durability.
- Designed for fast response with a compact, lightweight body suitable for pneumatic circuits.
Product Description
SMC SY3000 SY3260-5LOU-C6-Q pneumatic solenoid valve is a versatile 5/2 valve designed for precise directional control in pneumatic systems. It features a double solenoid actuation type powered at 24V dc, ensuring reliable switching and operation.
The valve's body material is high-quality die cast zinc which provides robustness and corrosion resistance. With a port size of 6 mm and Rc connection thread standard, it fits standard pneumatic setups using one-touch fittings for efficient installation.
Mounting on DIN rails allows for compact and modular integration in control panels. The valve is rated for maximum operating pressure of 0.7 MPa and delivers a maximum flow rate of 196 NL/min, making it ideal for medium flow pneumatic applications.
The operating temperature range from -10°C to 50°C and pilot pressure from 0.15 MPa to 0.7 MPa makes it suitable for diverse industrial environments. It consumes only 0.4 W of power, contributing to energy-efficient operation.
The rubber seal material ensures tight sealing to prevent leaks and prolong valve life. This valve meets RoHS compliance and does not have hazardous area certification, indicating safe usage in general industrial settings.
The valve operates using compressed filtered air, suitable for lubricated or non-lubricated pneumatic systems. Its compact and lightweight design allows easy configuration and expansion within valve systems. The product is supplied complete with sealing discs for reliable operation.
Standard DIN rail mounting is included for convenient setup and serviceability. Low power consumption enhances suitability for continuous industrial applications.
This SMC pneumatic solenoid valve is widely used in industrial automation, manufacturing, HVAC pneumatic controls, laboratory testing equipment, and fluid power management systems. It provides precise and fast control of pneumatic actuators and directional flow with high reliability.
Explore EnvMart’s extensive range of Pneumatic Solenoid Valves and related pneumatic control components for all your industrial automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.7 MPa.
The solenoid power consumption is 0.4 W, which contributes to its energy efficiency.
It has a maximum flow rate of 196 NL/min, making it suitable for medium flow pneumatic applications.
The valve operates within a temperature range of -10°C to 50°C.
This valve supports DIN rail mounting for easy installation and modular integration.
The port size is 6 mm, and it features a one-touch fitting type for efficient installation.
The body is made from die cast zinc, and it uses rubber seals to ensure good sealing and durability.
It features a 5-port, 2-position design for directional control.
The valve uses a double solenoid actuation type for reliable switching and operation.
Yes, this model meets RoHS compliance, indicating it adheres to environmental safety standards.
The minimum pilot pressure is 0.15 MPa, with a maximum operating pressure of 0.7 MPa.
