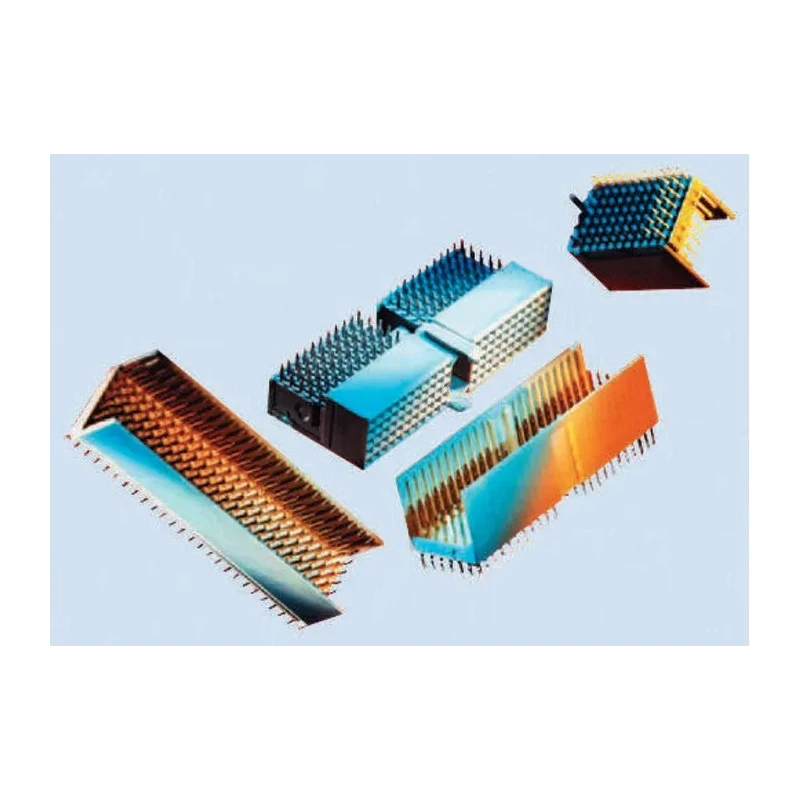

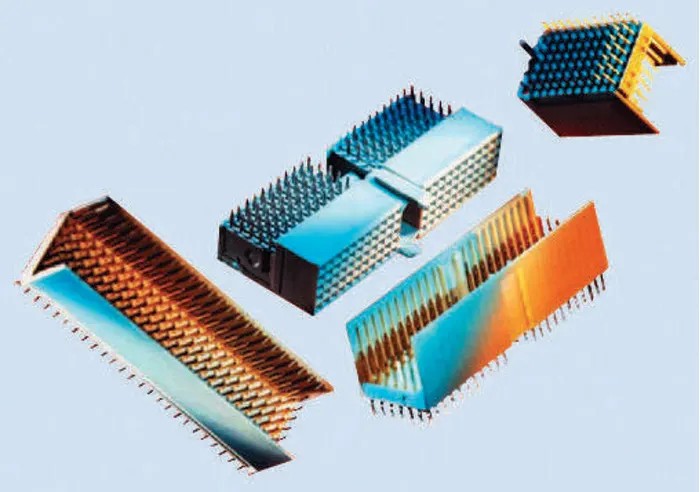

HARTING Hard Metric Type A Backplane Connector Straight Male 110 Contacts 2mm Pitch 17011102201
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass, Thermoplastic Resin |
| Contact Material | Copper Alloy |
| Series | har-bus HM |
| Termination Type | Press-in |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 5 |
| Number of columns | 22 |
| Pitch | 2mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 110 |
| Contact Gender | Male |
| Connector Gender | Male |
| Backplane Connector Type | Hard Metric Type A |
Key Features
- Designed for high speed industrial and electronic applications.
- Features 110 contacts arranged in 22 columns and 5 rows.
- Straight male orientation ensures reliable cable connection.
- Mount type is through hole with press-in termination.
- Housing made of fiberglass and thermoplastic resin for durability.
- Contact plating is gold over nickel to ensure conductivity and corrosion resistance.
- Operates reliably between -55°C and 125°C temperature range.
- Compact design with 2 mm pitch meets IEC 61076-4-101 standards.
Product Description
HARTING 17011102201 is a Hard Metric Type A Backplane Connector designed for electronic components requiring reliable high-speed data and power transmission.
This connector features a straight male orientation with 110 contacts organized into 22 columns and 5 rows, each with a 2 mm pitch, suitable for compact and modular electronic assemblies.
The housing is constructed from durable fiberglass and thermoplastic resin, ensuring mechanical stability and resilience in harsh industrial environments. Contacts use copper alloy material plated in gold over nickel to provide excellent electrical conductivity and corrosion resistance.
It utilizes a press-in termination type with through hole mount technology for secure PCB installation.
The connector is rated for a current of 1 Ampere and operates effectively within temperature ranges from -55°C to 125°C, complying with the requirements for demanding industrial and laboratory environments.
This product series, har-bus HM, supports transfer rates suitable for 32/64 bit data buses and is appropriate for use in Compact PCI, VME bus, and several proprietary system applications.
Designed for high speed industrial and electronic applications. Features 110 contacts arranged in 22 columns and 5 rows. Straight male orientation ensures reliable cable connection. Mount type is through hole with press-in termination.
Housing made of fiberglass and thermoplastic resin for durability. Contact plating is gold over nickel to ensure conductivity and corrosion resistance. Operates reliably between -55°C and 125°C temperature range. Compact design with 2 mm pitch meets IEC 61076-4-101 standards.
Ideal for compact PCI, VME bus, and proprietary backplane applications. Manufactured in Germany with series har-bus HM.
This backplane connector is well-suited for electronic, industrial, manufacturing, and laboratory applications where secure and high-performance interconnectivity is critical. It facilitates efficient production and repair workflows by offering consistent and standard-compliant connections.
Explore more backplane connectors and related products in the Electronics Components category on EnvMart.
Explore more products in our Electronic Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 1 Ampere.
It operates reliably within a temperature range of -55°C to 125°C.
The connector features 110 contacts arranged in 22 columns and 5 rows, with a 2 mm pitch.
This model utilizes a press-in termination type with through hole mount technology.
The housing is made of fiberglass and thermoplastic resin, providing mechanical stability.
The contacts are plated with gold over nickel to ensure conductivity and corrosion resistance.
Yes, it meets the IEC 61076-4-101 standards for compact designs.
The connector features a straight male orientation for reliable cable connection.
This product is manufactured in Germany.
It belongs to the har-bus HM series, suitable for high-speed applications.
It is suitable for applications including Compact PCI, VME bus, and proprietary systems.
The connector features male contacts.
