TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG 170365-1

Free Delivery in India | Lowest Global Shipping Charges

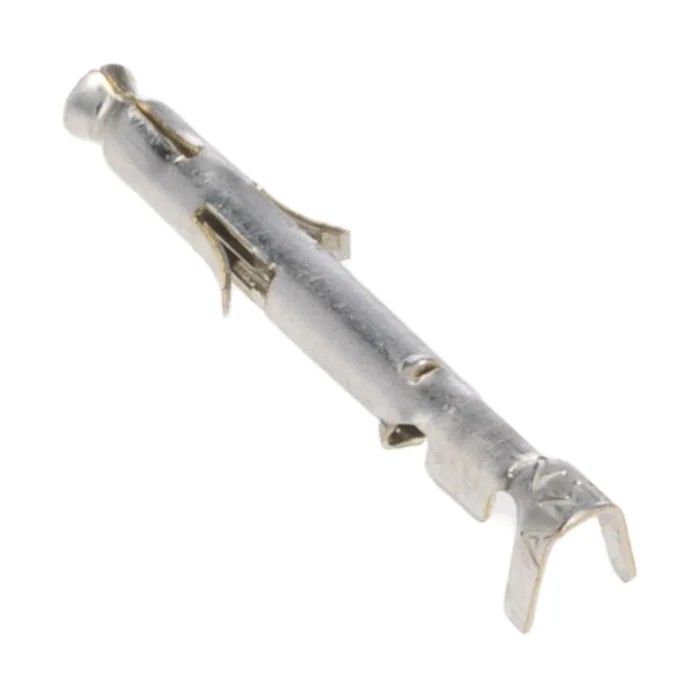

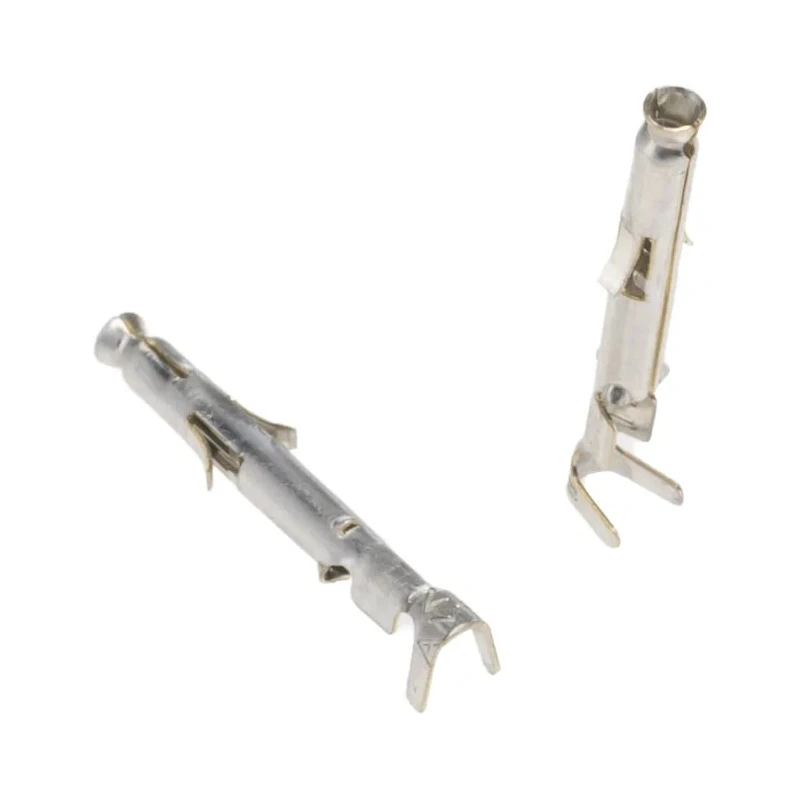

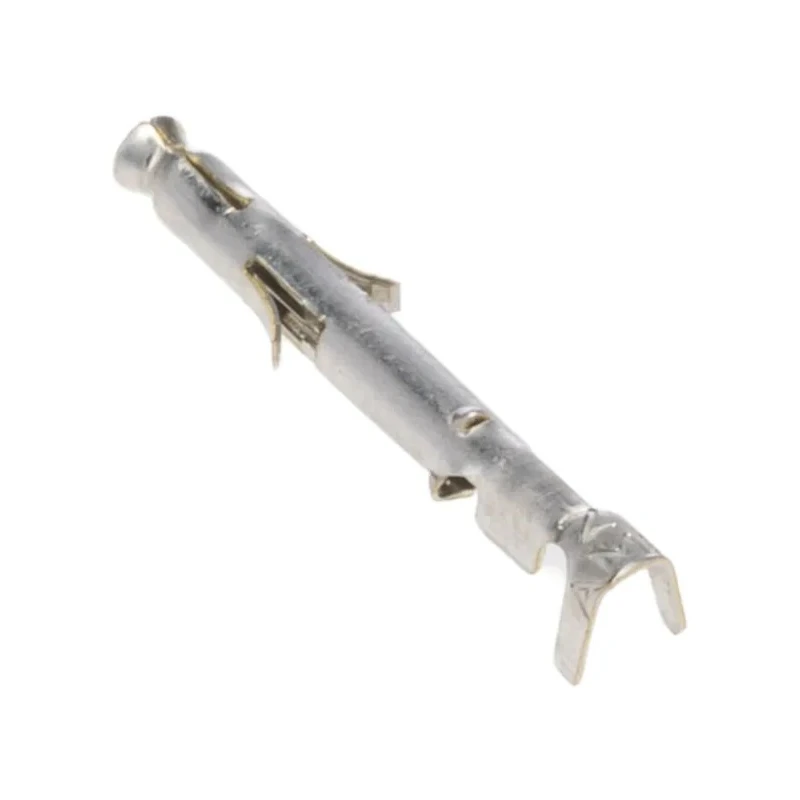

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG 170365-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG 170365-1
Brand: TE Connectivity
SKU: 117219
Price: 0.15 USD
Availability: InStock



Category Electronic Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	7A
Model	170365-1
Gender	Female
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ

Key Features

The terminal is designed for use with Mini-Universal MATE-N-LOK connector housings.
Constructed with brass material and tin plating for durability and corrosion resistance.
Supports wire sizes from 0.1 mm² (26 AWG) to 0.35 mm² (22 AWG).
Maximum contact resistance is 10 milliohms ensuring efficient current flow.
Operates reliably between -20°C to 105°C for various environmental conditions.
Ensures secure wire termination using crimp style termination.
Suitable for applications across consumer electronics, commercial, HVAC, lighting, medical, and security sectors.
This product meets no specific certifications but offers dependable quality consistent with TE Connectivity standards.

Product Description

TE Connectivity 170365-1 female crimp terminal is engineered for high-reliability electrical connections in Mini-Universal MATE-N-LOK connector systems, suitable for wire sizes ranging from 26 AWG to 22 AWG and rated for a current of 7 amperes. It features a brass contact with tin plating to resist corrosion and maintain consistent conductivity.

This crimp terminal operates effectively over a wide temperature range from -20°C to 105°C, making it suitable for various industrial and commercial environments. Its termination method utilizes a crimp style to ensure a secure and stable wire connection, compatible with Mini-Universal MATE-N-LOK connector housings.

Common use cases include consumer electronics, commercial equipment, HVAC systems, power supplies, portable devices, lighting fixtures, medical apparatus, and security hardware. The product is designed to facilitate wire-to-wire connections with a rated operating voltage of up to 600 Vac/dc and a maximum contact resistance of 10 milliohms, ensuring minimal loss and high efficiency.

The terminal supports a current rating of 7A and voltage rating up to 600 Vac/dc. Constructed from brass with a pre-tin plated finish for optimal durability and corrosion resistance. Compatible exclusively with Mini-Universal MATE-N-LOK connector housing for cohesive system integration.

Supports minimum wire size of 0.1 mm² (26 AWG) and maximum wire size of 0.35 mm² (22 AWG). Operating temperature range from -20°C to 105°C ensures adaptability across diverse environments. Email and telephone wiring, instrumentation and control systems can benefit from the robust design.

The crimp termination technique provides secure mechanical and electrical contact.

TE Connectivity's comprehensive range of Mini-Universal MATE-N-LOK contacts and crimp tooling supports industrial, laboratory, manufacturing, and HVAC applications, offering versatility and reliable connectivity for power and electronic components.

For users seeking proven reliability in small form factor connectors for wire-to-wire applications, the 170365-1 female crimp terminal is an excellent choice. Browse the Electronics & Electricals category at EnvMart for additional connectors and accessories from TE Connectivity.
