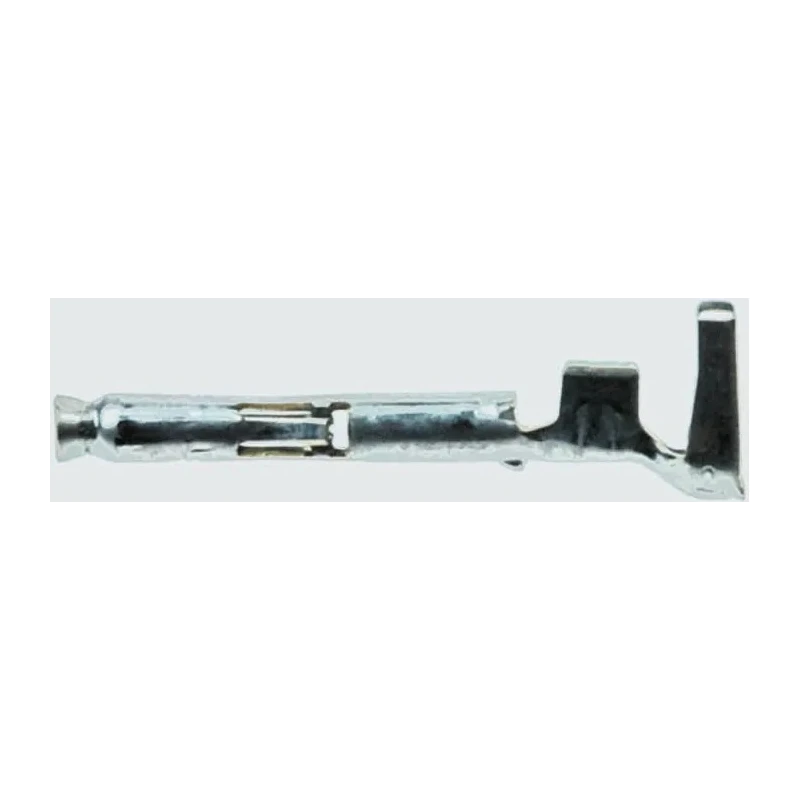

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current Tin Plated Phosphor Bronze Contact 170361-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170361-4 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Supports a maximum current rating of 7A.
- Contact plating is made with high-quality tin ensuring reliable conductivity.
- Contact material consists of phosphor bronze providing strength and corrosion resistance.
- Minimum wire size supported is 26 AWG (0.1 mm²).
- Maximum wire size supported is 22 AWG (0.35 mm²).
- Maximum contact resistance is rated at 10 milliohms for optimal electrical performance.
- Termination is by crimping ensuring secure mechanical and electrical connection.
- Operates safely within a temperature range of -20°C to 105°C.
Product Description
TE Connectivity 170361-4 is a Mini-Universal MATE-N-LOK Series Female Crimp Terminal engineered for electronic applications requiring compact and reliable wire to connector interfaces. It supports crimp connections for wire sizes from 26 AWG minimum up to 22 AWG maximum with a current rating of 7A, suitable for signal and low power delivery in PCB connectors.
The contact is constructed from phosphor bronze, a robust alloy that combines mechanical strength with corrosion resistance, extending the terminal's operational life. Tin plating of the contact further ensures excellent conductive properties and protection against oxidation.
The terminal supports a maximum contact resistance of 10 milliohms, maintaining low electrical losses during signal or power transmission. Designed with crimp termination, the product offers a secure mechanical and electrical connection suitable for automated and manual assembly processes.
Environmental operating temperature ranges from -20°C to 105°C, allowing deployment in a variety of industrial, commercial, and consumer electronics applications including industrial automation, instrumentation, telecommunications, and control systems.
Supports a maximum current rating of 7A. Contact plating is made with high-quality tin ensuring reliable conductivity. Contact material consists of phosphor bronze providing strength and corrosion resistance. Minimum wire size supported is 26 AWG (0.1 mm²).
Maximum wire size supported is 22 AWG (0.35 mm²). Maximum contact resistance is rated at 10 milliohms for optimal electrical performance. Termination is by crimping ensuring secure mechanical and electrical connection. Operates safely within a temperature range of -20°C to 105°C.
No specific certifications or approvals are indicated for this product.
This terminal is part of the Mini-Universal MATE-N-LOK Connector System by TE Connectivity, designed for efficient, compact interconnections in complex electronic assemblies. It is ideal for professional use in electronic manufacturing, repair, and prototyping environments requiring durable and reliable connectors.
Explore EnvMart’s comprehensive selection of TE Connectivity Electronic Connectors and related components for high-quality and performance solutions tailored to your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this terminal is 7A.
This terminal supports a minimum wire size of 26 AWG (0.1 mm²) and a maximum wire size of 22 AWG (0.35 mm²).
The contact material consists of phosphor bronze, which provides strength and corrosion resistance.
Termination is achieved through crimping, ensuring a secure mechanical and electrical connection.
The maximum contact resistance is rated at 10 milliohms, which helps maintain low electrical losses.
This terminal operates safely within a temperature range of -20°C to 105°C.
It is designed for use with the Mini-Universal MATE-N-LOK Connector Housing.
The country of origin for this terminal is India.
This terminal is suitable for various applications including industrial automation, instrumentation, telecommunications, and control systems.
The tin plating ensures reliable conductivity and provides protection against oxidation.
This terminal is part of the Mini-Universal MATE-N-LOK Series by TE Connectivity.
It offers a secure connection suitable for both automated and manual assembly processes.
